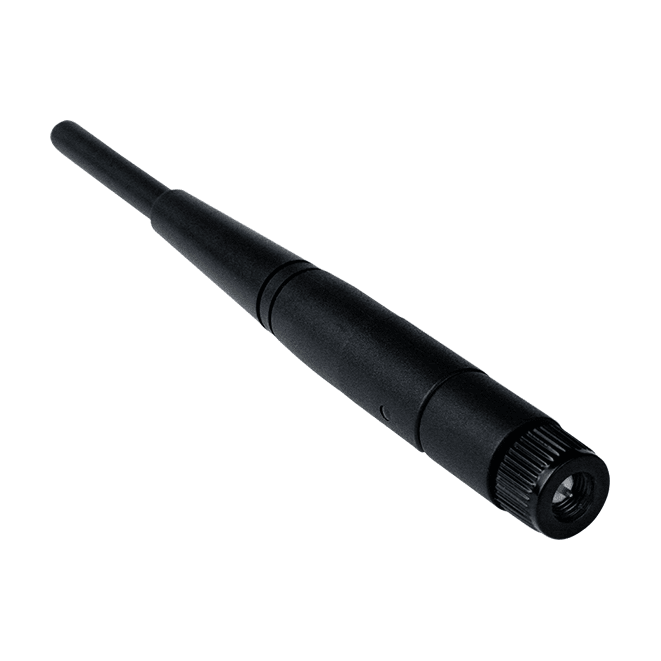

ANT-421-02 GSM/GPRS Omni-directional Dipole Antenna, SMA Male Plug
Omni-directional dipole antenna with an SMA male plug connector for GSM/GPRS links, covering 824 to 960 MHz and 1710 to 2170 MHz with an operating range of -30 °C to +85 °C.
- Dipole omni-directional antenna with SMA male (plug) connector
- Covers 824 to 960 MHz and 1710 to 2170 MHz bands
- Gain of -0.9 ± 0.7 dBi at 890 MHz and +1.7 ± 0.7 dBi at 1930 MHz
- Operating temperature range of -30 °C to +85 °C
- Compact body, φ13 x 136 mm, weight 17 ± 2 g
- RoHS and WEEE certified
15,00 € pro Stück
| 1–9 Stück | 15,00 € | |
|---|---|---|
| 10–30 Stück | 15,00 € | |
| ab 31 Stück | 15,00 € |
Produktinformationen "ANT-421-02 GSM/GPRS Omni-directional Dipole Antenna, SMA Male Plug"
The ANT-421-02 is a dipole antenna for GSM/GPRS wireless communication, fitted with an SMA male (plug) connector. It covers the 824 to 960 MHz and 1710 to 2170 MHz bands, so it suits designs that need to operate across both ranges from a single antenna.
Gain is specified separately for each band: -0.9 ± 0.7 dBi at 890 MHz and +1.7 ± 0.7 dBi at 1930 MHz. The compact body measures φ13 x 136 mm and weighs 17 ± 2 g, which keeps it practical for installations where space and mass matter.
Rated for an operating temperature of -30 °C to +85 °C, the antenna is RoHS and WEEE certified. Check the mounting and cabling requirements of your enclosure against the dimensions above before ordering.
Applications
- GSM/GPRS wireless communication
| Product type: | Antenna |
|---|---|
| Interface: | SMA Male (Plug) |
| Operating temperature: | -30 ~ +85 °C |
Technische Daten
| Mechanical | |
|---|---|
| Dimensions (mm) | φ13 x 136 mm |
| Weight | 17 ± 2 g |
| Environment | |
| Operating Temperature | -30 °C ~ +85 °C |
| Antenna | |
| Type | Dipole |
| Connector | SMA Male (Plug) |
| Gain (dBi) | -0.9 ± 0.7@890 MHz +1.7 ± 0.7@1930 MHz |
| Band | 824 ~ 960MHz 1710 ~ 2170MHz |
Technische Daten laut Hersteller. Änderungen vorbehalten.
