ISaGRAF PACs

The I-7188EG CR is a palm-sized programmable automation controller that combines an 80188 processor running at 40 MHz with embedded ISaGRAF Ver.3 SoftLogic, so control logic can be written to IEC 61131-3 and run directly on the unit. It suits compact control tasks where a small footprint and Ethernet connectivity are both needed.Communication is handled by one 10Base-T RJ-45 Ethernet port, one RS-232 port and one RS-485 port, with serial rates up to 115200 bps. The controller supports Modbus RTU/ASCII master operation as well as Modbus RTU and Modbus TCP/IP slave operation, and includes DCON, Fbus and Ebus options along with a user-defined protocol. Where more serial ports or I/O are required, an X-Board expansion board can be fitted.This ordering code is the standard variant without the 5-digit 7-segment LED display offered on the I-7188EGD. The unit mounts on a DIN rail, draws 2.0 W from a +10 to 30 VDC supply and is rated for operation from -25 to +75 °C.ApplicationsEmbedded control logic written in IEC 61131-3 with ISaGRAFModbus communication between Ethernet hosts and serial RTU devices

The I-7188EGD is a palm-sized programmable automation controller that runs embedded ISaGRAF Ver.3 SoftLogic, programmable to IEC 61131-3. It is built around an 80188 CPU running at 40 MHz under the MiniOS7 operating system, and it gives engineers Ethernet connectivity alongside serial communication in a compact DIN-rail housing.Compared with the standard I-7188EG, this variant adds a 5-digit 7-segment LED display, which shows status information directly on the unit. Otherwise the two share the same core features, including the single 10Base-T Ethernet port, one RS-232 port and one RS-485 port.Expansion is possible with an X-Board I/O expansion board, which can add COM ports, I/O or memory.ISaGRAF cannot run on 64-bit Windows 7 or 8 PCs; Win-GRAF is the suggested alternative for those systems.

The I-7188XG CR is a compact programmable automation controller that runs embedded ISaGRAF Ver.3 SoftLogic to IEC 61131-3, making it a practical choice for local control logic in a small DIN-rail footprint. It combines an 80188 CPU at 40 MHz with MiniOS7 and two serial ports for connecting field devices.Two serial ports are provided, one RS-232/RS-485 and one RS-485, both non-isolated and capable of up to 115200 bps. Modbus RTU/ASCII master and Modbus RTU slave functions are supported, alongside DCON, user-defined protocols and remote I/O over DCON or Modbus RTU. An optional X-Board can be fitted to add COM ports, I/O or memory.This variant has no 5-digit 7-segment LED display; that feature is found on the I-7188XGD. Note that ISaGRAF cannot run on 64-bit Windows 7 or 8 PCs, so Win-GRAF is the suitable programming environment in that case.ApplicationsStandalone IEC 61131-3 control logic in compact cabinetsSerial Modbus RTU/ASCII master polling of field devicesSerial device gateways and local I/O on DIN-rail panels

The I-7188XGD is a compact programmable automation controller that runs IEC 61131-3 logic through embedded ISaGRAF Ver.3 SoftLogic on a 40 MHz 80188 CPU under MiniOS7. It suits engineers who need serial device control and local logic in a small footprint on a DIN rail.Two serial ports, RS-232/RS-485 and RS-485, support Modbus RTU/ASCII master and Modbus RTU slave operation, along with DCON and user-defined protocols. The I-7188XGD adds a 5-digit 7-segment LED display to the base I-7188XG, which is useful for showing status values on the unit itself. An X-Board expansion option can add COM ports, I/O or memory if the standard configuration is not enough.Note that ISaGRAF cannot run on 64-bit Windows 7 or 8 PCs. Where that applies, Win-GRAF is the suitable development environment.ApplicationsSerial device control over RS-232/RS-485 networksModbus RTU master or slave communicationLocal logic control in DIN-rail control cabinets

iP-8417 CR is a four-slot programmable automation controller from the iPAC-8000 series, running embedded ISaGRAF Ver.3 SoftLogic to IEC 61131-3 on an 80186 CPU at 80 MHz under the MiniOS7 operating system. It suits engineers who want IEC 61131-3 control logic on a DIN-rail controller with local I/O expansion and several serial links.The unit provides four hot-swap slots for I-87K high profile serial I/O modules. Four serial ports (RS-232/485) allow connection to field devices and networks. Remote I/O is also supported through RS-485 modules from the I-7000 series, as well as RU-87Pn or I-87Kn expansion units.Data retention is handled by 512 KB of battery-backed SRAM, and each controller carries a 64-bit hardware serial number. The redundant power inputs accept +10 ~ 30 VDC. This is the RoHS version listed under the CR ordering code. ISaGRAF cannot run on 64-bit Windows 7/8 PCs, so check the programming workstation before commissioning.ApplicationsDistributed control with IEC 61131-3 logic using ISaGRAFRemote I/O networks using RS-485 I-7000 series modulesSerial data acquisition and control with I-87K expansion modules

The iP-8447 CR is a 4-slot programmable automation controller that runs embedded ISaGRAF Ver.3 SoftLogic, programmed to IEC 61131-3, on an 80186 80 MHz CPU under MiniOS7. It suits engineers who want a PLC-style controller that can host high-performance parallel I/O (I-8K) or serial I/O (I-87K) modules directly in its hot-swap slots, or reach remote I/O over RS-485.Connectivity is built around dual 10/100 Base-TX Ethernet ports and four serial ports (two RS-232, one RS-485 with 3000 VDC isolation, and one switchable RS-232/RS-485). The controller supports a broad protocol set, including Modbus TCP/IP Slave, Modbus RTU/ASCII Master, DCON, UDP, TCP Client, CAN/CANopen and FTP Client. Data is held in 512 KB of battery-backed SRAM, and each unit carries a 64-bit hardware serial number.Note that ISaGRAF cannot run on 64-bit Windows 7 or 8 PCs. Where a 64-bit Windows 7 or 8 workstation is in use, Win-GRAF is the appropriate programming environment.

iP-8817 CR is an 8-slot programmable automation controller that runs embedded ISaGRAF Ver.3 SoftLogic to IEC 61131-3 on an 80186 CPU clocked at 80 MHz under MiniOS7. It suits engineers who need PLC-style control logic with a rack of hot-swappable serial I/O modules in a single unit.The eight slots accept high profile I-87K serial I/O modules, and the I-8K series is also listed as a supported I/O type. Four serial ports (two RS-232, one isolated RS-485 and one switchable RS-232/RS-485) let the controller talk to field devices, while RS-485 remote I/O modules from the I-7000 series and expansion units (RU-87Pn or I-87Kn) extend the system further.Battery-backed SRAM retains data through power cycles, and the unit includes a 64-bit hardware serial number, a real-time clock, a watchdog timer and redundant power inputs. Note that ISaGRAF cannot run on 64-bit Windows 7 or 8 PCs; Win-GRAF is the suggested alternative for those systems.ApplicationsIndustrial control using IEC 61131-3 logic in ISaGRAFDistributed I/O with RS-485 remote I/O modules (I-7000 series)Serial I/O expansion with I-87K modules via RU-87Pn or I-87Kn expansion units

The iP-8847 CR is an 8-slot ISaGRAF-based Ethernet PAC for engineers who need IEC 61131-3 control logic running on an 80186 CPU at 80 MHz under MiniOS7. Embedded ISaGRAF Ver.3 SoftLogic handles the programming, while the eight hot-swap slots accept high profile I-87K serial I/O modules for expanding the system.Communications are covered by dual 10/100 Base-TX Ethernet ports, four serial ports (RS-232/RS-485) and a wide protocol set including Modbus TCP/IP, Modbus RTU, DCON, CAN/CANopen and UDP/TCP client and server functions. Battery-backed SRAM retains data through power loss, and redundant power inputs support higher availability designs.The ordering code carries the RoHS designation given in the source product description. Mechanical installation options are DIN-rail or wall mounting, with an operating temperature range of -25 ~ +75°C.ApplicationsMachine and process control using IEC 61131-3 logicDistributed I/O with I-87K serial modules and RS-485 remote I/OSerial device integration over RS-232/RS-485 and Modbus networks

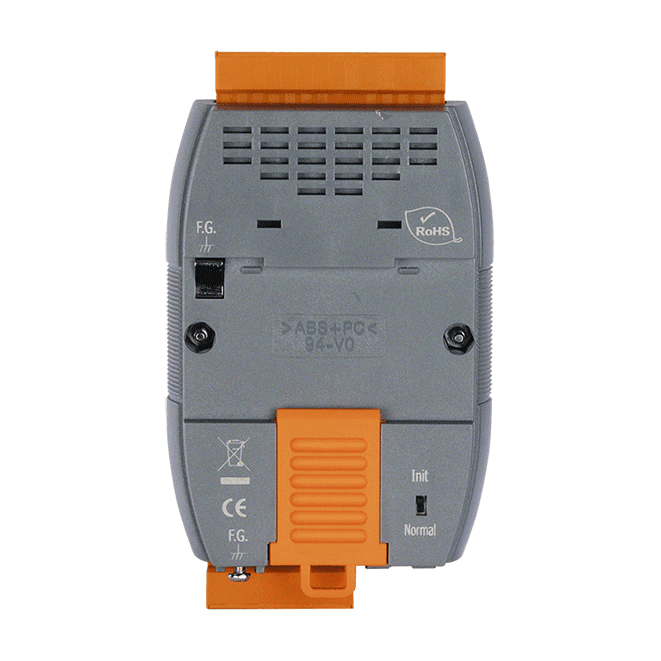

ISaGRAF Based Palm-Sized Serial/Ethernet PAC with 80186-80 CPU, MiniOS7.

ISaGRAF Based uPAC-7186 with 80186-80 CPU, MiniOS7 and 7-Segment LED Display.

The XP-8037-CE6 is a zero-slot programmable automation controller that combines an IEC 61131-3 soft PLC with a full Windows CE 6.0 platform. Its 1.0 GHz dual-core x86 processor and 2 GB of DDR3 SDRAM let engineers run Embedded ISaGRAF Ver.3 control logic alongside other PC-based control software on one device.Because it has no I/O slots, the XP-8037-CE6 suits projects that rely on Ethernet, serial and USB connectivity, or that need local display output through its VGA port. Its Modbus RTU/TCP master and slave support, dual watchdog timer and hard real-time capability make it a practical choice for supervisory and control tasks that need deterministic behaviour.The ISaGRAF workbench offers standard PLC languages (LD, FBD, SFC, ST, IL) and flow chart programming, with online debugging, monitoring and offline simulation. The eLogger HMI option allows the operator interface and control logic to run in the same PAC.ApplicationsRunning HMI and control logic in the same PAC using eLogger HMIMotion control using I-8094F, I-8094 or I-8092F modulesIndustrial control with IEC 61131-3 programming in ISaGRAF

The XP-8137-CE6 is a programmable automation controller that combines IEC 61131-3 control logic with a Windows CE 6.0 platform. Its 1.0 GHz dual-core x86 CPU, 2 GB DDR3 SDRAM and 32 GB Flash give engineers room for control, data handling and visualisation on one device.Control programs are written in Embedded ISaGRAF Ver.3 using the standard IEC 61131-3 languages. The eLogger HMI runs alongside the control logic in the same unit, so operator screens do not need a separate panel PC. The single slot accepts I-8K or I-87K series I/O modules, and the controller supports Modbus RTU/TCP master and slave communication.Connectivity includes VGA output, two 10/100/1000 Base-TX Ethernet ports, four RS-232/RS-485 serial ports and four USB 2.0 ports. Redundant power inputs at +10 ~ 30 VDC and a dual watchdog timer support dependable installations, and the unit mounts on DIN-rail or wall.ApplicationsMachine and process control programmed to IEC 61131-3Combined control and HMI on a single PACMotion control using I-8094F/8094/8092F modulesDistributed I/O expansion with I-8K and I-87K modules

The XP-8337-CE6 combines a 1.0 GHz dual-core x86 processor with Windows CE 6.0 and an embedded ISaGRAF Ver.3 soft-logic engine. It suits engineers who want PLC-style control with IEC 61131-3 languages alongside the option of running PC-based control software on the same platform.Three expansion slots accept high-profile I-8K parallel I/O modules or I-87K serial I/O modules. The unit has dual RJ-45 10/100/1000 Base-TX Ethernet ports, four USB 2.0 ports, a VGA output and a mix of RS-232 and RS-485 serial ports, so it can be integrated with local I/O, remote devices and a display in a single controller.Modbus RTU/TCP master and slave, with DCON, CANopen master and HART options listed in the protocol setSupport for the eLogger HMI, so HMI and control logic can run in the same PACMotion control support when used with the I-8094F, I-8094 or I-8092F modulesThe 2 GB DDR3 SDRAM, 32 GB Flash and 8 GB CF card storage provide ample room for application code, data logging and runtime needs. Redundant power inputs, a dual watchdog timer and a real-time clock support dependable operation in demanding installations.ApplicationsIndustrial control using IEC 61131-3 PLC programmingCombined HMI and control logic in one PAC via eLogger HMIMotion control with I-8094F, I-8094 or I-8092F modulesMachine control with mixed parallel and serial I/O expansion

XP-8737-CE6 is a seven-slot programmable automation controller built on a 1.0 GHz dual-core x86 CPU and Windows CE 6.0. It runs Embedded ISaGRAF Ver.3 soft logic, so engineers can program control applications in the IEC 61131-3 languages on a Windows-based platform, and it can host PC-based control software alongside that logic.The seven slots accept high-performance parallel I-8K modules or serial I-87K modules, allowing the controller to be sized to the I/O count of the application. Modbus RTU and Modbus TCP are available in both master and slave roles, and the eLogger HMI option allows operator screens to run on the same controller as the control logic. Motion control is supported with the I-8094F, I-8094 and I-8092F modules.Choose this model when you need a Windows CE controller with a wide choice of I/O and communication ports, a 24 VDC redundant power input and hard real-time behaviour. The DIN-rail or wall-mounted plastic housing suits panel-based installations with an operating range of -25 ~ +75 °C.ApplicationsMotion control using I-8094F, I-8094 or I-8092F modulesRunning HMI and control logic in the same PAC with eLogger HMIPC-based control with ISaGRAF and Windows software such as Visual Basic .NET and Visual C#
