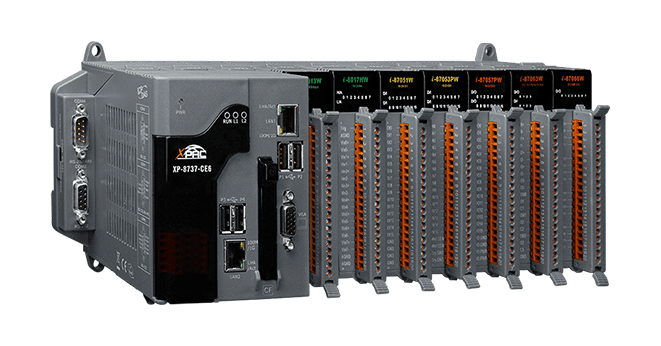

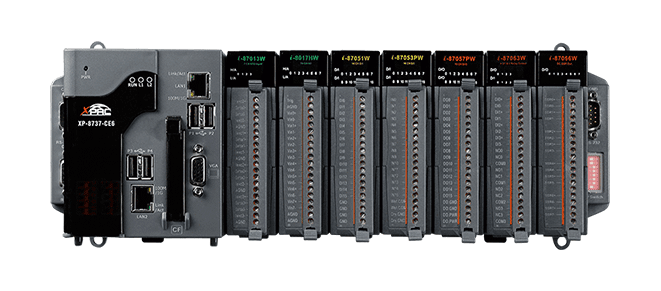

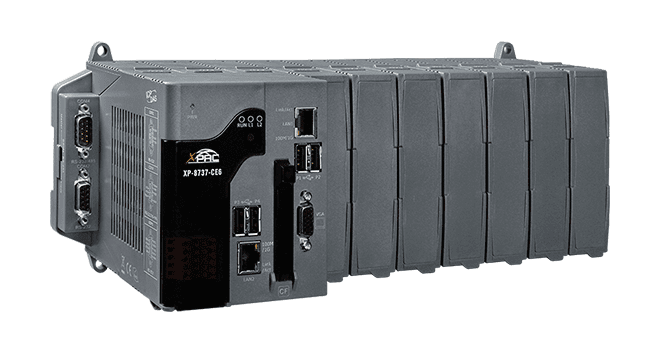

XP-8737-CE6 ISaGRAF PAC, 7-slot x86 WinCE 6.0 Controller
7-slot ISaGRAF PAC with a 1.0 GHz dual-core x86 CPU and Windows CE 6.0, running IEC 61131-3 soft logic with Modbus connectivity and I-8K/I-87K I/O expansion.
- 1.0 GHz dual-core x86 CPU running Windows CE 6.0
- Embedded ISaGRAF Ver.3 soft logic with IEC 61131-3 programming languages
- Seven slots for I-8K parallel or I-87K serial I/O modules
- Modbus RTU/TCP master and slave, plus DCON and CANopen master
- 2 x RJ-45 10/100/1000 Base-TX Ethernet, 4 x USB 2.0 and VGA output
- Redundant power inputs, +10 ~ 30 VDC (1 kV isolated)
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "XP-8737-CE6 ISaGRAF PAC, 7-slot x86 WinCE 6.0 Controller"
XP-8737-CE6 is a seven-slot programmable automation controller built on a 1.0 GHz dual-core x86 CPU and Windows CE 6.0. It runs Embedded ISaGRAF Ver.3 soft logic, so engineers can program control applications in the IEC 61131-3 languages on a Windows-based platform, and it can host PC-based control software alongside that logic.
The seven slots accept high-performance parallel I-8K modules or serial I-87K modules, allowing the controller to be sized to the I/O count of the application. Modbus RTU and Modbus TCP are available in both master and slave roles, and the eLogger HMI option allows operator screens to run on the same controller as the control logic. Motion control is supported with the I-8094F, I-8094 and I-8092F modules.
Choose this model when you need a Windows CE controller with a wide choice of I/O and communication ports, a 24 VDC redundant power input and hard real-time behaviour. The DIN-rail or wall-mounted plastic housing suits panel-based installations with an operating range of -25 ~ +75 °C.
Applications
- Motion control using I-8094F, I-8094 or I-8092F modules
- Running HMI and control logic in the same PAC with eLogger HMI
- PC-based control with ISaGRAF and Windows software such as Visual Basic .NET and Visual C#
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB 2.0, VGA |
| Protocol: | Modbus RTU, Modbus TCP |
| Ports: | 2 x Ethernet |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Technische Daten
| Software | |
|---|---|
| OS | Windows CE 6.0 |
| Protocol | • NET ID • Redundancy Solution • eLogger HMI • Modbus TCP/IP Master • Modbus TCP/IP Slave • Modbus RTU/ASCII Master • Modbus RTU Slave • DCON Protocol • User-defined Protocol • I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O • FRnet I/O • Web HMI • Send Email • Ebus • SMS • UDP Server & UDP Client • TCP Client • GPRS/SMS • SQL Client • CAN/CANopen • CANopen Master • HART Solutions • FTP Client |
| Development | Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3) |
| Service | FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5 |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for eVC, Dll for Visual Studio.Net 2005/2008 |
| Main Unit | |
| CPU | x86 CPU, 1.0 GHz, dual-core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 2 GB DDR3 SDRAM |
| Storage | 32 GB Flash, 8 GB CF card (up to 32 GB) |
| Non-Volatile Memory | 16 KB EEPROM, 512 KB MRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 7 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| DIP Switch | 8-bit for address |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 18.0 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 355 x 132 x 125 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
