IR-Temperatursensoren

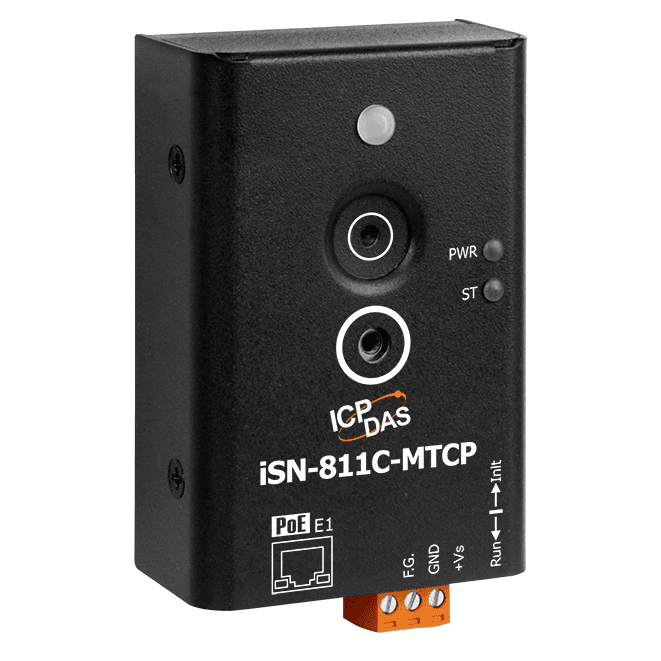

iSN-811C-MTCP is a non-contact temperature measurement module built around a 64-pixel (8 x 8) infrared sensor. Its integrated camera supplies a visible image of the measured objects, so the infrared data can be viewed directly against the scene and the temperature distribution across a surface can be inspected at a glance.The module connects over a single 10/100Base-T(X) Ethernet port and can be powered from PoE (IEEE 802.3af, Class 1) or a +10~+30 VDC supply. It acts as a Modbus TCP server, so it can feed real-time readings into SCADA systems, and it can also push measurement data to a remote database through RESTful or publish it to an MQTT broker for subscribing platforms.Typical uses include monitoring equipment for anomalies, early warning, and logging historical temperature data for trend analysis. The web interface provides a heat map and trend charts, and the temperature threshold detection function helps flag abnormal conditions.ApplicationsTemperature monitoringMeasuring the temperature of moving objectsMeasuring the temperature distribution on the surface of an objectSuitable for hazardous environmentsDetecting abnormal field conditions with integrated thermal and field imaging

iSN-812-MRTU measures surface temperature without contact, reporting readings over a single RS-485 link using Modbus RTU. It suits engineers who need to feed real-time temperature data into a SCADA or other Modbus master without adding a separate sensor controller.The 768-pixel (32x24) IR sensor covers a field of view of X: 110° and Y: 75°, with the distance-to-spot ratio given in the source data for each axis. The module is rated for measurement up to 2 m, an accuracy of ±5 °C max. and a range of -40 °C to 300 °C. Its built-in temperature threshold detection function lets you flag out-of-range conditions at the sensor itself.The unit runs from a +10 to +30 VDC supply and draws 1.5 W. It mounts on DIN-rail, or magnetically or via a universal joint as optional accessories, and is specified for an operating range of -10 °C to 70 °C with 10% to 95% RH non-condensing humidity.ApplicationsTemperature monitoringMeasuring the temperature of moving objectsMeasurement of the temperature distribution on the surface of an objectSuitable for hazardous environments

The iSN-812-MTCP measures surface temperature without contact, using a 768-pixel (32x24) infrared sensor with a range of -40°C to 300°C and a resolution of 0.1°C. It connects to SCADA systems over Modbus TCP, where it acts as a Modbus TCP server, and can also push data to a remote database via RESTful or publish to an MQTT broker as a client.Built-in temperature threshold detection and a web-based interface with a real-time HeatMap view and trend charts make it practical for spotting abnormal heat early. Logged historical data can support anomaly analysis and predictive maintenance planning.The unit is powered through Ethernet via PoE (IEEE 802.3af, Class 1) or from a +30 VDC supply, and mounts on DIN-rail or, optionally, by magnet or universal joint. The ordering code iSN-812-MTCP CR is listed with the same specification as the base model, with RoHS compliance noted in the product description.ApplicationsTemperature monitoring of equipment in industrial environmentsMeasuring the temperature of moving objectsMapping temperature distribution across the surface of an objectEquipment anomaly detection and predictive maintenanceUse in hazardous environments, as stated by the manufacturer

iSN-813-MTCP is a non-contact infrared temperature module with a 4,800-point sensing array (80 x 60). The dense sensing grid keeps readings accurate at a distance of up to 6 m, and the thermal image shows object edges, shapes and temperature distribution, which helps staff find abnormal hot spots quickly.The module measures from -20°C to 300°C with 0.1°C resolution and an accuracy of ±5°C max. It communicates as a Modbus TCP server and as an MQTT and RESTful client, and it includes a temperature threshold detection function. Configuration and monitoring are handled through a web-based interface.Power can come from PoE (IEEE 802.3af, Class 1) or from a +10 to +30 VDC supply. The housing mounts on DIN-rail, with magnetic and universal-joint mounting available as options. Typical uses include machinery overheating checks, surface temperature distribution mapping, moving-object temperature measurement and pipeline leak detection in petrochemical plants.ApplicationsMachinery overheating monitoringMeasuring the temperature of moving objectsMeasuring temperature distribution on object surfacesPipeline leak detection in petrochemical and chemical plantsNon-contact body temperature monitoring in hospital wardsMonitoring in hazardous environments

VPD-170-IRT CR is a touch-screen data concentrator for iSN-81x infrared temperature sensing modules. It lets a remote monitoring host read temperature data from several iSN-81x modules through a single Ethernet connection, supporting up to 8 Modbus TCP client connections.The 7-inch colour touch screen provides local access to the configuration of both the iSN-81x modules and the concentrator itself. Engineers can view measured temperatures and thermal images at the device, and set temperature thresholds that drive nine Form A signal relay outputs for alarm purposes.Suited to control cabinets and machine rooms where inspection points are numerous, the unit supports centralised temperature monitoring with Modbus TCP and Modbus RTU on its serial ports. It is powered either by PoE (IEEE 802.3af, Class 1) or from a +12 ~ 48 VDC terminal block, and the price list entry for this code notes that the XV-board is included.ApplicationsControl panel and cabinet temperature monitoringMachine room operating environment managementCentralised remote temperature monitoring systems
