Relaiskarten

The RM-108 CR is an 8-channel relay board that switches loads through Form C contacts rated at 16 A @ 250 VAC. It suits engineers who need to drive several higher-current outputs from a single compact module on a DIN rail.Each channel carries one Form C relay and has its own LED that shows the channel status, which simplifies commissioning and fault finding. Reverse polarity protection is provided to help prevent improper operation.Mechanical dimensions: 135 mm x 87 mm x 63 mm (L x W x H)Operating and storage temperature: -20 ~ 70°CHumidity: 5% ~ 90% RH, non-condensingApplicationsSwitching loads rated up to 16 A @ 250 VAC

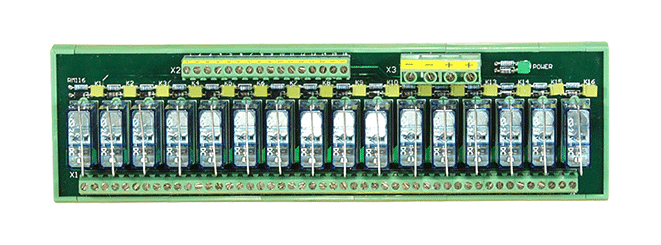

The RM-116 CR is a 16-channel relay board fitted with one Form C power relay per channel. Each contact is rated 16 A @ 250 VAC, so it suits switching higher-current loads from a relay board rather than a low-level signal module.Reverse polarity protection guards against incorrect wiring, and each channel has its own LED that shows the relay status. The board mounts on DIN rail and is specified for operation from -20 ~ 70°C and 5% ~ 90% RH, non-condensing.Dimensions: 270 mm x 87 mm x 63 mm (L x W x H)RoHS and WEEE listed

The RM-20.22 CR is a 2-pole, 16 A step relay module for DIN-rail mounting. It provides two Form A relay outputs with a 24 V step relay type and a contact rating of 16 A at 250 VAC, making it a practical choice for switching mains-level loads from a control circuit.The module is only 17.4 mm wide, so it fits compactly alongside other rail-mounted devices. A test button with mechanical indicators lets you check switching state during commissioning and fault finding.Operating and storage temperature range of -40 ~ 70 °CContact material AgSnO2, rated for 100 · 10^3 electrical and 300 · 10^3 mechanical operations

RM-208 CR is an 8-channel relay board in the RM series. Each channel carries two Form C relays rated 5 A @ 250 VAC, so one channel can switch two independent contact sets from a single 24 V power relay input.The board mounts on TS-15, TS-32 or TS-35 DIN rails. Reverse polarity protection guards against incorrect wiring, and an LED on each channel shows its status, which helps with commissioning and fault finding in control cabinets.Choose this variant when you need eight relay channels with dual Form C contacts. The RM series also includes 4-channel and 16-channel versions with different relay configurations.

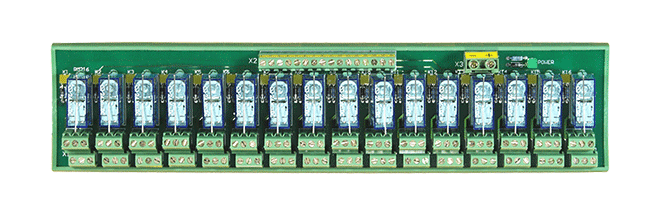

The RM-216 CR is a 16-channel relay board that gives control cabinets 32 Form C contacts, with two relays on every channel. Each contact is rated at 5 A @ 250 VAC, so the board suits switching external loads from a single DIN-rail module.Each channel carries a status LED, so engineers can confirm switching state during commissioning and fault finding. Reverse polarity protection guards against incorrect wiring of the supply. The module mounts on TS-15, TS-32 or TS-35 DIN rails.The board operates from -20 ~ 70°C with 5% ~ 90% RH non-condensing humidity, and its 327 mm x 87 mm x 63 mm footprint suits compact panel layouts. It is a good choice where a dense, multi-channel relay stage is needed within a standard rail-mounted enclosure.ApplicationsSwitching of external loads up to 5 A at 250 VAC per contactMulti-channel relay switching in DIN-rail control cabinets

The RM-22.22 CR is a compact 2-pole relay module that switches loads of up to 20 A at 250 VAC through a double-pole, normally open (DPST-NO) contact arrangement. It suits panel builders who need to switch a circuit on and off from a control signal within a narrow, rail-mounted footprint.The module mounts on a 35 mm rail (EN 50022) and measures 84 mm x 17.4 mm x 58.4 mm (L x W x H). Its input range of 21.6 ~ 56.4 VDC covers typical 24 V control supplies, and a test button is provided for manual operation.Contacts are AgSnO2, rated for 50 · 10^3 electrical and 500 · 10^3 mechanical operations. The module is specified for an operating temperature of -40 ~ 70°C and a storage temperature of -40 ~ 70°C.

20-way jumper link.

The RM-38.61 CR is a DIN-rail relay module built around a 1-pole Form C power relay. Its AgNi contact is rated 6 A at 250 VAC, which suits switching duties where a single changeover contact on a rail-mounted board is needed.The module mounts on a 35 mm rail (EN 50022) and is 17.4 mm wide, making it compact for control panels. A test button is fitted for manual checking of the relay. The source lists operate and release times of 0.05 ms and 0.25 ms, with electrical endurance of 60 · 10^3 and mechanical endurance of 10 · 10^6.Key points for specification:Form C contact, rated 6 A @ 250 VACOperating and storage temperature range of -40 ~ 70°CSupplied as five pieces in one box

18-way jumper link.

The RM-48.61 is a relay interface module for use with I-7000 remote I/O modules. It provides one Form C (single-pole changeover) power relay rated at 16 A @ 250 VAC, allowing an I-7000 output channel to switch higher-power loads.Each module is 15.5 mm wide and mounts on a 35 mm DIN rail to EN 50022. Operate and release times are 7 ms and 3 ms respectively, and the contacts are AgNi/AgCdO. Four pieces are supplied in one box, which suits panels that need several relay channels.Choose the RM-48.61 when you need a compact, rail-mounted relay stage in an I-7000 system and an operating range of -40 ~ 70°C.ApplicationsSwitching higher-power loads from I-7000 remote I/O digital outputsRelay stages in DIN-rail mounted control panels

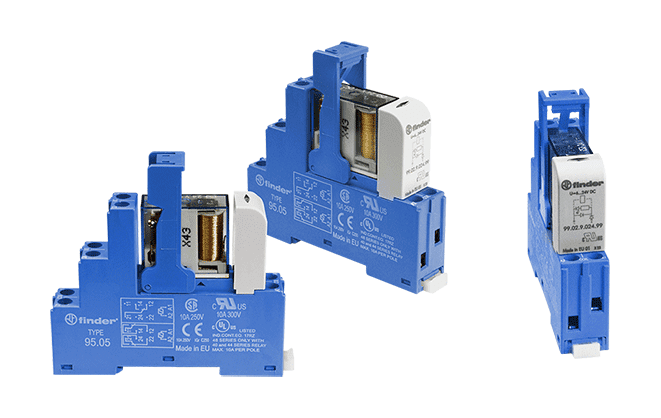

RM-48.62 is a relay interface module for systems built around I-7000 remote I/O modules. It provides two Form C changeover contacts, rated 10 A @ 250 VAC, so that the I-7000 controller can switch loads that exceed the capability of its own digital outputs.The module is 15.5 mm wide and mounts on a 35 mm DIN rail (EN 50022), which suits compact control cabinet layouts. Contacts are AgNi, with an operate time of 7 ms and a release time of 3 ms. The rated operating temperature range is -40 ~ 70°C.Relay module for I-7000 remote I/O modulesTwo Form C relay channelsContact rating 10 A @ 250 VAC15.5 mm wide, DIN-rail mountingApplicationsSwitching higher-power loads from I-7000 remote I/O systemsRelay switching in DIN-rail control cabinets
