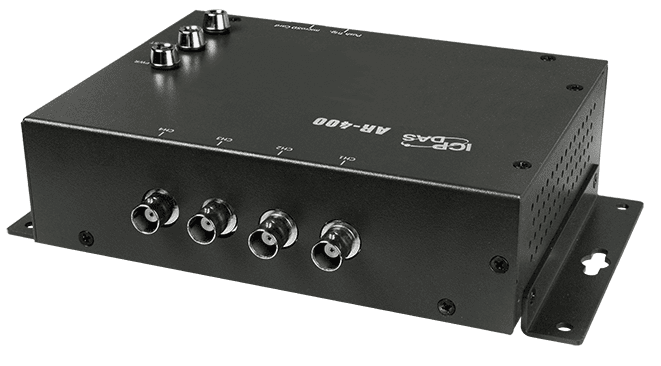

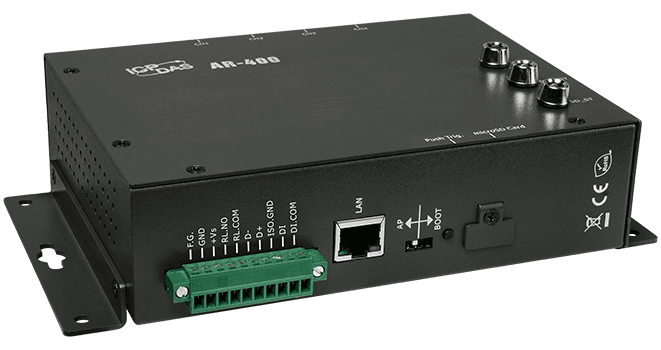

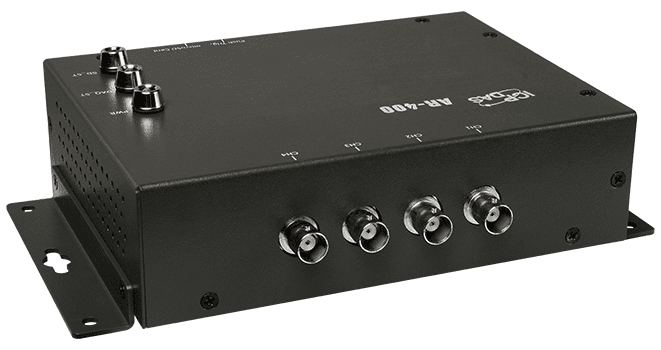

AR-400 Accelerometer Data Logger, 4-ch IEPE Input
The AR-400 logs vibration data from up to four IEPE accelerometers at up to 125 kHz per channel, storing results on a micro SD card for offline analysis.
- Four simultaneous 16-bit ADC inputs with a ±10 V voltage range and 3 mA IEPE excitation current
- Supports 2 or 4 IEPE inputs, with sample rates of 5, 10, 20, 50, 100 and 125 kHz
- Flexible triggering: push button, schedule, analog threshold, digital input and utility remote trigger
- Data saved to 4 to 32 GB micro SDHC flash, with a maximum recording time of 30 m at 5 kHz
- One Form A power relay output (5A@250 VAC, 5A@30 VDC) and one digital input (dry or wet contact)
- 1 x RJ-45 10/100Base-T(X) Ethernet port
685,00 € pro Stück
| 1–9 Stück | 685,00 € | |
|---|---|---|
| 10–30 Stück | 664,00 € | −3 % |
| ab 31 Stück | 651,00 € | −5 % |
Produktinformationen "AR-400 Accelerometer Data Logger, 4-ch IEPE Input"
The AR-400 is a dynamic signal acquisition module for vibration monitoring and analysis. It samples four channels simultaneously with 16-bit resolution and supplies a built-in 3 mA excitation current for IEPE accelerometers, so compatible sensors can be connected directly without an external supply.
Acquired data is written to a micro SDHC card (4 to 32 GB), allowing offline analysis after capture. Recording can be started by push button, schedule, analog threshold, digital input or remote trigger from the utility software installed on a host PC, which also handles sample rate and sampling schedule settings.
- Suited to condition monitoring setups where vibration data must be captured at defined times or on defined events.
- Includes a relay output (Form A, 5A@250 VAC) and a digital input for use within trigger or control logic.
Applications
- Vibration monitoring and analysis
- Industrial automation
- Factory automation
- Process automation
| Product type: | Accelerometer data logger |
|---|---|
| Interface: | Ethernet |
| Digital inputs: | 1 |
| Relay outputs: | 1 |
| Analog inputs: | 4 |
| Ports: | 1 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall, DIN-rail |
Technische Daten

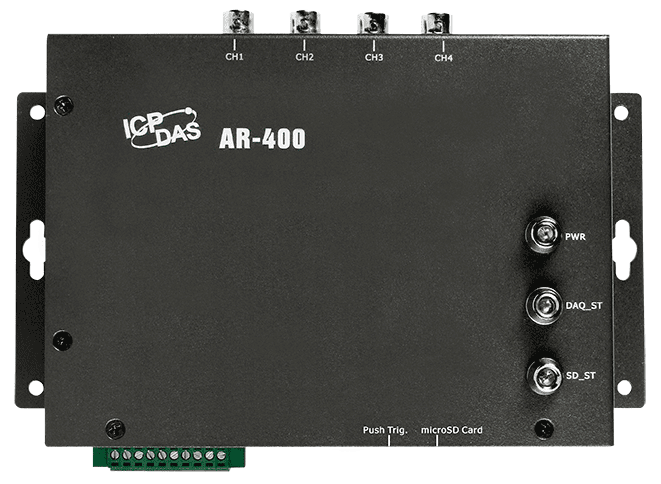

| LED Indicators | |
|---|---|
| Status | 1 x PWR 1 x DAQ 1 x SD |
| Analog Input | |
| Channels | 4 (simultaneous sampling) |
| Type | IEPE |
| Range | Voltage: ±10 V Current: 3 mA |
| Resolution | 16 bit |
| Sampling Rate | 5, 10, 20, 50, 100, 125 (kHz) |
| Trigger Mode | Push-button triggering, timed triggering, threshold triggering, digital input triggering, remote triggering by utility software |
| Digital Input | |
| Channels | 1, Dry Contact: Source / Wet Contact: Sink or Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 VDC to +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +4 VDC max |
| Relay Output | |
| Channels | Form A x 1 |
| Type | Power Relay |
| Contact Rating | 5A@250 VAC (47 ~ 63 Hz) 5A@30 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Electrical Endurance | 100,000 times min |
| Mechanical Endurance | 20,000,000 times min |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| Power | |
| Consumption | 4.3 W |
| Mechanical | |
| Dimensions (mm) | 197 x 139 x 57 (W x L x H) |
| Installation | Wall mounting, rail type |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ 80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
