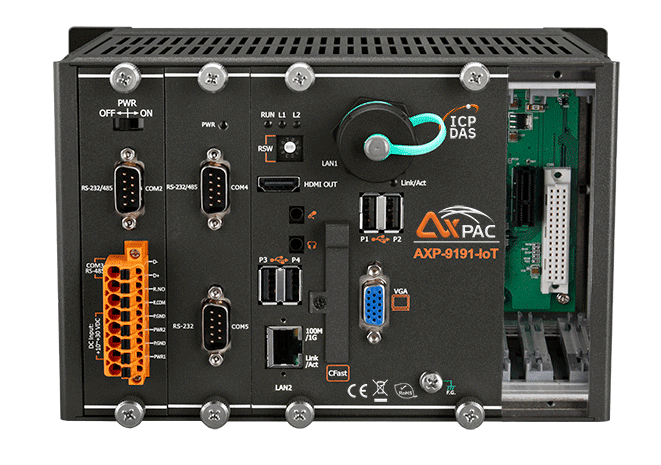

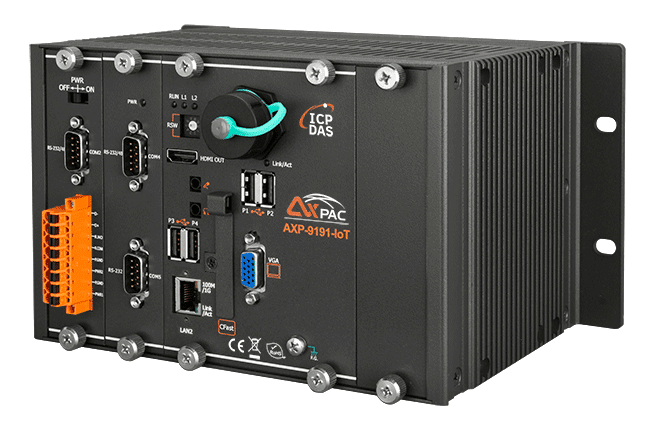

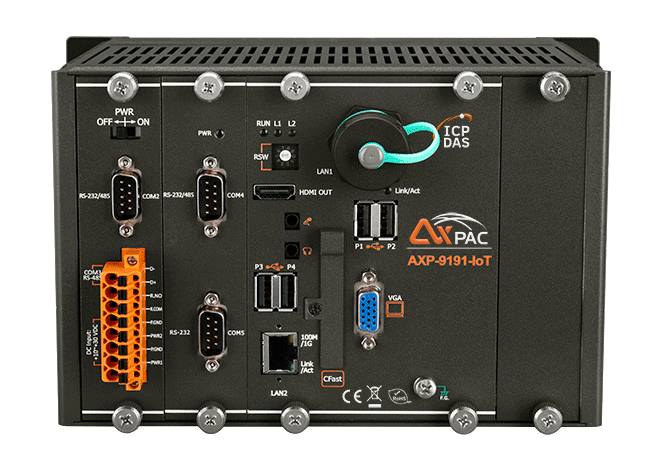

AXP-9191-IoT 1-Slot Windows 10 IoT PAC with Intel Atom E3950 CPU
Windows 10 IoT based 1-slot PAC that combines computing, I/O and operator interface in one metal unit, with dual Gigabit Ethernet and redundant power input.
- Windows 10 IoT Enterprise LTSC (64-bit) with support for Universal Windows apps and traditional Windows applications
- Intel Atom E3950 processor, 1.6 ~ 2.0 GHz, 4C4T
- 8 GB DDR4 SDRAM and 128 GB SSD (SATAIII), plus a CFast card slot
- One local I/O expansion slot for I-9K, I-97K and e-9K series modules
- Two 10/100/1000M Ethernet ports, VGA and HDMI display output
- Redundant power input with alarm relay (1 A @ 24 VDC)
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "AXP-9191-IoT 1-Slot Windows 10 IoT PAC with Intel Atom E3950 CPU"
AXP-9191-IoT is a Windows-based programmable automation controller for engineers who want HMI, data acquisition and control in a single compact unit. An Intel Atom E3950 processor, 8 GB DDR4 memory and a 128 GB SSD run Windows 10 IoT Enterprise LTSC (64-bit), so existing Windows software and Universal Windows apps can run side by side.
One local expansion slot accepts I-9K, I-97K and e-9K series I/O modules. Remote I/O can be added through Ethernet I/O modules and RS-485 I/O modules. The front panel provides VGA and HDMI display outputs, a buzzer, a 10-position rotary switch and programmable LEDs for local operator feedback.
Connectivity includes two 10/100/1000M Ethernet ports, two USB 2.0 and two USB 3.0 ports, and isolated COM ports for RS-232 and RS-485. Redundant power inputs with an alarm relay help protect continuous operation, and the unit is rated for DIN-rail or wall mounting with a fanless, CPU heat sink cooling design.
Applications
- Integrating HMI, data acquisition and control in one PAC
- Local and remote I/O expansion for machine and process control
- Deployment in harsh industrial environments
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, HDMI, RS-232, RS-485, USB, VGA |
| Ports: | 2 |
| Isolation: | 3000 VDC (COM) |
| Power input: | +19 ~ 30 VDC |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise LTSC (64-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | Intel Atom® Processor Apollo Lake E3950, 1.6 ~ 2.0 GHz, 64-bit, 4C4T |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 8 GB DDR4 SDRAM |
| Storage | 1 x 128 GB SSD (SATAIII) 1 x CFast card slot |
| Non-Volatile Memory | 128 KB MRAM 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | 1xVGA, 1xHDMI |
| Resolution | VGA 1920 x 1200 @ 60Hz HDMI 4096 x 2160 @ 30P |
| LED Indicators | |
| Status | 1 x System 2 x Power 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K, e-9K series |
| Slots | 1 x serial/parallel bus 1 x e-Bus x1 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Power Switch | Yes |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Intel® Ethernet Controller I210IT) |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC Isolated) 1 x RS-485 (3000 VDC Isolated) 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 2 x USB 3.0 |
| Power | |
| Capacity | 25 W supply to CPU and backplane, 25 W supply to I/O expansion slots and USB ports, 50 W in total |
| Input Range | +19 ~ 30 VDC (2 kV Isolated ) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 19 W |
| Mechanical | |
| Dimensions (mm) | 239 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Cooling Type | CPU Heat Sink / Fanless |
| Environment | |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
