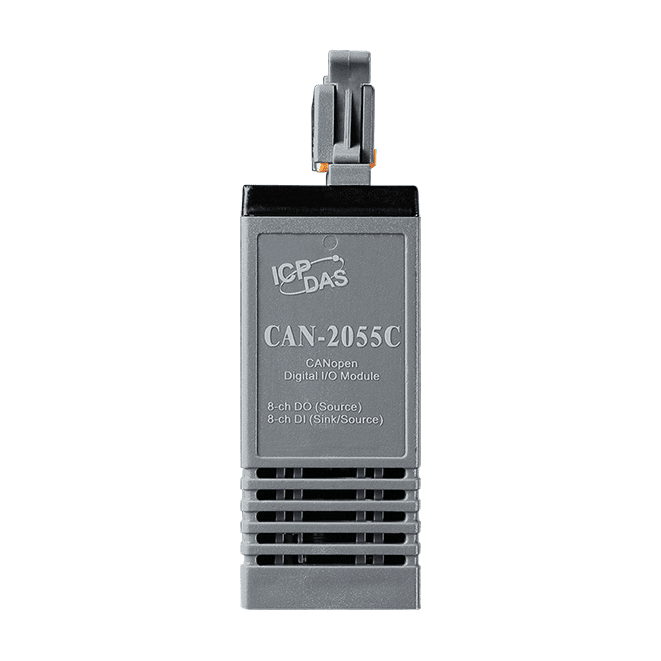

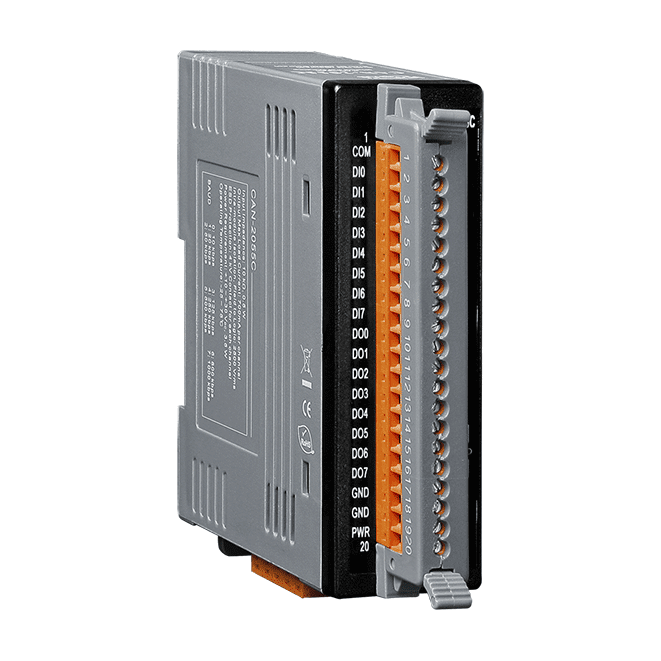

CAN-2055C CANopen Slave I/O Module, 8-ch Isolated DI and 8-ch PNP DO
CANopen slave module with 8 isolated wet-contact digital inputs and 8 isolated PNP source outputs, supporting CiA 301 v4.02 and CiA 401 v2.1 with a default EDS file.
- NMT slave supporting CiA 301 v4.02 and CiA 401 v2.1
- 8 isolated sink/source wet-contact digital inputs, ON from +3.5 ~ +30 VDC
- 8 isolated PNP source digital outputs, 700mA per channel
- Default EDS file and Pair-Connect function for straightforward master setup
- 4KV ESD protection contact on each channel
- 10 RxPDO and 10 TxPDO with PDO mapping and multiple transmission modes
182,00 € pro Stück
| 1–9 Stück | 182,00 € | |
|---|---|---|
| 10–30 Stück | 177,00 € | −3 % |
| ab 31 Stück | 173,00 € | −5 % |
Produktinformationen "CAN-2055C CANopen Slave I/O Module, 8-ch Isolated DI and 8-ch PNP DO"
CAN-2055C is a CANopen slave I/O module for engineers who need to bring digital inputs and outputs onto a CAN bus network. It follows CiA 301 v4.02 and CiA 401 v2.1, so digital I/O status can be read and configured through standard CANopen objects, and it works with any standard CANopen master once the default EDS file is loaded.
The module provides 8 isolated sink/source digital inputs with a wet-contact type, and 8 isolated source (PNP) digital outputs rated at 700mA per channel with a load voltage of +10 ~ +30 VDC. Each channel carries 4KV ESD protection contact, which helps the module tolerate harsh field wiring.
Communication is configured through 10 RxPDOs and 10 TXPDOs with PDO mapping, using event-triggered, remotely-requested, cyclic and acyclic SYNC modes. Error control is provided by Node Guarding or Heartbeat Producer, and the module includes a built-in 120Ω terminal resistor. The unit is RoHS compliant and mounts on a DIN-rail.
Applications
- Industrial machine control
- Factory automation
- Packaging machine control
- Remote data acquisition
- Environmental monitoring
| Product type: | Fieldbus I/O module |
|---|---|
| Interface: | CAN bus |
| Protocol: | CANopen |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Isolation: | 2500 Vrms (photo-couple) |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| CPU Module | |
|---|---|
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |

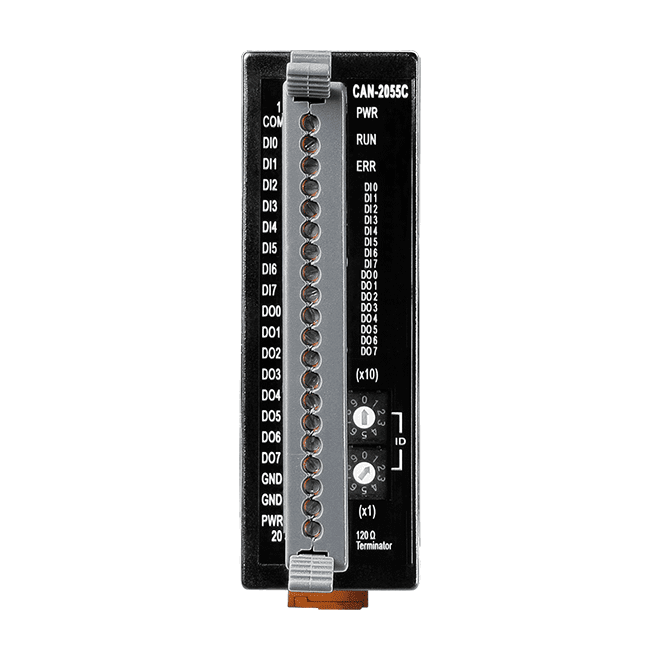

| Status | 3 LEDs to PWR, RUN and ERR |
| Digital Input | |
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 ~ +30 VDC |
| OFF Voltage Level | +1 VDC Max |
| Input Impedance | 3kΩ, 0.3W |
| Digital Output | |
| Channels | 8 |
| Type | Open emitter |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +10 ~ +30 VDC |
| Load Current | 700mA, each channel |
| Intra-module Isolation | 3750 Vrms |
| CANopen | |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |

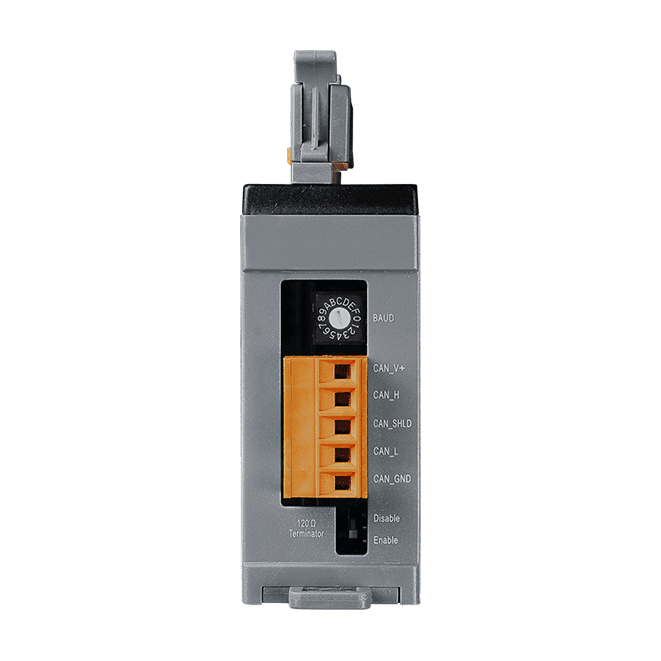

| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02, CiA 401 v2.1 |
| Node ID | 1 ~ 99 |
| No. of PDOs | 10 RxPDO , 10 TxPDO |
| PDO Mode | Event-triggered, remotely-requested, Cyclic and acyclic SYNC |
| Error Control | Node Guarding protocol / Heartbeat Producer |
| NMT | Slave |
| EMCY Message | Yes |
| Power | |
| Consumption | 1.7 W |
| Mechanical | |
| Dimensions (mm) | 33 x 99 x 78 ( W x L x H ) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
