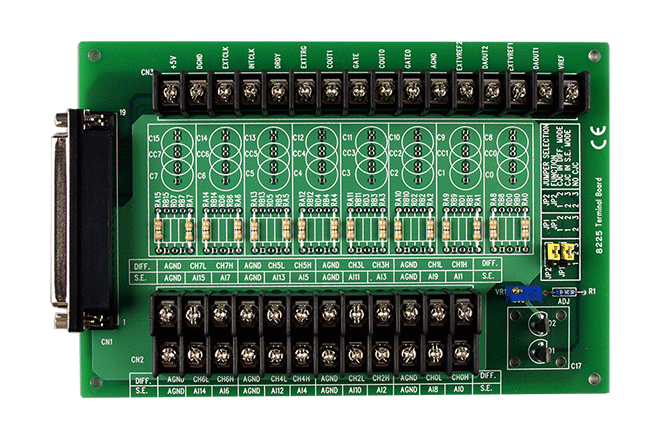

DB-8225 DB37 Screw Terminal Board for A-82X and PCI-1800U DAQ Cards
Female DB37 to screw terminal board for A-82X and PCI-1800U series, giving 16 single-ended or 8 differential channels, supplied with a CA-3710 DB37 cable.
- Converts the 37-pin DB37 I/O port of A-82X and PCI-1800U series cards to screw terminals
- 16 channels single-ended or 8 channels differential
- Jumper-selectable single-ended or differential mode on analog input channel 1
- On-board cold junction circuit on analog input channel 1
- Pads for break detection, low-pass filter, current shunt and voltage attenuation
- Supplied with CA-3710 DB37 male-to-male cable, 45º, 1M
65,00 € pro Stück
| 1–9 Stück | 65,00 € | |
|---|---|---|
| 10–30 Stück | 63,00 € | −3 % |
| ab 31 Stück | 62,00 € | −5 % |
Produktinformationen "DB-8225 DB37 Screw Terminal Board for A-82X and PCI-1800U DAQ Cards"
The DB-8225 breaks out the 37-pin DB37 I/O connector of the A-82X and PCI-1800U series to a screw terminal board, so field wiring can be landed without custom cabling. It provides 16 single-ended or 8 differential channels, and the package includes a CA-3710 DB37 male-to-male cable (45º, 1M).
Analog input channel 1 carries an on-board cold junction circuit, and the channel can be set to single-ended or differential mode by jumper. Solder pads allow break detection, low-pass filtering, current shunt and voltage attenuation to be added to the signal path where the application requires them.
The board measures 170 mm x 114 mm and is rated for an operating temperature of 0~ +60 °C, a storage temperature of -30 ~ +80 °C and 10% ~ 90% humidity, non-condensing. It carries CE, UKCA, FCC and WEEE marks.
Applications
- Wiring field signals to A-82X and PCI-1800U series data acquisition cards
| Product type: | Screw terminal board |
|---|---|
| Interface: | DB37 |
| Ports: | 16 single-ended / 8 differential |
| Operating temperature: | 0 ~ +60 °C |
