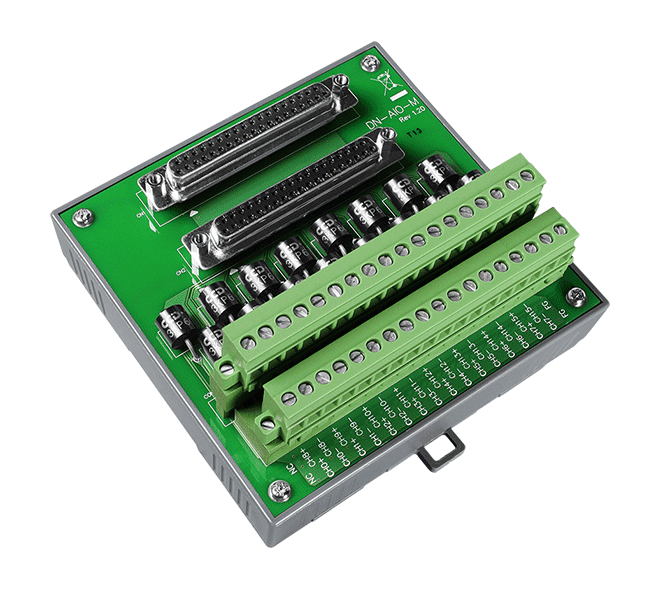

DN-AIO-M Universal Termination Board for Analog I/O
Compact universal termination board for analog input and output modules, offering general wiring access for most analog module types. Supports DIN-rail and wall mounting.
- General termination board suited to most analog input and output module types
- Compact 112 x 117 x 29 mm size, in line with other mini termination boards
- DIN-rail and wall mounting
- Operating temperature -25 ~ 75 °C
- Humidity 5 ~ 95% RH, non-condensing
- Pin assignment and wiring covered for voltage and current input and output
191,00 € pro Stück
| 1–9 Stück | 191,00 € | |
|---|---|---|
| 10–30 Stück | 185,00 € | −3 % |
| ab 31 Stück | 181,00 € | −5 % |
Produktinformationen "DN-AIO-M Universal Termination Board for Analog I/O"
The DN-AIO-M CR is a universal termination board for analog input and output modules. It is designed as a general-purpose wiring point for most kinds of analog module, so one board can serve a range of analog I/O installations.
Its footprint is small, matching other mini termination boards, which makes it easier to fit into control panels where space is limited. It can be mounted on a DIN rail or on a wall.
- Pin assignment and wiring information covers voltage and current input and output configurations.
- Operating range of -25 ~ 75 °C and 5 ~ 95% RH, non-condensing.
- Carries CE, UKCA, FCC, RoHS and WEEE markings.
Applications
- Terminating field wiring for analog input modules
- Terminating field wiring for analog output modules
- Compact wiring points in control panels and installations
| Product type: | Termination board |
|---|---|
| Operating temperature: | -25 ~ 75 °C |
| Mounting: | DIN-rail & wall |
Technische Daten
| Digital Output | |
|---|---|
| Channels | 16 |
| Mechanical | |
| Dimensions (mm) | 112 x 117 x 29 |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ 75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
