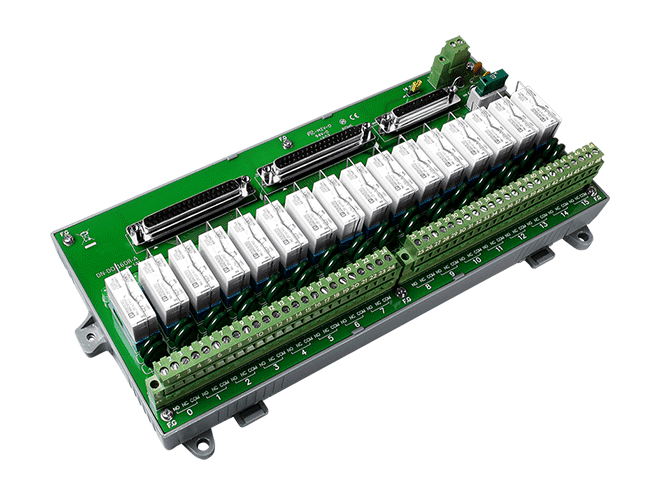

DN-DO-16DR-A Termination Board, 16-ch Relay Digital Output with Surge Protection
Relay termination board for digital output channels 0 to 15, with SPDT (Form C) contacts, removable relays and varistor surge protection on each channel.
- Form C (SPDT) relay outputs on channels 0 to 15, giving N.O. and N.C. contacts per channel
- Two varistors per channel on the N.O. and N.C. contacts for protection against high-voltage transients and surges
- Removable relays
- Rated 6 A / 10 A peak, 250 VAC rated and 400 VAC maximum switching voltage
- Operate time 8 ms, release time 5 ms, mechanical endurance 20 x 10^6
- DIN-rail and wall mounting, 126.6 x 274.6 x 25.5 mm
429,00 € pro Stück
| 1–9 Stück | 429,00 € | |
|---|---|---|
| 10–30 Stück | 417,00 € | −3 % |
| ab 31 Stück | 408,00 € | −5 % |
Produktinformationen "DN-DO-16DR-A Termination Board, 16-ch Relay Digital Output with Surge Protection"
DN-DO-16DR-A is a relay termination board that serves digital output channels 0 to 15. Each channel is fitted with a Form C (SPDT) relay, so every output provides both a normally open and a normally closed contact. Engineers can wire the channel for positive logic (N.O.), negative logic (N.C.), or use both contacts from the same output to extend control logic.
Each channel carries two varistors, one across the N.O. contact and one across the N.C. contact, to suppress high-voltage transients and surges on the control loop. The relays are removable, which simplifies replacement and maintenance without rewiring the field side.
The board is rated at 6 A rated current (10 A maximum peak) and 250 VAC rated voltage (400 VAC maximum switching voltage), with a relay operate time of 8 ms and a release time of 5 ms. It mounts on a DIN rail or on a wall and operates from -25 ~ 75 °C.
Applications
- Switching control loops with transient and surge protection
- Digital output termination for remote I/O systems
| Product type: | Termination board |
|---|---|
| Digital outputs: | 16 |
| Relay outputs: | 16 |
| Operating temperature: | -25 ~ 75 °C |
| Mounting: | DIN-rail & wall |
Technische Daten
| Digital Output | |
|---|---|
| Type | Form C Relay |
| Relay Output | |
| Contact Rating | Contact configuration: SPDT; Rated current/Max. peak current: 6 A/10 A; Rated voltage/Max. switching voltage: 250 VAC/400 VAC; Minimum switching Load: 300 mW |
| Operate Time | 8 ms |
| Release Time | 5 ms |
| Mechanical Endurance | 20 x 10^6 |
| Mechanical | |
| Dimensions (mm) | 126.6 x 274.6 x 25.5 |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ 75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
