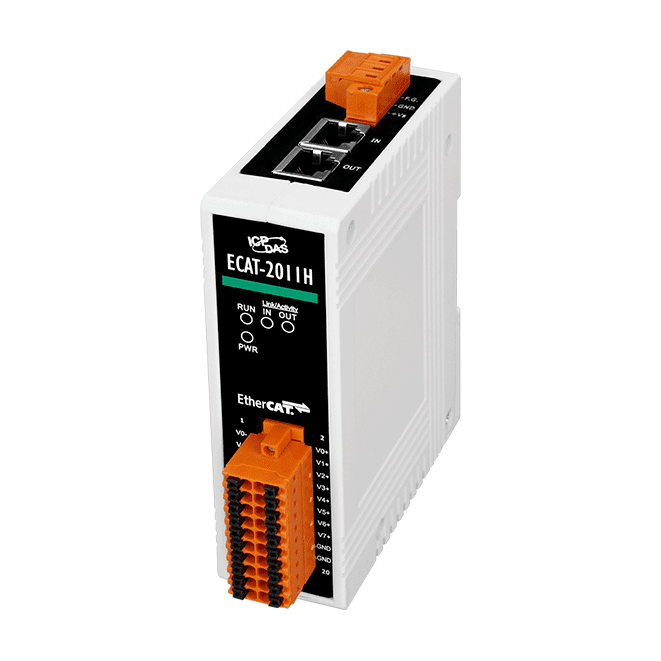

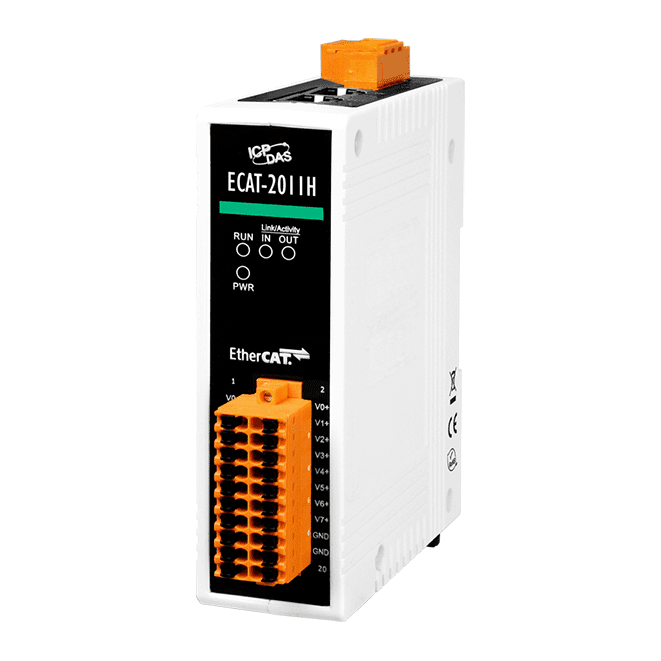

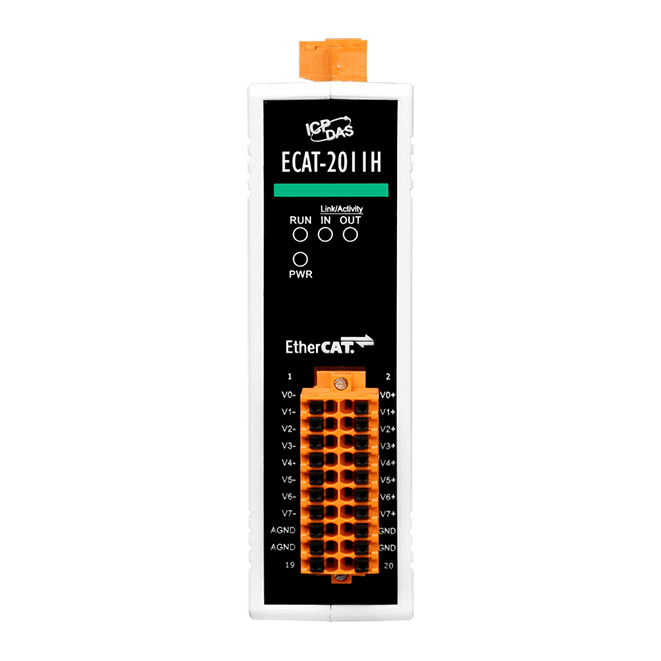

ECAT-2011H EtherCAT I/O Module, 12-bit 16-ch Analog Input
EtherCAT SubDevice analog input module with 16 single-ended or 8 differential channels, 12-bit resolution and software-selectable voltage or current ranges.
- Software-selectable 8 differential or 16 single-ended analog inputs
- 12-bit resolution with voltage and current ranges, including 4~20 mA
- 1 ms cycle time and 1k Hz sampling rate per channel
- Two RJ-45 ports for daisy-chain wiring, up to 100 m between stations
- EtherCAT conformance test tool verified
- Overvoltage protection of ±35 VDC on inputs
361,00 € pro Stück
| 1–9 Stück | 361,00 € | |
|---|---|---|
| 10–30 Stück | 350,00 € | −3 % |
| ab 31 Stück | 343,00 € | −5 % |
Produktinformationen "ECAT-2011H EtherCAT I/O Module, 12-bit 16-ch Analog Input"
The ECAT-2011H is an EtherCAT SubDevice analog input module for engineers who need to bring 12-bit voltage or current signals onto an EtherCAT network. Each channel can be set in software as a differential or single-ended input, so one module covers either 8 differential or 16 single-ended signals.
Two RJ-45 bus ports allow modules to be daisy-chained, which reduces cabling and suits star, line or ring topologies. Input status is delivered through process data, and the module has been verified with the EtherCAT conformance test tool.
Selectable ranges include 0~10 V, ±10 V, ±5 V, ±2.5 V, 0~20 mA, ±20 mA, 4~20 mA and ±4~20 mA. The module runs from +10 to +30 VDC, mounts on DIN-rail and is specified for -25 ~ +75 °C operation. Range and filter settings are not configurable per channel.
Applications
- Semiconductor Tools
- Metal Forming
- Packaging
- Injection Molding
- Assembly Systems
- Printing Machines
- Robotics
| Product type: | Analog Input Module |
|---|---|
| Interface: | EtherCAT |
| Protocol: | EtherCAT |
| Analog inputs: | 16 SE / 8 Diff |
| Ports: | 2 x RJ-45 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: ±1 kV Class A; Power: ±1 kV Class A |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Channel |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Analog Input | |
| Channels | 8 Differential or 16 Single-ended (Software Selectable) |
| Type | Voltage, Current |
| Range | 0~10V, ±10 V, ±5 V, ±2.5 V, 0~ 20 mA, ±20 mA, 4~20 mA or ±4 ~20 mA (Software selectable) |
| Resolution | 12-bit |
| Accuracy | 0.2% of FSR |
| Sampling Rate | 1k Hz per channel |
| Overvoltage Protection | ±35 VDC |
| Individual Channel Configuration | Yes (Range & Filter setting function is not supported) |
| Open Wire Detection | No |
| EtherCAT | |
| Ports | 2 x RJ-45 |
| Distance Between Stations | 100 m Max. (100Base-TX) |
| Data Transfer Medium | Ethernet/EtherCAT cable (Min. CAT5), shielded |
| Cycle Time | 1 ms |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 4 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 108 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
