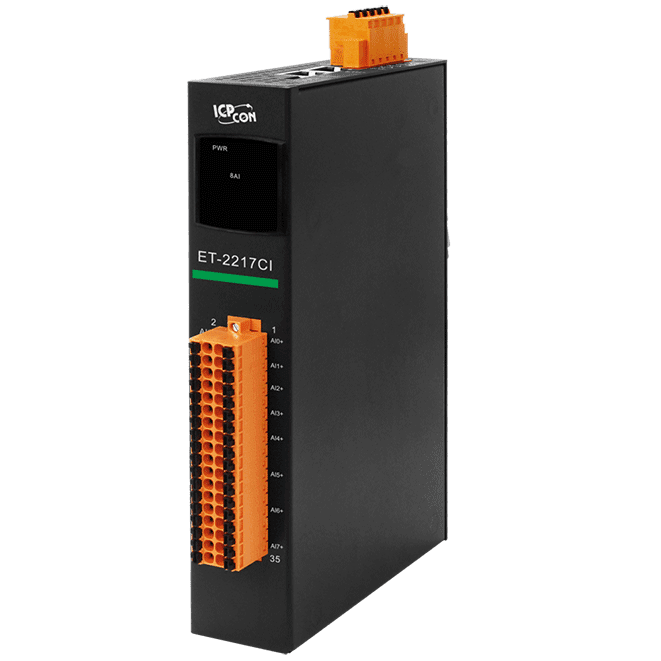

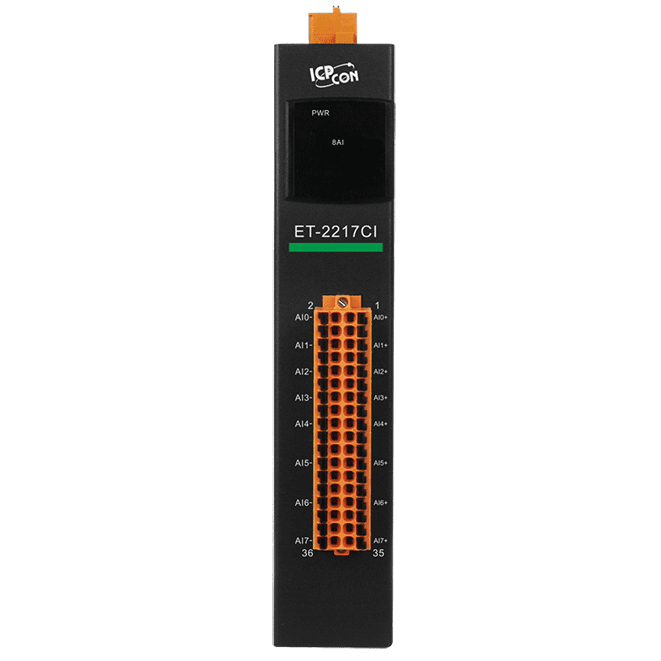

ET-2217CI Ethernet I/O Module, 8-ch Analog Input with 2-port Switch
Ethernet I/O module with eight differential analog inputs, channel-to-channel isolation and a 2-port switch for daisy-chain wiring. Supports Modbus TCP, Modbus UDP and MQTT.
- 8 differential analog inputs, voltage or current selected in software
- 16-bit resolution with ±0.1% of FSR accuracy
- Adjustable sampling at 10 Hz or 200 Hz per channel
- Time-stamped records, up to 320,000 per channel
- Modbus TCP, Modbus UDP and MQTT support with built-in web server

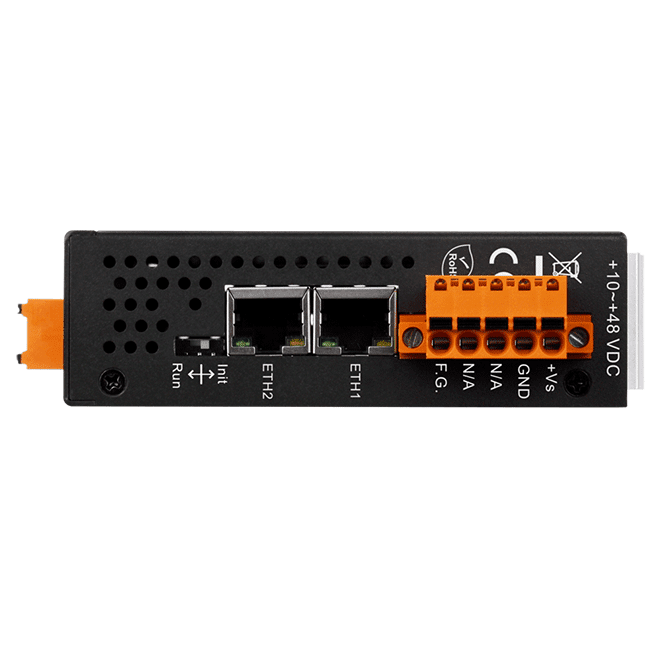

- 2-port 10/100 Base-Tx switch with LAN bypass for daisy-chain wiring
617,00 € pro Stück
| 1–9 Stück | 617,00 € | |
|---|---|---|
| 10–30 Stück | 598,00 € | −3 % |
| ab 31 Stück | 586,00 € | −5 % |
Produktinformationen "ET-2217CI Ethernet I/O Module, 8-ch Analog Input with 2-port Switch"
The ET-2217CI CR is an 8-channel analog input module for engineers who need isolated, network-connected measurement. Each differential input can be set in software as voltage or current, with ranges from ±1 V to ±10 V and 0 ~ 20 mA or 4 ~ 20 mA. The 16-bit inputs have an accuracy of ±0.1% of FSR, and each channel is isolated from the others at 3000 VDC.
Measurements are recorded with time stamps at a normal rate of 10 Hz or a fast rate of 200 Hz per channel, with up to 320,000 records per channel. Data can be read out over Modbus TCP, Modbus UDP or MQTT, or exported to CSV using the LogReader tool. The built-in web server, password and IP filter access control, and LAN bypass on the 2-port switch support daisy-chain wiring.
- Overvoltage protection up to +120 VDC and 50 mA overcurrent protection at 110 VDC (max.)
- Open wire detection on each 4 ~ 20 mA input
- EFT, ESD and surge protection to IEC 61000-4-4, IEC 61000-4-2 and IEC 61000-4-5

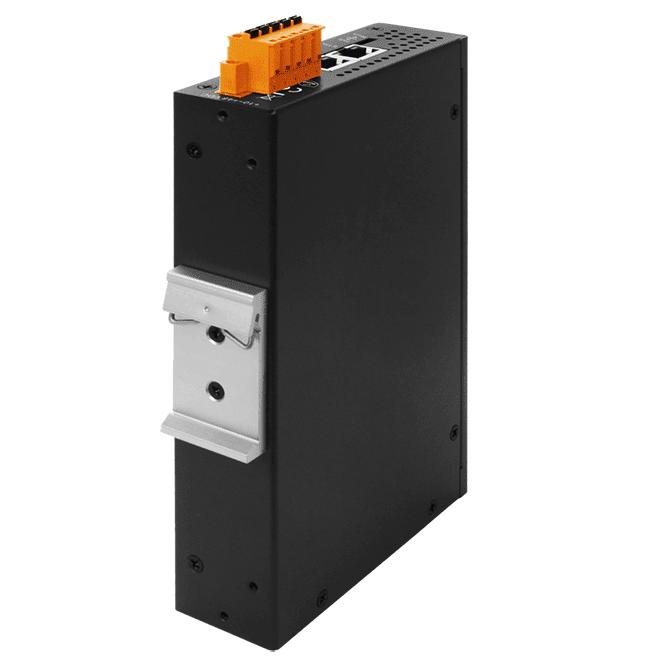

- DIN-rail or wall mounting in a metal housing, rated IP30
Applications
- Factory Automation
- Machine Automation
- Building Automation
- Remote Diagnosis & Maintenance
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT |
| Analog inputs: | 8 |
| Ports: | 2 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit ARM |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet |
| System | |
| Real Time Clock | Yes |
| Data Logger | Up to 320,000 records |
| Analog Input | |
| Channels | 8 Differential |
| Type | Voltage, Current (Software configurable ) |
| Range | Voltage: ±1 V, ±2.5 V, ±5 V, ±10 V Current: 0 ~ 20mA, 4 ~ 20mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | Normal Mode: 10 Hz (per channel) Fast Mode: 200 Hz (per channel) |
| Input Impedance | Voltage: 20 MΩ Current: 135 Ω |
| Overvoltage Protection | +120 VDC |
| Overcurrent Protection | 50 mA at 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Channel-to-Channel Isolation | 3000 VDC |
| Open Wire Detection | For 4 ~ 20 mA only |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 5.4 W (max.) |
| Powered from Terminal Block | +10 ~ +48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 33 x 184 x 129 (W x L x H) |

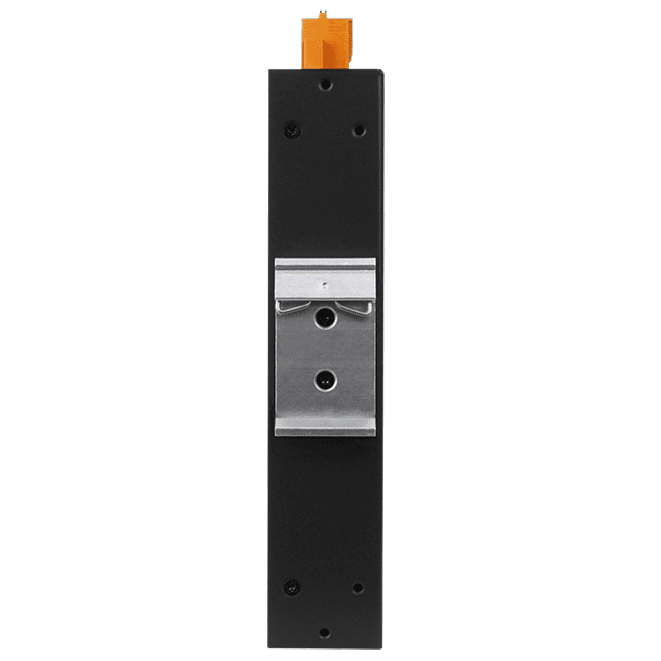

| Installation | DIN-Rail mounting / Wall mounting (Optional ASO-0015) |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
