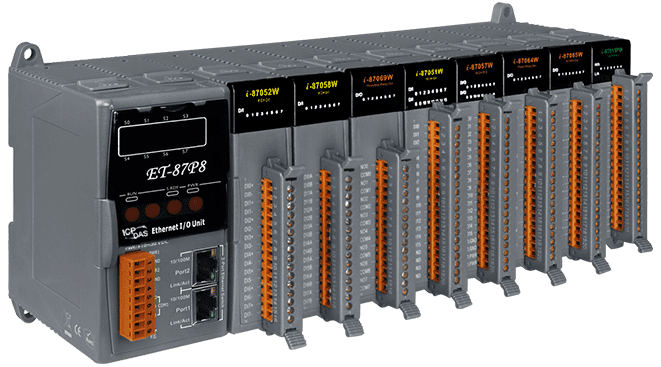

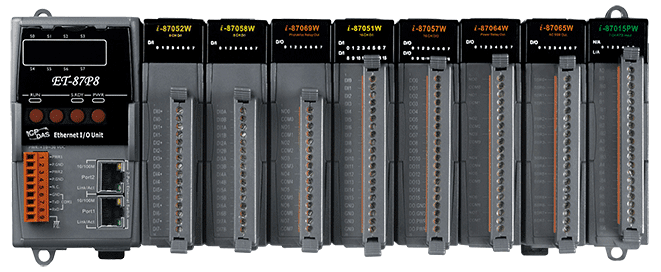

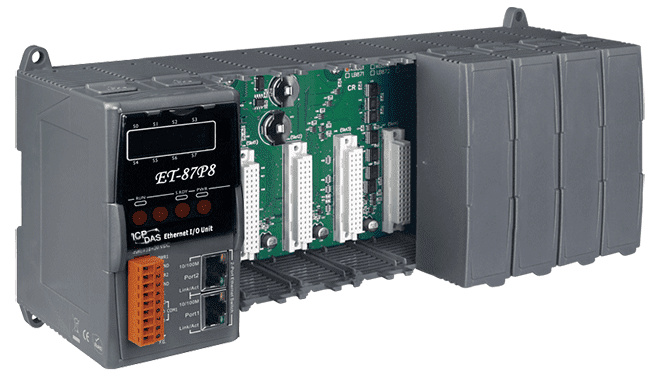

ET-87P8 8-Slot Ethernet I/O Expansion Unit for I-87K Modules, Modbus TCP
8-slot Ethernet expansion unit that extends I-87K series I/O modules over Ethernet, with two switch ports for daisy-chaining and Modbus TCP support.
- Two Ethernet RJ-45 ports (10/100 Base-TX) for daisy-chain topology with LAN bypass
- Eight slots for I-87K series I/O modules, with hot swap allowed
- Modbus TCP slave and Modbus TCP to RTU gateway functions
- DCON (ASCII) protocol on the RS-232 console port
- Wide 10 ~ 30 VDC power input, 1 kV isolated, with redundant power inputs
- Operating temperature -25 ~ +75 °C
479,00 € pro Stück
| 1–9 Stück | 479,00 € | |
|---|---|---|
| 10–30 Stück | 464,00 € | −3 % |
| ab 31 Stück | 455,00 € | −5 % |
Produktinformationen "ET-87P8 8-Slot Ethernet I/O Expansion Unit for I-87K Modules, Modbus TCP"
The ET-87P8 CR is a remote intelligent I/O expansion unit that takes up to eight I-87K series I/O modules and makes them available over Ethernet. It suits industrial monitoring and control installations where I/O needs to sit close to the process while the control system stays elsewhere on the network.
Two built-in Ethernet switch ports let you daisy-chain units or connect other Ethernet devices in series, which reduces cabling and saves panel space. Hot swap, automatic configuration and LED fault indication keep installation and maintenance simple. The unit accepts a wide 10 ~ 30 VDC isolated supply and operates from -25 ~ +75 °C, so it is suited to harsh, electrically noisy environments.
The ET-87P8 CR can be addressed over Modbus TCP as a slave, or used as a Modbus TCP to RTU gateway. DCON (ASCII format) is available on the RS-232 console port. The ordering code is listed as RoHS compliant.
Applications
- Industrial monitoring and control
- Remote I/O expansion over Ethernet
- Distributed I/O in harsh or electrically noisy environments
| Product type: | I/O Expansion Unit |
|---|---|
| Interface: | 1 RS-232, 2 Ethernet |
| Protocol: | DCON, Modbus TCP |
| Ports: | 2 Ethernet, 1 RS-232 |
| Isolation: | 1 kV |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Not specified |
Technische Daten
| Display | |
|---|---|
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x Power, 1 x System, 1 x Auto Configuration, 8 x Slot |
| I/O Expansion | |
| I/O Type | I-87K series |
| Slots | 8 |
| HMI | |
| Push Button | 4 |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX |
| Protocol | Modbus TCP Slave, Modbus TCP to RTU Gateway |
| COM Ports | |
| Ports | 1 x RS-232 (Console) |
| Protocol | DCON (ASCII Format) |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 6.0 W |
| Mechanical | |
| Dimensions (mm) | 312 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
