GPS-721U-MRTU GPS/GLONASS Receiver Module with RS-232/RS-485 and Modbus RTU
GPS/GLONASS receiver module with RS-232 and RS-485 ports, supporting NMEA 0183, DCON and Modbus RTU, plus a digital output and a 1 PPS timing output for precise timekeeping.
- GPS/GLONASS reception with a u-blox chipset and 56 tracking channels
- RS-232 and RS-485 ports supporting NMEA 0183, DCON or Modbus RTU
- 1 digital output (non-isolated open collector, sink) and 1 PPS output, 100 ms pulse per second by default
- Cold start acquisition of 29 s typical (open sky); tracking sensitivity up to -161 dBm
- Autonomous position accuracy of 2.5 m and 2.0 m with SBAS
- Non-regulated +10 to +30 VDC input, 2.5 W consumption
218,00 € pro Stück
| 1–9 Stück | 218,00 € | |
|---|---|---|
| 10–30 Stück | 212,00 € | −3 % |
| ab 31 Stück | 207,00 € | −5 % |
Produktinformationen "GPS-721U-MRTU GPS/GLONASS Receiver Module with RS-232/RS-485 and Modbus RTU"

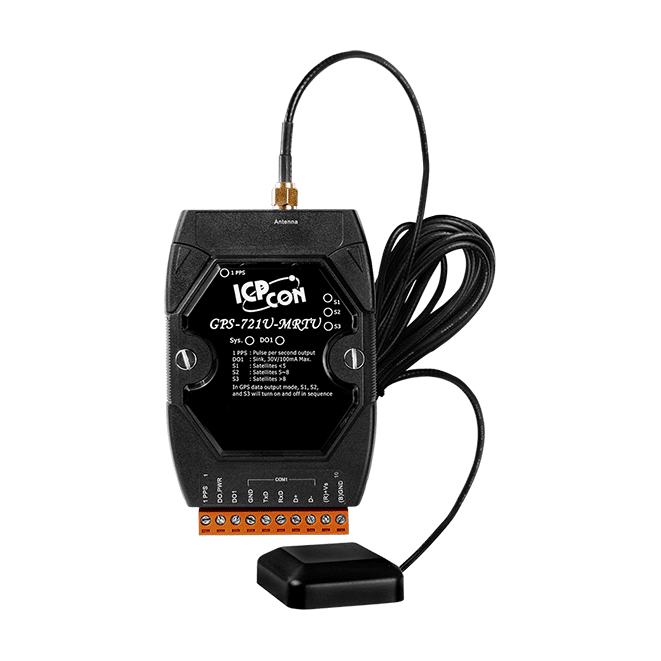

The GPS-721U-MRTU CR is a GPS/GLONASS receiver module built around a u-blox solution. It reports position over RS-232 or RS-485 using NMEA 0183, DCON or Modbus RTU, so it can feed a host controller, PLC or SCADA system without a separate protocol converter.
Beyond positioning, the module adds a digital output and a pulse-per-second (PPS) signal. The default PPS output is a 100 ms pulse each second, which can be used for precise timekeeping, time measurement and as a time synchronisation source. The GNSS system selection is made in DCON Utility Pro, with a power cycle required for the change to take effect.
This ordering code includes a 5 m GPS antenna (ANT-115-03-02). Status LEDs show power and communication activity as well as GNSS status, and the module runs from a non-regulated +10 to +30 VDC supply over an operating range of -25 to +75 °C.
Applications
- Automotive navigation
- Personal positioning and navigation
- Marine navigation
- Satellite time correction
- Precise timekeeping and time measurement
| Product type: | GPS/GLONASS receiver module |
|---|---|
| Interface: | RS-232, RS-485 |
| Protocol: | DCON, Modbus RTU, NMEA 0183 |
| Digital outputs: | 1 |
| Ports: | 2 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Housing: | Plastic |
Technische Daten
| LED Indicators | |
|---|---|
| Status | 1 x Power/Communication 3 x GNSS |
| GPS/GNSS | |
| Acquisition Time | Cold Start (Open Sky) = 29 s (typical) |
| Chip | u-Blox solution |
| Frequency | L1 1575.42 MHz, C/A code |
| Max. Altitude | <50,000 m |
| Max. Velocity | <500 m/s |
| Position Accuracy | Autonomous: 2.5 m SBAS: 2.0 m |
| Protocol | NMEA 0183 (9600 bps, N81 Fixed) |
| Sensitivity | Tracking: Up to -161 dBm Cold start: Up to -148 dBm |
| Support Channels | 56 |
| 1 PPS | Pulse per second output (Default 100 ms pulse/sec) |
| Digital Output | |
| Channels | 1 (Sink) |
| Type | Non-isolated Open Collector |
| Load Voltage | +5 VDC~ +30 VDC |
| Load Current | 100 mA |
| COM Ports | |
| Ports | 1x RS-232, 1x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | N81, N82, E81, O81 |
| Protocol | RS-232/RS-485: DCON, Modbus RTU or NMEA 0183 (9600bps,N81 fixed) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (Non-regulated) |
| Consumption | 2.5 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 x 117 x 35 (W x L x D) |
| Weight | 200 g |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +80°C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
