GW-2439M BACnet/IP Client to Modbus TCP/RTU Gateway, up to 9,000 Objects
BACnet/IP Client to Modbus TCP Server and Modbus RTU Slave gateway for mapping up to 9,000 BACnet object present values into Modbus registers, with support for up to 10 BACnet/IP servers.
- Converts BACnet/IP object values to Modbus registers for Modbus TCP and Modbus RTU masters
- Acts as a BACnet/IP Client for up to 10 BACnet/IP servers
- Supports up to 9,000 BACnet object present values in the Modbus mapping
- Supports BACnet object types AI, AO, AV, BI, BO, BV, MSI, MSO and MSV
- Receives BACnet/IP messages forwarded by BBMDs across multiple IP subnets
- Batch reads multiple objects from a single BACnet device
516,00 € pro Stück
| 1–9 Stück | 516,00 € | |
|---|---|---|
| 10–30 Stück | 501,00 € | −3 % |
| ab 31 Stück | 491,00 € | −5 % |
Produktinformationen "GW-2439M BACnet/IP Client to Modbus TCP/RTU Gateway, up to 9,000 Objects"
GW-2439M is a network gateway for integrating BACnet/IP devices into Modbus-based host systems. It works as a BACnet/IP Client on one side and as a Modbus TCP Server and Modbus RTU Slave on the other, so a SCADA system, PLC or other Modbus master can read and write BACnet object values without implementing BACnet itself.
Engineers typically choose the GW-2439M for multi-subnet BACnet/IP installations. It can receive BACnet/IP messages forwarded between subnets by a BBMD and identify their source devices, which helps with device discovery in large buildings, campuses and industrial sites. Batch reads of several objects from one BACnet device reduce the number of individual requests on the network.
Configuration is handled with a dedicated software tool that scans BACnet/IP servers and their objects, lets you set up object mappings and generates the Modbus mapping table automatically. Configuration files can be imported and exported to speed up deployment. The unit is CE, UKCA, RoHS and WEEE marked and mounts on a DIN rail.
Applications
- Building automation
- HVAC control
- Lighting control
- Access control
- BEMS and SCADA integration
| Product type: | Gateway |
|---|---|
| Interface: | RJ-45 10/100Base-TX |
| Protocol: | BACnet/IP, Modbus RTU, Modbus TCP |
| Ports: | 1 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Technische Daten

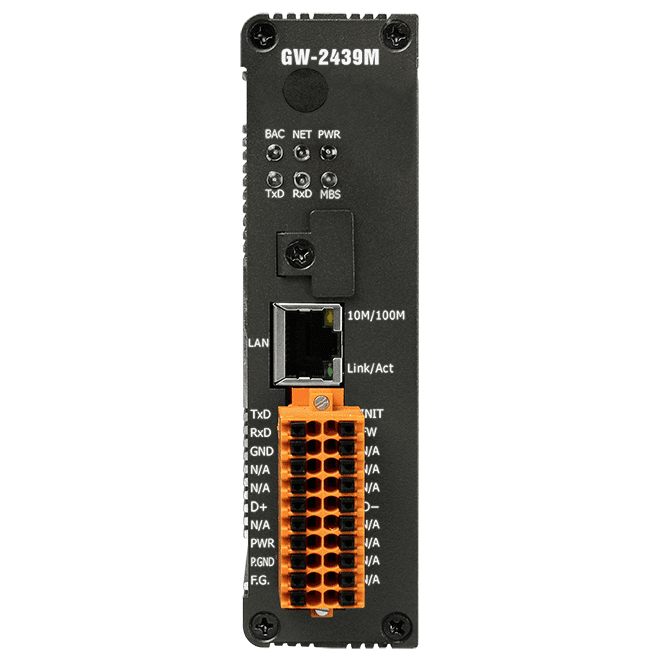

| LED Indicators | |
|---|---|
| Status | Power (1), BACnet/IP Status (1), BACnet/IP Net(1), Modbus TCP TxD/RxD/Link (3) Ethernet LED Ethernet Status (RJ-45) (2) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-TX |
| Protocol | Modbus TCP Server and Modbus RTU Slave(up to 2 TCP connections) |
| BACnet/IP | |
| Protocol | BACnet/IP Client (Supports up to 10 BACnet/IP Servers) |
| Objects | AI, AO, AV, BI, BO, BV, MSI, MSO, MSV(Supports up to 9000 BACnet objects' present value) |
| BIBBs | DS-RP-A, DS-RPM-A, DS-WP-A, DS-WPM-A, DM-DDB-A, DM-DOB-A, DM-DCC-A, DM-RD-A |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Consumption | 5 W @ 24 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 33 x 120 x 116 |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
