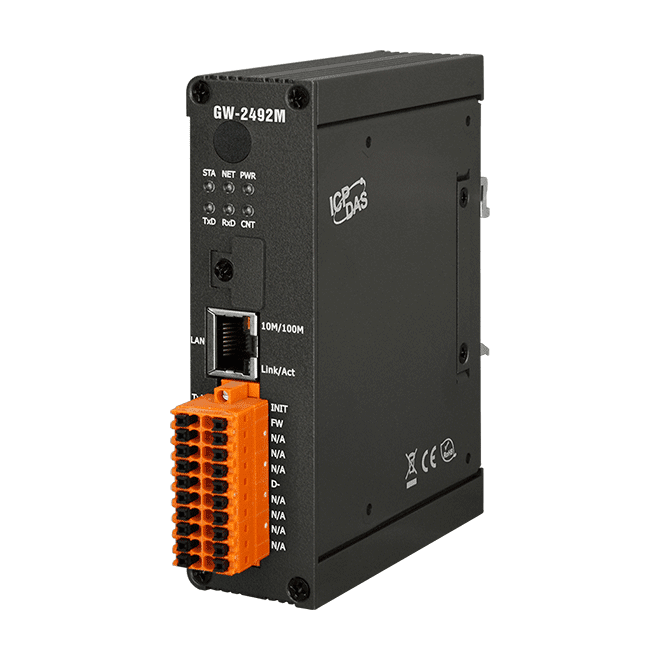

GW-2492M BACnet/IP to Modbus RTU Gateway, 180-point I/O Mapping
DIN-rail BACnet/IP to Modbus RTU gateway that maps up to 180 DI, 180 DO, 180 AI and 180 AO from a Modbus RTU network onto BACnet objects, configured through a web browser.
- Modbus RTU master supporting up to 32 stations
- Read and write Modbus registers through BACnet objects
- Maps up to 180 DI, 180 DO, 180 AI and 180 AO to BACnet objects
- Supports BACnet AI, AO, AV, BI, BO, BV, MSI, MSO and MSV object types
- Configurable BACnet/IP server with multiple BIBBs supported
- Simple data translation between protocols
516,00 € pro Stück
| 1–9 Stück | 516,00 € | |
|---|---|---|
| 10–30 Stück | 501,00 € | −3 % |
| ab 31 Stück | 491,00 € | −5 % |
Produktinformationen "GW-2492M BACnet/IP to Modbus RTU Gateway, 180-point I/O Mapping"
GW-2492M lets BACnet/IP clients read and write Modbus RTU registers. The unit acts as a Modbus RTU master on its serial side, polling up to 32 stations, and presents the data to the building management network as BACnet objects.
Modbus discrete inputs, coils, input registers and holding registers can be mapped to any combination of BACnet AI, AO, AV, BI, BO, BV, MSI, MSO and MSV objects, with up to 180 points each for DI, DO, AI and AO. Simple data translation can be applied as values pass between the two protocols. Several BIBBs are supported, including DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DM-DDB-B, DM-DOB-B, DM-DCC-B and DM-RD-B.

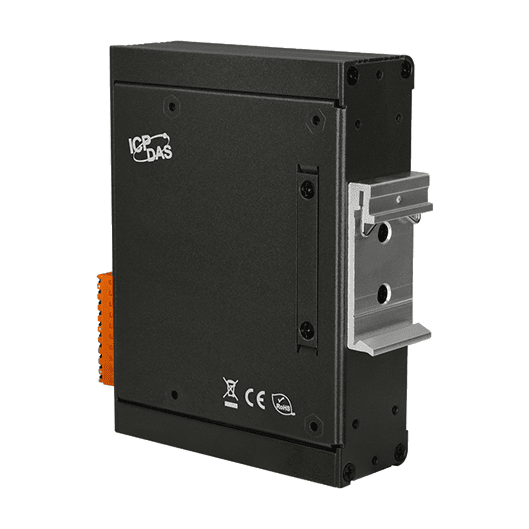

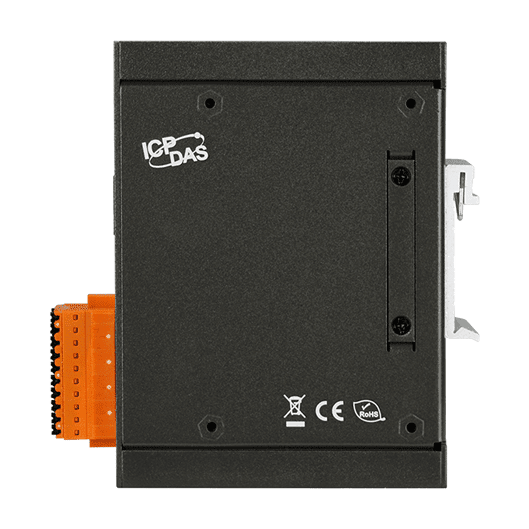

Setup is done entirely in a standard web browser, covering both the configurable BACnet/IP server and the Modbus RTU master. The metal housing mounts on DIN-rail and accepts a +10 ~ +30 VDC supply, with an operating range of -25 ~ +75 °C.
Applications
- Building Automation
- Heating, Ventilating, and Air-conditioning Control
- Lighting Control
- Access Control
- Fire Detection Systems
| Product type: | Gateway |
|---|---|
| Interface: | COM terminal block, RJ-45 Ethernet |
| Protocol: | BACnet/IP, Modbus RTU |
| Ports: | 1 x RJ-45 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |

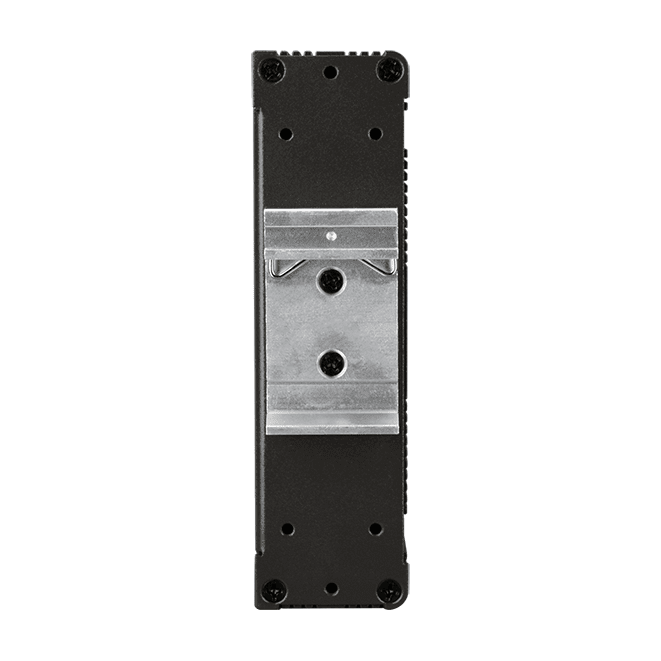

| Mounting: | DIN-rail |
| Housing: | Metal |
Technische Daten
| LED Indicators | |
|---|---|

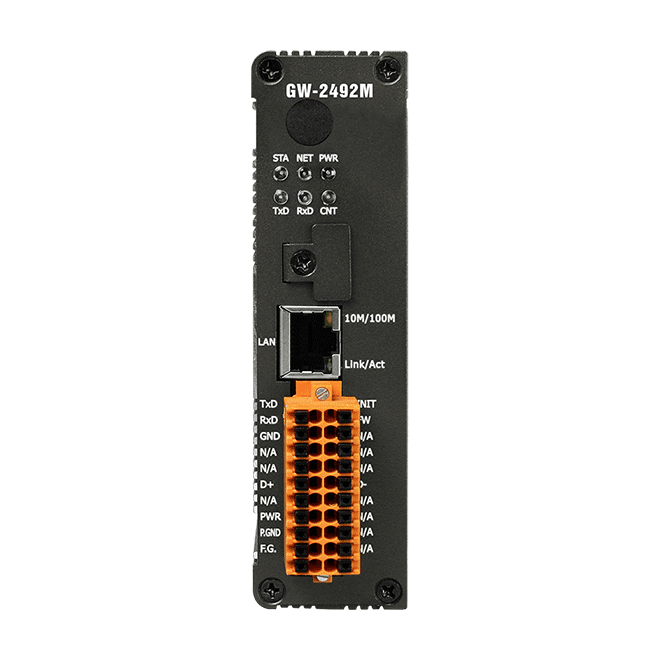

| Status | Power (1), BACnet/IP Status (1), BACnet/IP Net(1), Modbus RTU TxD/RxD/Link (3) Ethernet LED Ethernet Status (RJ-45) (2) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-TX |
| COM Ports | |
| Ports | termninal block(D+, D-, TxD, RxD, GND) |
| BACnet/IP | |
| Protocol | Modbus RTU Master (Supports up to 32 stations) |
| Objects | AI, AO, AV, BI, BO, BV, MSI, MSO, MSV(Convert modbus 180 DI, 180 DO, 180 AI and 180 AO) |
| BIBBs | DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-RD-B |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Consumption | 5 W @ 24 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 33 x 120 x 116 |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
