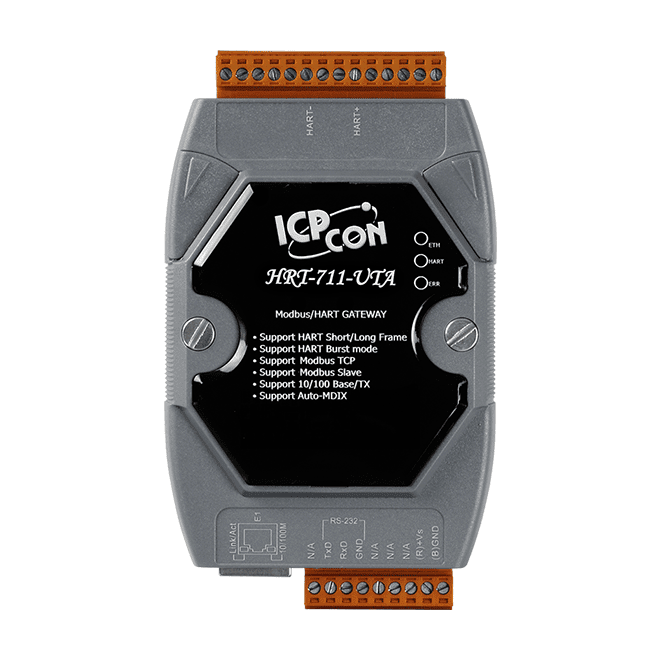

HRT-711-UTA Modbus TCP/UDP to HART Gateway for -40 °C Applications
Modbus TCP/UDP to HART gateway with one HART port for up to 15 devices, rated for -40 to +75 °C operation. Connects HART transmitters and actuators into Modbus networks.
- One HART port for 2-wired or 4-wired devices, point-to-point or multi-drop, up to 15 HART devices
- Modbus TCP/UDP server and Modbus slave mode for integration into Modbus networks
- Supports HART short and long frame, burst mode and two HART masters
- Automatic acquisition of long frame address and on-line replacement of HART devices
- Firmware update via RS-232 COM port; configuration with supplied utility software
- Built-in watchdog, reverse polarity protection and over-voltage brown-out protection
467,00 € pro Stück
| 1–9 Stück | 467,00 € | |
|---|---|---|
| 10–30 Stück | 453,00 € | −3 % |
| ab 31 Stück | 444,00 € | −5 % |
Produktinformationen "HRT-711-UTA Modbus TCP/UDP to HART Gateway for -40 °C Applications"
The HRT-711-UTA is a gateway for HART master communication. It lets a Modbus master read from and access HART field devices such as transmitters and actuators, so existing HART instrumentation can be integrated into a Modbus network without redesigning the field wiring.
The gateway offers one HART port that supports 2-wired or 4-wired devices in point-to-point or multi-drop topology, with up to 15 HART devices. Two HART masters can be used, and both short and long frame formats are supported along with burst mode. Configuration is carried out with the supplied utility software, and firmware can be updated through the RS-232 COM port.
This ordering code is the variant specified for -40 °C applications, with an operating range of -40 to +75 °C. It is suited to industrial, factory and process automation installations where HART devices must be connected to Modbus TCP/UDP systems.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Gateway |
|---|---|
| Interface: | Ethernet, HART, RS-232 |
| Protocol: | HART, Modbus TCP/UDP |
| Ports: | 1 |
| Isolation: | UL1577 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Technische Daten
| Ethernet | |
|---|---|
| Ports | 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |
| COM Ports | |
| Ports | RS-232(3 wires) |
| HART | |
| Ports | 1 |
| Device | 2-wired or 4-wired HART devices |
| Topology | Point to Point or Multi-Drop |
| Data | Only Digital Data |
| Frame Type | Short and Long Frame |
| Burst Mode | Supported |
| Max. HART Device | 15 |
| Loop Resistor | 250 Ω resistor by Jumper |
| Isolation | UL1577 Spec. |
| Protocol | 2-pin screwed terminal block |
| Power | |
| Reverse Polarity Protection | Power reverse polarity protection, Over-voltage brown-out protection |
| Input Range | Unregulated +10 ~ +30 VDC |
| Consumption | 1 W |
| Mechanical | |
| Dimensions (mm) | 72 x 35 x 121 (W x L x H) Detail |

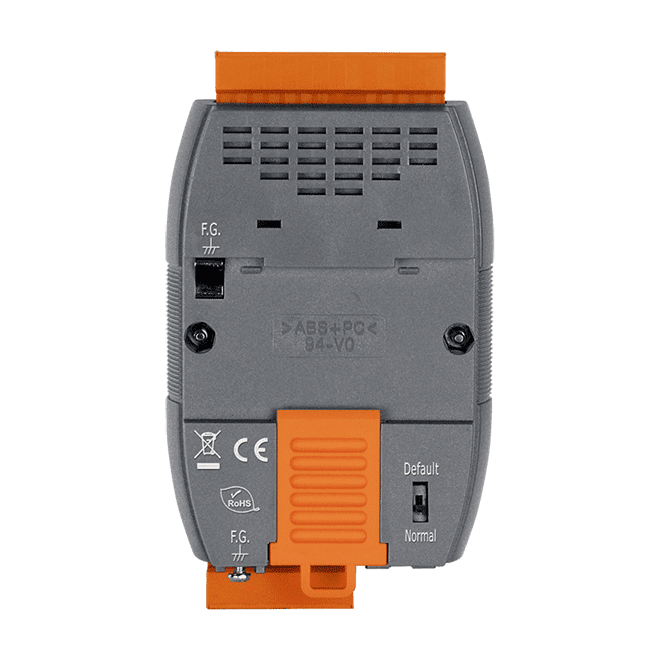

| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -40 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5% ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
