I-25091-ENC IP66 Industrial Enclosure with Built-in DIN-Rail
IP66 industrial enclosure for protecting a module in industrial areas or outdoor installations, with built-in DIN-rail, self-drilling mounting points and a -40 ~ +80 °C operating range.
- IP66 ingress protection rating
- Built-in DIN-rail for easy mounting
- Self-drilling mounting points
- Operating temperature -40 ~ +80 °C
- Dimensions 255 mm x 181 mm x 91 mm (W x L x H)
- Supplied with three cable glands: two 4PASO-0028 (Φ9 ~ 14 mm) and one 4SASO-0007 (Φ7 ~ 4 mm)
92,00 € pro Stück
| 1–9 Stück | 92,00 € | |
|---|---|---|
| 10–30 Stück | 89,00 € | −3 % |
| ab 31 Stück | 87,00 € | −5 % |
Produktinformationen "I-25091-ENC IP66 Industrial Enclosure with Built-in DIN-Rail"

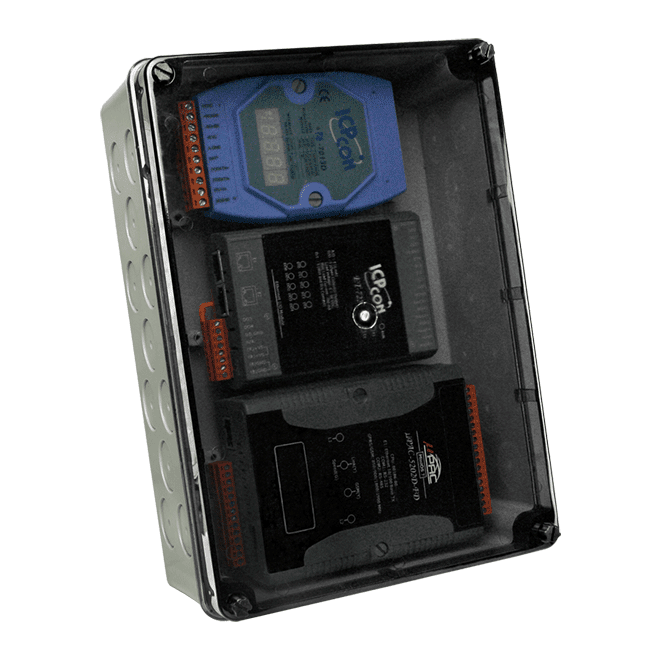

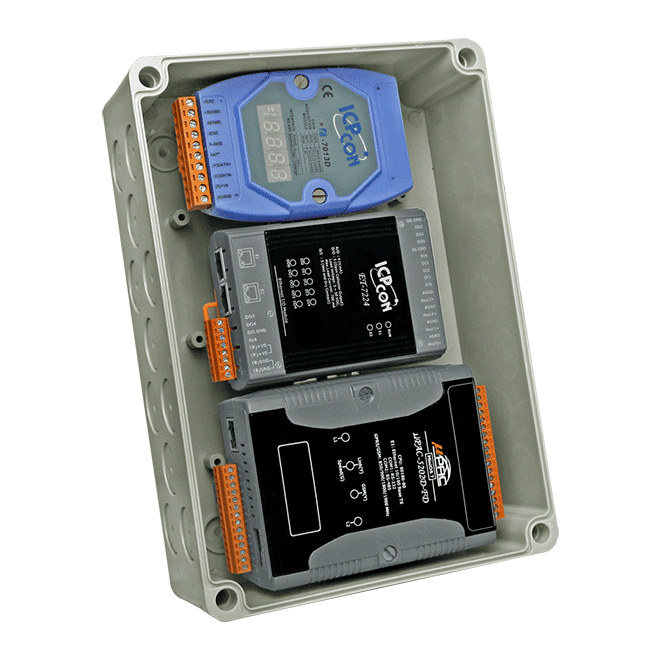

The I-25091-ENC is an IP66 enclosure for housing a module where moisture, dust and UV exposure are a concern. Its sturdy housing guards the enclosed equipment against moisture and UV rays, which suits both industrial cabinets and protected outdoor sites.
A built-in DIN-rail and self-drilling mounting points make the enclosure straightforward to install. The rated operating range of -40 ~ +80 °C allows deployment in demanding environments.

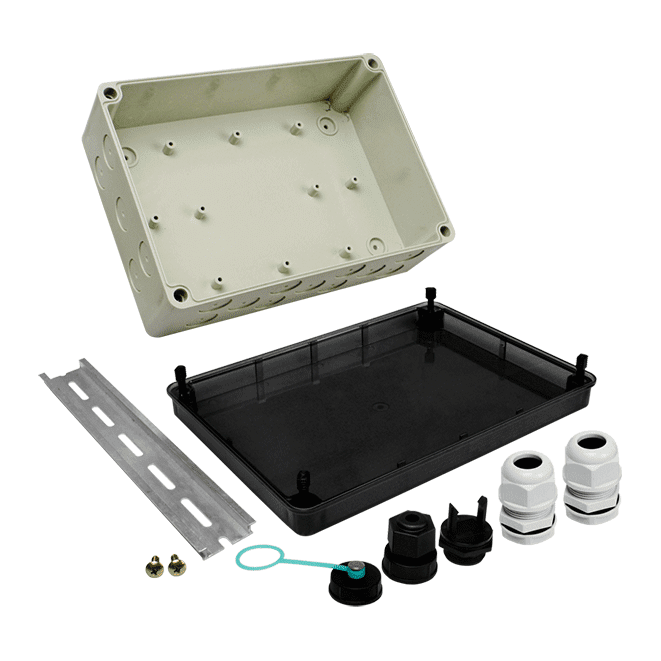

The kit includes the cable glands and fittings needed for field wiring:
- 2 x 4PASO-0028 cable glands (cable range Φ9 ~ 14 mm)
- 1 x 4SASO-0007 cable gland (cable range Φ7 ~ 4 mm)
- 4 captive lid screws
- 1 x DIN-rail, 210 mm
Applications
- Industrial installations
- Protected outdoor installations
| Product type: | Enclosure |
|---|---|
| Operating temperature: | -40 ~ +80 °C |
| Mounting: | DIN-rail |
| Housing: | IP66 |
Technische Daten
| Mechanical | |
|---|---|
| Dimensions (mm) | 255 mm x 181 mm x 91 mm (W x L x H) |
| Ingress Protection Rating | IP66 |
| Environment | |
| Operating Temperature | -40 ~ +80 °C |
Technische Daten laut Hersteller. Änderungen vorbehalten.
