I-7188E1 Programmable Ethernet to 1x RS-232 Converter, Device Server
Programmable Ethernet device server with one RS-232 port for connecting serial devices to an Ethernet network via Virtual COM or raw TCP. Operating range -25 ~ +75 °C.
- Connects one RS-232 serial device to Ethernet using a 10BASE-T NE2000 compatible controller
- Data transfer via Virtual COM or raw TCP connection
- VxComm driver for 32-bit and 64-bit Windows 7 SP1/10/2012/2016
- Built-in MiniOS7 with Xserver programming structure for custom Ethernet applications
- Serial interface up to 115200 bps with even, odd or no parity and 7 or 8 data bits
- Watchdog timer for use in harsh environments
147,00 € pro Stück
| 1–9 Stück | 147,00 € | |
|---|---|---|
| 10–30 Stück | 142,00 € | −3 % |
| ab 31 Stück | 139,00 € | −5 % |
Produktinformationen "I-7188E1 Programmable Ethernet to 1x RS-232 Converter, Device Server"

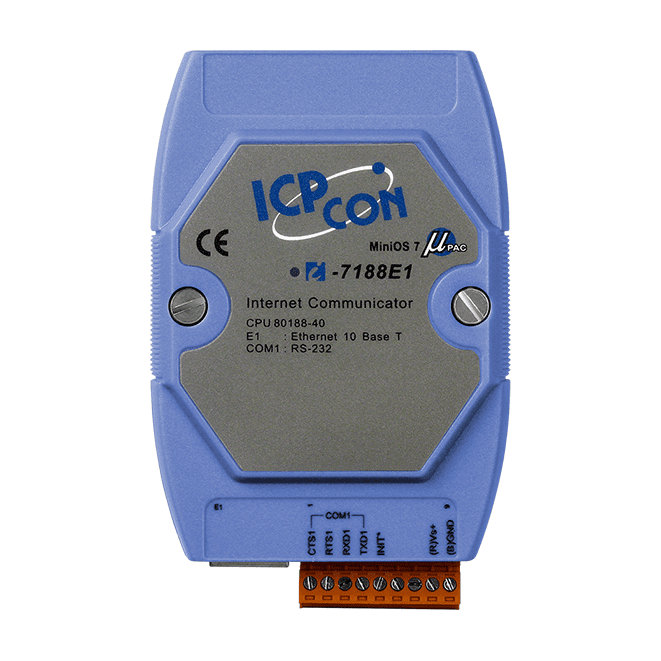

The I-7188E1 CR is a programmable Ethernet device server that brings a single RS-232 serial device onto an Ethernet network. Because the serial side is protocol independent, it suits engineers who need to network an existing RS-232 instrument, controller or terminal without changing the device itself.
Serial data can be passed to a PC through Virtual COM, letting existing COM-port software communicate over Ethernet, or exchanged through a raw TCP connection. The built-in MiniOS7 and Xserver programming structure allow custom Ethernet applications to be developed on the unit, and a watchdog timer supports operation in demanding environments.
The removable on-board terminal block simplifies wiring of the RS-232 signals (TXD, RXD, RTS, CTS, GND) and the +10 ~ +30 VDC non-regulated supply, which includes reverse polarity protection. The compact enclosure measures 123 mm x 72 mm x 33 mm.
Applications
- Factory Automation
- Building Automation
- Home Automation
| Product type: | Converter |
|---|---|
| Interface: | RS-232 |
| Protocol: | raw TCP, Virtual COM |
| Ports: | 1 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Ethernet | |
| Ports | 10BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 1 x RS-232 (TXD, RXD, RTS, CTS, GND) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
Technische Daten laut Hersteller. Änderungen vorbehalten.
