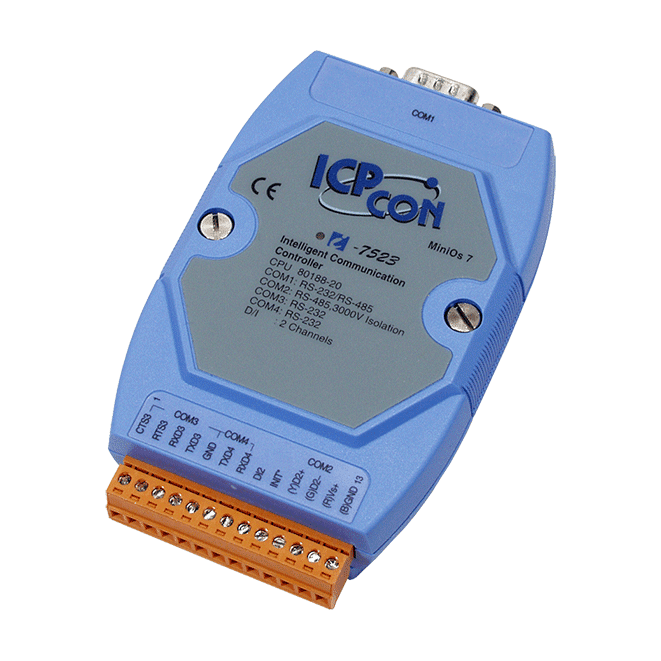

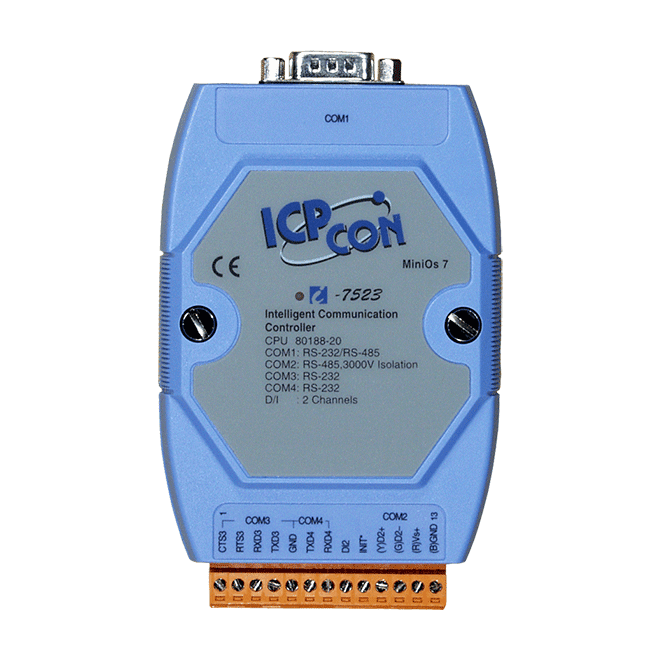

I-7523 Addressable RS-485 to 3 x RS-232/RS-485 Converter with 1 DI
Addressable RS-485 to 3 x RS-232/RS-485 converter with one dry-contact DI. Assigns each RS-232 device on an RS-485 network its own address, and operates as a master without a host PC.
- Addressable RS-485 to RS-232 converter firmware, assigning a unique address to each local RS-232 device
- Master-type operation that does not depend on a host PC, unlike slave-type converters
- Dual-Watchdog command support
- Power-up value and safe value support for DO
- Real-time monitoring and control of the onboard DI/DO
- 1KB queue buffer for each RS-232 interface
245,00 € pro Stück
| 1–9 Stück | 245,00 € | |
|---|---|---|
| 10–30 Stück | 238,00 € | −3 % |
| ab 31 Stück | 233,00 € | −5 % |
Produktinformationen "I-7523 Addressable RS-485 to 3 x RS-232/RS-485 Converter with 1 DI"
The I-7523 CR converts an RS-485 network into up to three serial ports, so RS-232 devices can take part in an addressed RS-485 network. Each local RS-232 device is assigned a unique address. The host PC addresses commands to that device over RS-485, the converter strips the address field and forwards the command to the local device, and the reply is returned to the host through the module.
Unlike slave-type converters, which cannot operate without a host PC, the I-7523 CR works as a master-type device. This suits installations where the converter needs to handle its own polling or control logic rather than relying only on the host, and where individual application requirements are not met by a passive converter.
The blue-cover variant includes one non-isolated dry-contact digital input, along with onboard DI/DO support for real-time monitoring and control, plus power-up and safe values for the digital output. The RS-485 port is isolated to 3000 V.
Applications
- Connecting RS-232 devices to an addressed RS-485 network
- Serial device integration in industrial automation
- Serial communication with host PC-controlled RS-485 systems
| Product type: | Converter |
|---|---|
| Interface: | RS-232, RS-485 |
| Digital inputs: | 1 |
| Ports: | 2 x RS-232, 1 x RS-485, 1 x RS-232/RS-485 |
| Isolation: | 3000 V (RS-485) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80188 or compatible, 20 MHz |
| Flash | 512 KB |
| SRAM | 128 KB |
| Watchdog Timer | Yes |
| Digital Input | |
| Channels | 1 |
| Type | Dry Contact, Non-isolated |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| COM Ports | |
| Ports | 2 x RS-232 1 x RS-485 (3000 VDC Isolated) 1 x RS-232/RS-485 (DB-9 male) |
| Baud Rate | 115200 bps Max. |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 119 x 33 (W x H x D) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 % RH |
Technische Daten laut Hersteller. Änderungen vorbehalten.
