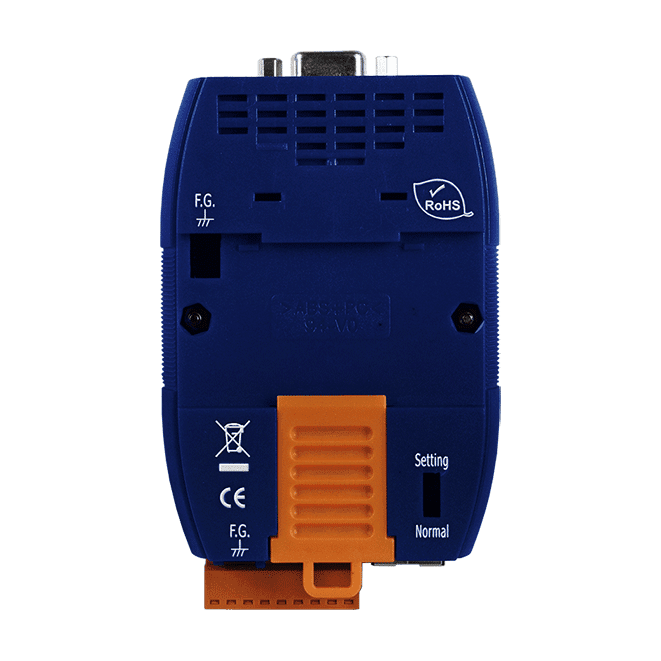

I-7550E PROFIBUS to Ethernet Converter, DP-V0 Slave, Plastic Case
PROFIBUS DP-V0 slave to Ethernet converter that lets a PROFIBUS master exchange data with TCP/UDP Ethernet devices, with web configuration and 2500 Vrms network isolation.
- PROFIBUS DP-V0 slave with address range 0~126, set by DIP switch or EEPROM
- Up to 240 bytes input and 240 bytes output data length
- Ethernet TCP/UDP server and client modes for flexible integration
- Web browser configuration through the built-in web server
- 2500 Vrms high speed iCoupler network isolation and 3000 VDC isolation on the PROFIBUS side
- PROFIBUS transmission rate detected automatically, up to 12 M
368,00 € pro Stück
| 1–9 Stück | 368,00 € | |
|---|---|---|
| 10–30 Stück | 357,00 € | −3 % |
| ab 31 Stück | 350,00 € | −5 % |
Produktinformationen "I-7550E PROFIBUS to Ethernet Converter, DP-V0 Slave, Plastic Case"
I-7550E CR is a PROFIBUS DP-V0 slave gateway that bridges a PROFIBUS master to Ethernet devices using TCP or UDP. Engineers can connect existing Ethernet equipment to a PROFIBUS network without changing the master, with up to 240 bytes of input and 240 bytes of output data.
The Ethernet side can operate as a TCP/UDP server or client, so the converter can suit either polling or initiating communication patterns. Configuration is carried out through the built-in web server using a standard web browser, and the bus address (0~126) is set by DIP switch or stored in EEPROM.
Isolation is provided on both sides, with 2500 Vrms high speed iCoupler isolation on the network side and 3000 VDC on the PROFIBUS side. The plastic DIN-rail housing is rated for an operating temperature of -25 ~ +75℃.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | PROFIBUS to Ethernet Converter |
|---|---|
| Interface: | Ethernet, PROFIBUS, RS-232 |
| Protocol: | PROFIBUS DP-V0, TCP/UDP |
| Isolation: | 2500 Vrms (network), 3000 VDC (PROFIBUS) |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Watchdog IC CPU built-in |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| Ethernet | |
| Ports | 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |
| COM Ports | |
| Ports | RS-232 (For updating firmware) 5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND ) |
| Baud Rate | 115200 |
| Parity | None |
| Data Bit | 8 |
| Stop Bit | 1 |
| PROFIBUS | |
| Controller | Profichip VPC3+C |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 |
| Mechanical | |
| Dimensions (mm) | 72 x 33 x 119 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +85 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
