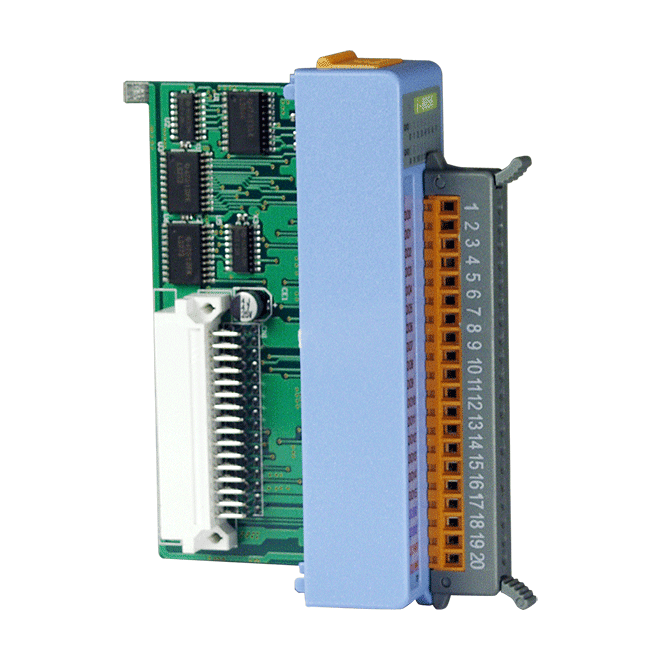

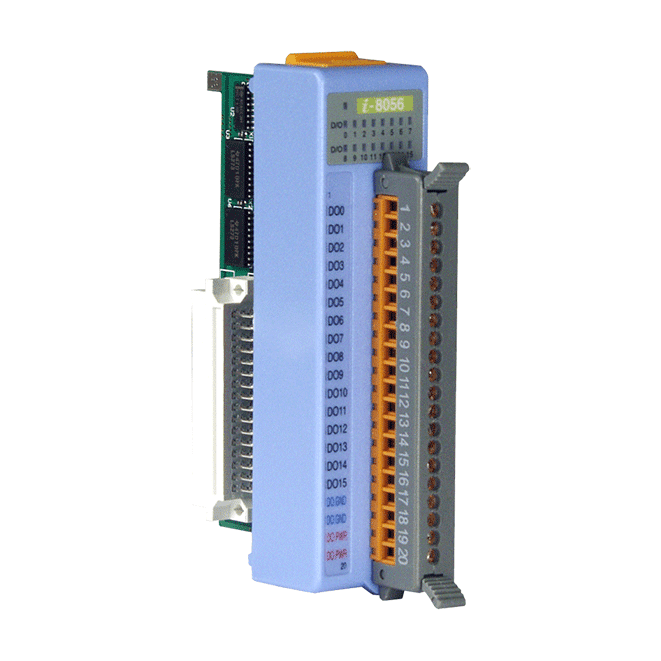

I-8056 16-ch Sink-type Digital Output Module, Non-isolated, Blue Cover
16-channel non-isolated sink-type (NPN) digital output module for 5 to 30 VDC loads, with per-channel status LEDs and 4 kV ESD protection on the output terminals.
- 16 non-isolated digital output channels
- Sink-type (NPN) open-collector outputs
- Load voltage +5 VDC to +30 VDC, 100 mA per channel
- 16 I/O LEDs plus a power and communication LED
- ±4 kV ESD contact protection on each terminal
- Operating range -25 ~ +75 °C
83,00 € pro Stück
| 1–9 Stück | 83,00 € | |
|---|---|---|
| 10–30 Stück | 81,00 € | −2 % |
| ab 31 Stück | 79,00 € | −5 % |
Produktinformationen "I-8056 16-ch Sink-type Digital Output Module, Non-isolated, Blue Cover"
I-8056 CR is a 16-channel digital output module from the I-8K/I-87K low-profile series, suited to engineers who need to switch a bank of sink-type loads from a compact I/O node. Each of the 16 non-isolated open-collector channels is rated for a load voltage of +5 VDC to +30 VDC and up to 100 mA per channel.
Channel status is visible at a glance, with one LED per output alongside a power and communication indicator. Each terminal is protected against ESD to ±4 kV contact (IEC 61000-4-2), which helps the module tolerate handling and electrostatic events during installation and maintenance.
The CR suffix identifies the blue-cover version of the I-8056. Key electrical and environmental data are listed below for specification checks.
- Power consumption: 0.9 W max.
- Dimensions: 31 x 116 x 88 mm (W x L x H)
- Operating temperature: -25 ~ +75 °C; storage -40 ~ +85 °C
- Humidity: 10 ~ 90% RH, non-condensing
Applications
- Switching sink-type DC loads in the 5 to 30 VDC range
- Digital output expansion in I-8K/I-87K low-profile I/O systems
- Local monitoring of output channel status via LEDs
| Product type: | Digital output module |
|---|---|
| Digital outputs: | 16 |
| Isolation: | Non-isolated |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Digital Output | |
| Channels | 16 Non-isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 VDC ~ +30 VDC |
| Load Current | 100 mA/Channel |
| Power | |
| Consumption | 0.9 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
