I-9720 Modbus RTU/ASCII to HART Gateway, 2-Port HART Master
Modbus RTU/ASCII slave to HART master gateway with two HART ports, offering adjustable 27 VDC loop power and a 250 Ω loop resistor for simpler HART wiring.
- Two HART channels supporting short and long frame types
- Modbus RTU and ASCII slave interface for Modbus master systems
- Built-in HART loop power (+27 VDC) and 250 Ω, 2 W loop resistor set by DIP switch
- Supports point-to-point and multi-drop HART wiring, up to 15 HART devices
- Configuration via USB Type C with the free HG_Tool, including HART data monitoring
- LED indicators (PWR, RUN, E0, E1) and RST button for module reboot
566,00 € pro Stück
| 1–9 Stück | 566,00 € | |
|---|---|---|
| 10–30 Stück | 549,00 € | −3 % |
| ab 31 Stück | 537,00 € | −5 % |
Produktinformationen "I-9720 Modbus RTU/ASCII to HART Gateway, 2-Port HART Master"

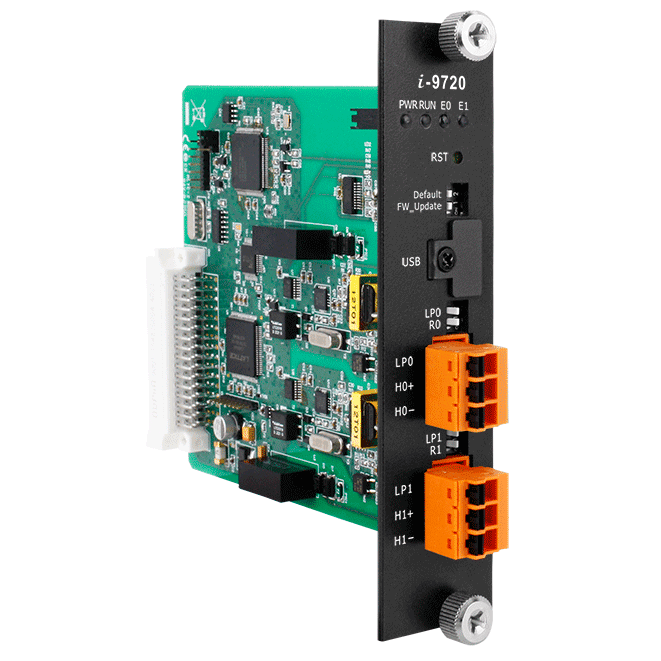

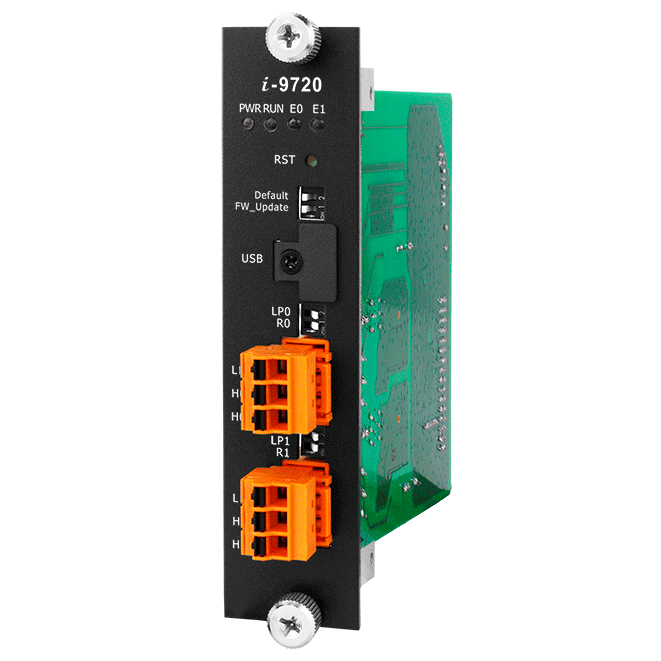

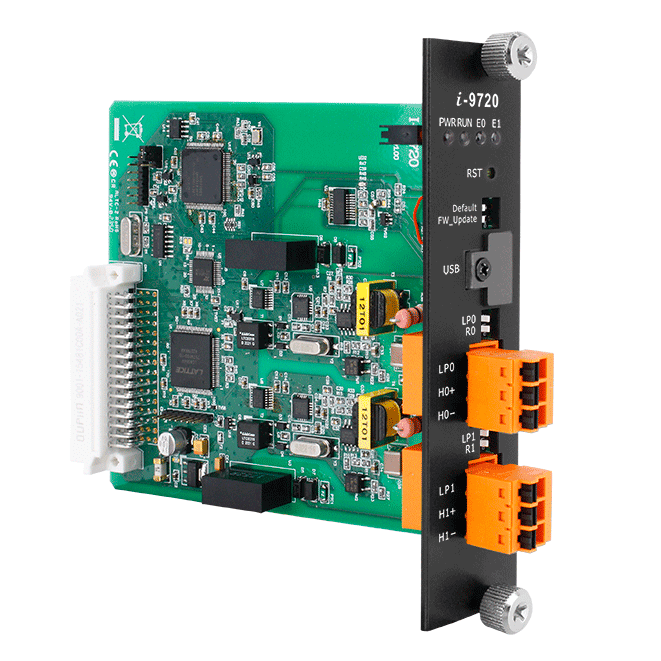

The I-9720 CR bridges HART field devices and Modbus masters. It presents two HART channels to a Modbus RTU or ASCII master, so engineers can read HART device data without writing a dedicated HART driver. It is intended for use with Windows, WinCE and Linux 9K series PACs.
Wiring is simplified by the built-in HART loop power of +27 VDC and a 250 Ω, 2 W loop resistor, selectable via DIP switch. Both point-to-point and multi-drop HART topologies are supported, with up to 15 HART devices, and both short and long frame types are handled.
Configuration is carried out over USB Type C using the free HG_Tool, which is also used to monitor HART device data. LED indicators (PWR, RUN, E0, E1) and an RST button support commissioning and recovery.
Applications
- Retrieving HART device data in Modbus master systems built on 9K series PACs
- Integrating HART field instruments into Modbus RTU or ASCII networks
| Product type: | Gateway |
|---|---|
| Interface: | USB Type C |
| Protocol: | Modbus RTU / Modbus ASCII |
| Ports: | 2 |
| Isolation: | UL1577 Spec. |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Slot |
Technische Daten
| Software | |
|---|---|
| Driver | Windows XP / 7 / 8 / 10 / 11 (32/64 bit) |
| LED Indicators | |
| Status | PWR / RUN / E0 / E1 |
| COM Ports | |
| Ports | Backplane (Virtual COM) |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | N/O/E(parity), 8(data bit), 1/2(stop bit) |
| Protocol | Modbus RTU / Modbus ASCII |
| USB | |
| Specification | USB 1.1 and 2.0 standard |
| Connector | USB Type C |
| Virtual COM Parameter | 1200 ~ 115200 bps, N/O/E(parity), 8(data bit), 1/2(stop bit) |
| HART | |
| Ports | 2 |
| Device | 2-wired or 4-wired HART devices |
| Topology | Point to Point or Multi-Drop |
| Data | Only Digital Data |
| Frame Type | Short and Long Frame |
| Burst Mode | Supported |
| Max. HART Device | 15 |
| Loop Resistor | 250 Ω resistor by Dip-Switch |
| Isolation | UL1577 Spec. |
| Protocol | HART |
| Loop Power | Yes (module provides +27VDC) |
| Power | |
| Reverse Polarity Protection | Power reverse polarity protection, Over-voltage brown-out protection |
| Input Range | Unregulated +10 ~ +30 VDC |
| Consumption | Max. 2.3 W (Point to Point HART wiring) Max. 4.5 W (Multi-drop HART wiring) |
| Mechanical | |
| Dimensions (mm) | 31mm x 134mm x 143mm (W x L x H) |
| Installation | Slot |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 90% RH, Non-condensing |
