MN-AD8-DIN Motionnet 8-ch Analog Input Module, +/- 10 V, 16-bit
Distributed Motionnet I/O module with eight +/- 10 V analogue inputs at 16-bit resolution, sampled at 250 ksps, for DIN-rail mounting in networked machine automation.
- Eight +/- 10 V analogue input channels with 16-bit resolution and 250 ksps sampling rate
- Hardware offset and gain calibration stored in EEPROM
- Motionnet transfer speed selectable at 2.5, 5, 10 or 20 Mbps by DIP switch
- Cyclic time of 15.1 us per device at 20 Mbps; up to 64 modules per communication port
- I/O connection status updated automatically by hardware without occupying CPU time
- Two-way isolation on power and communication; 1000 V isolated 24 VDC input
365,00 € pro Stück
| 1–9 Stück | 365,00 € | |
|---|---|---|
| 10–30 Stück | 354,00 € | −3 % |
| ab 31 Stück | 346,00 € | −5 % |
Produktinformationen "MN-AD8-DIN Motionnet 8-ch Analog Input Module, +/- 10 V, 16-bit"

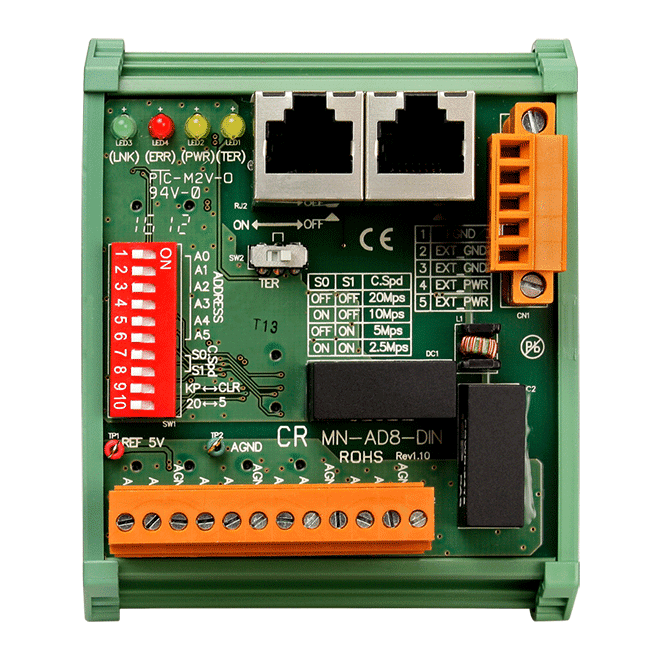

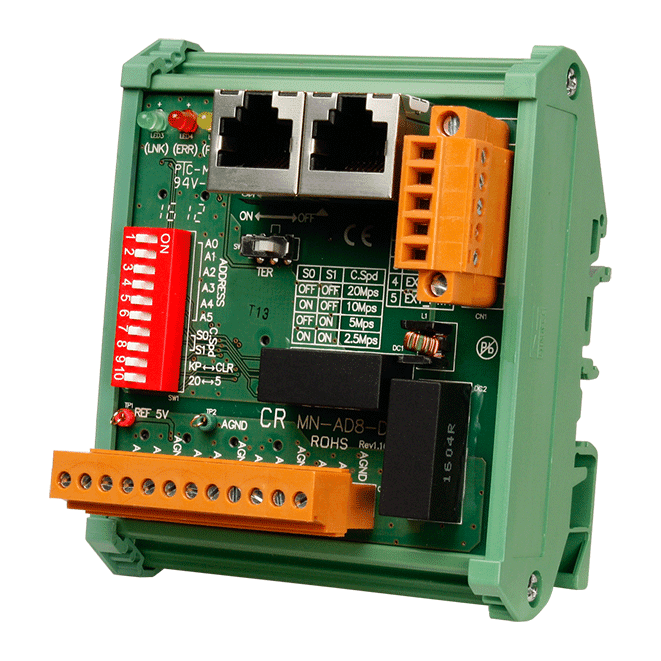

MN-AD8-DIN is a DIN-rail mounted Motionnet slave module that brings eight +/- 10 V analogue inputs onto a Motionnet network through an RJ-45 communication port. Each channel is sampled at up to 250 ksps with 16-bit resolution, giving a stated minimum resolution of 0.3 mV, which suits engineers who need fast, precise voltage acquisition at distributed points in a machine.
Offset and gain are calibrated in hardware and the calibration data is stored in EEPROM, so the module does not depend on software trimming. A 5 V internal reference with low drift supports the accuracy of the inputs. Power and communication are each isolated, with a 1000 V isolated 24 VDC supply input.
On the network, the transfer speed is selectable at 2.5, 5, 10 or 20 Mbps by DIP switch, and the cyclic time is 15.1 us per device at 20 Mbps. Up to 64 modules can share one communication port, and the I/O connection status is updated by hardware without taking CPU time.
- Suitable for Motionnet systems where many analogue inputs are spread across a machine.
Applications
- Machine automation
- Distributed analogue voltage acquisition on Motionnet networks
| Product type: | Analog Input Module |
|---|---|
| Interface: | RJ-45 |
| Protocol: | Motionnet |
| Analog inputs: | 8 |
| Isolation: | 2-way (power, communication) |
| Power input: | 24 VDC +/-5% |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| LED Indicators | |
|---|---|
| Status | Communication state (Link, Error) Internal 3.3 V Power Termination Resistor Switch |
| Analog Input | |
| Channels | 8 |
| Range | +/- 10 V |
| Resolution | 16-bit |
| Sampling Rate | 250 k sps |
| Calibration | Offset: provided by hardware Gain: provided by hardware |
| Motionnet | |
| Transfer Speed | Selectable 2.5, 5, 10 or 20 Mbps by DIP Switch |
| Cyclic Time | 15.1 μs per device (20 Mbps) |
| Power | |
| Input Range | 24VDC +/-5% (1000 V isolated) |
| Consumption | 3 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 75mm x 90mm x 57 mm (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
