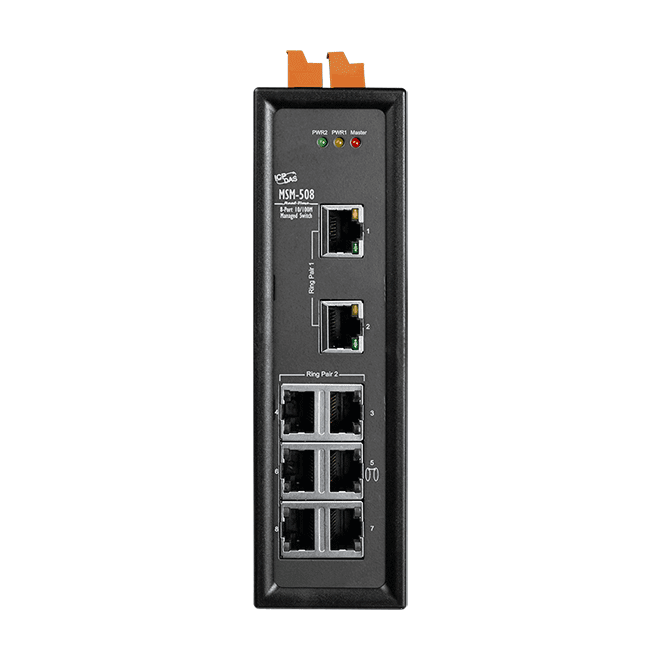

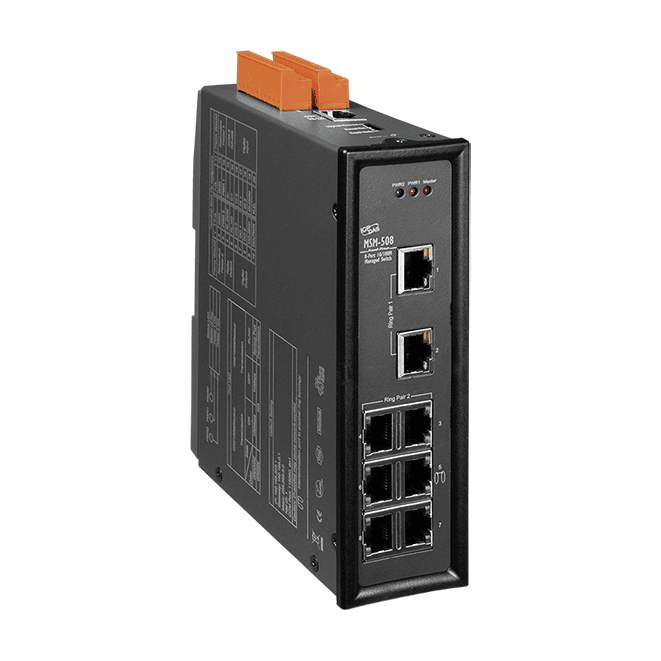

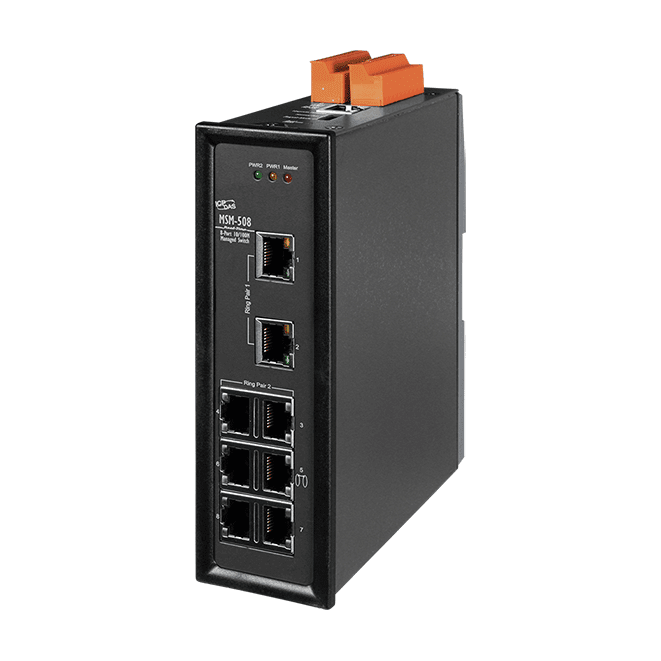

MSM-508 8-port Layer 2 Managed Industrial Ethernet Switch with Cyber-Ring
MSM-508 CR is an 8-port Layer 2 managed Industrial Ethernet switch with a metal casing, built-in Cyber-Ring redundancy and Modbus monitoring, supplied with a console cable and wall mount.
- 8 x RJ-45 10/100Base-TX ports with auto negotiation and automatic MDI/MDI-X
- Built-in Cyber-Ring redundancy, with copper link failure recovery in approximately 20 ms
- Managed via RS-232 console, Telnet or web browser, with VLAN, QoS, port trunking and port mirroring
- Status monitoring over Modbus/TCP, Modbus/RTU or OPC for SCADA applications
- Dual redundant DC power inputs (+12 ~ +48 VDC) with reverse polarity protection
- Relay alarm output for power or network link failure
470,00 € pro Stück
| 1–9 Stück | 470,00 € | |
|---|---|---|
| 10–30 Stück | 456,00 € | −3 % |
| ab 31 Stück | 447,00 € | −5 % |
Produktinformationen "MSM-508 8-port Layer 2 Managed Industrial Ethernet Switch with Cyber-Ring"
MSM-508 CR is an 8-port Layer 2 managed Industrial Ethernet switch for control and automation networks. Its eight RJ-45 ports support 10/100Base-TX with auto negotiation and automatic MDI/MDI-X, so connections can be made without crossover cables.
The switch can be configured through the RS-232 console, or over Telnet or a web browser via the Ethernet ports. Managed functions include 802.1Q tag-based VLAN, port-based VLAN, 802.1p QoS, port trunking, spanning tree, cable testing and port mirroring. Built-in Cyber-Ring technology allows several switches to be formed into a redundant ring, with copper link failures detected and recovered in approximately 20 ms.
Status of the Ethernet ports can be read by SCADA systems using Modbus/TCP, Modbus/RTU or OPC. Two DC power inputs (+12 ~ +48 VDC) can be connected at the same time, with the second source taking over if the first fails, and a relay output signals power or network link failure. The unit operates from -40 °C to +75 °C.
Applications
- Industrial control and automation networks
- SCADA monitoring of Ethernet port status
- Redundant Ethernet ring topologies
| Product type: | Managed Switch |
|---|---|
| Interface: | RJ-45 |
| Protocol: | Modbus/TCP |
| Digital inputs: | 3 |
| Digital outputs: | 3 |
| Relay outputs: | Yes |
| Ports: | 8 |
| Isolation: | 1500 Vrms 1 minute |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Technische Daten

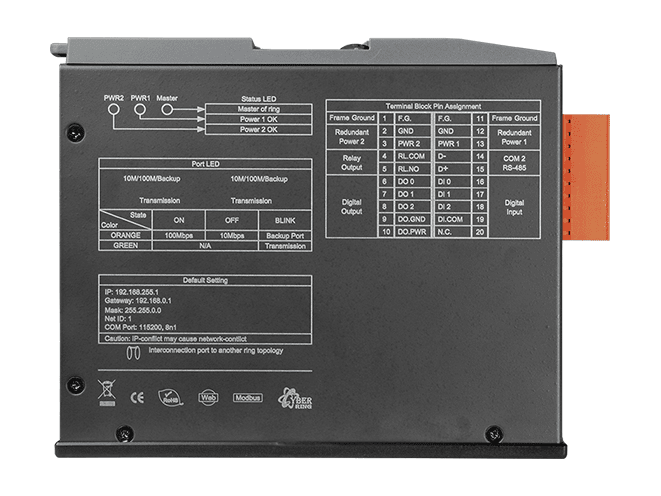

| LED Indicators | |
|---|---|
| Status | Power, 10/100M, Link/Act, Master |
| Ethernet | |
| Ports | 8 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u and 802.3x |
| Processing Type | Store & forward, wire speed switching |
| MAC Table | 2048 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Protocol | VLAN, QoS, Port Trunk, SMTP, TELNET |
| Redundant Strategy | STP, Ring (ICP DAS) |
| Isolation | 1500 Vrms 1 minute |
| DIP Switch | Yes, Normal Run / Repair Mode |
| Digital Input | |
| Channels | 3 |
| Type | Wet Contact |
| ON Voltage Level | +19 VDC ~ +30 VDC |
| OFF Voltage Level | +11 VDC Max. |
| Digital Output | |
| Channels | 3 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Current | 30V/100 mA Max. |
| COM Ports | |

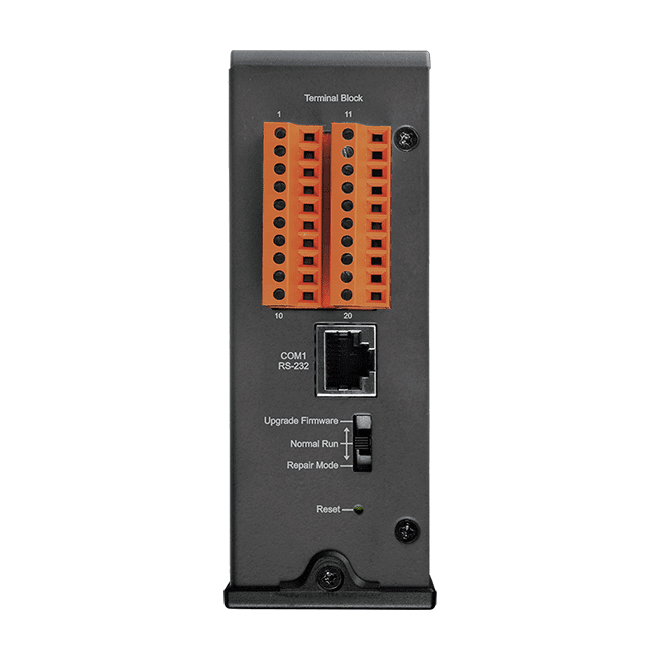

| Ports | 1 x RS-232 (Console) 1 x RS-485 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +48 VDC Redundant Dual Inputs (Non-isolated) |
| Redundant Power Inputs | Yes |
| Consumption | 0.25 A @ 24 VDC |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 47 x 175 x 129 (W x L x H) Wall mounting: 51 x 190 x 129 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
