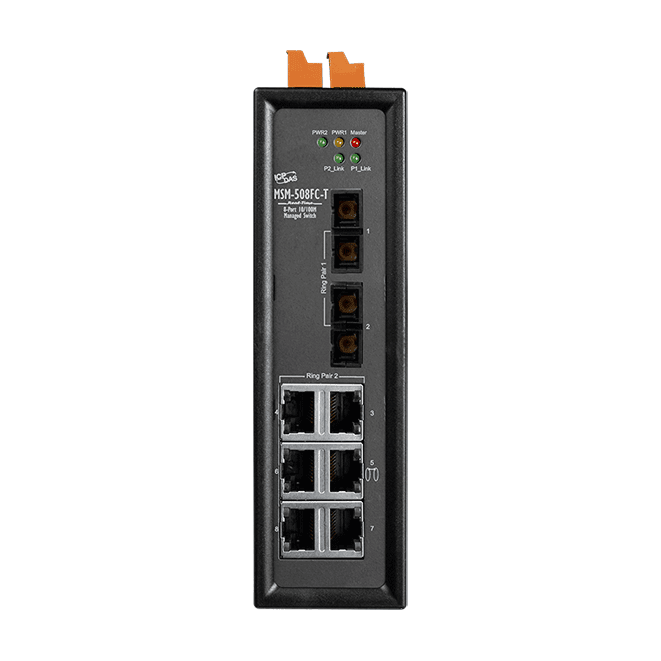

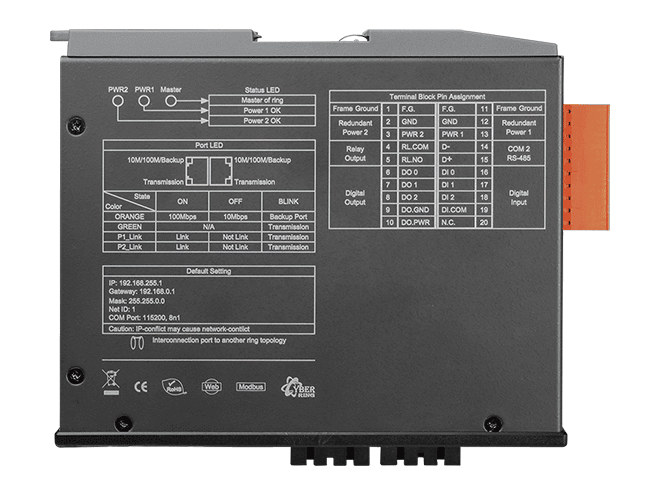

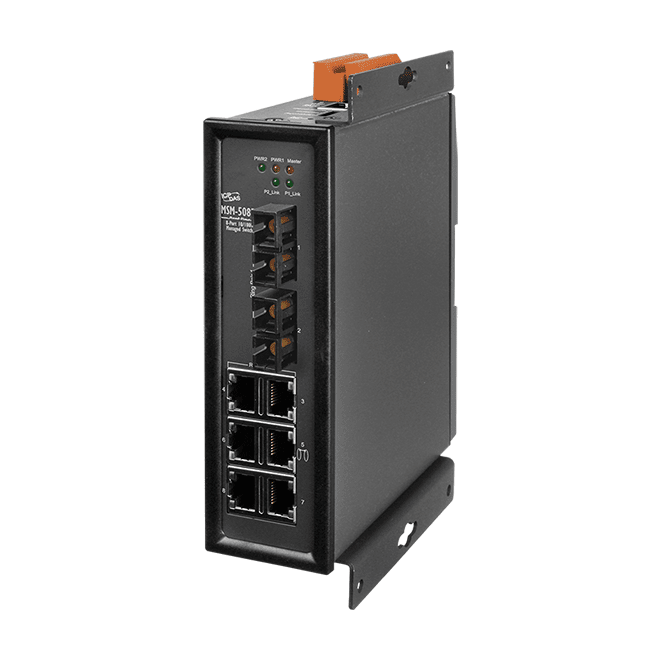

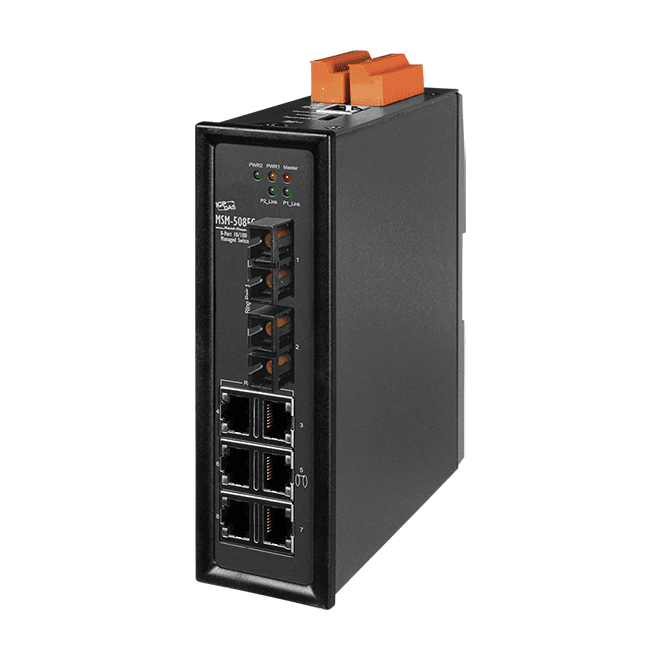

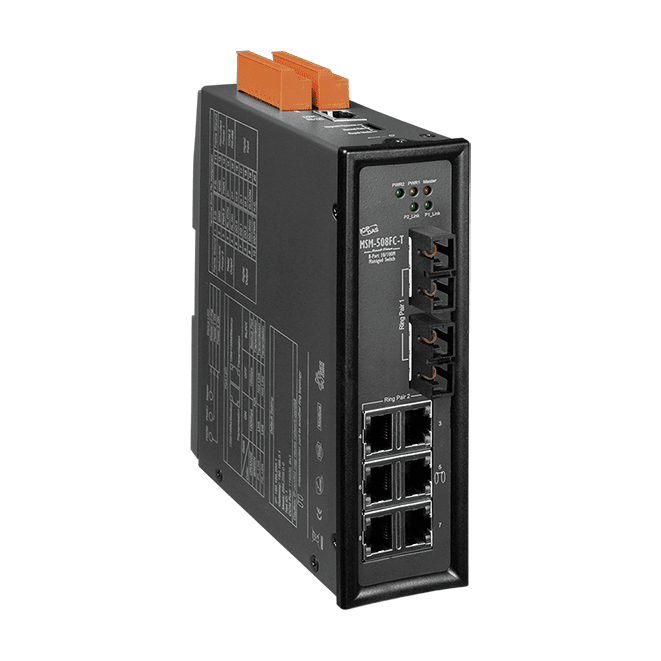

MSM-508FC-T 8-port Layer 2 Managed Ethernet Switch, 2-Fiber SC Multi-mode
Layer 2 managed industrial Ethernet switch with six 10/100Base-TX ports and two multi-mode 100Base-FX SC fibre ports, built for redundant ring networks and EMI-immune links.
- Two multi-mode 100Base-FX fibre ports with SC connectors, rated for 2 km in full duplex (62.5/125 μm recommended)
- Six 10/100Base-TX RJ-45 ports with automatic MDI/MDI-X crossover and speed auto negotiation
- Built-in Cyber-Ring redundant ring technique with recovery in approximately 20 ms, alongside STP
- Redundant dual DC inputs (+12 VDC to +48 VDC) and a relay output for power and link failure alarms
- Managed via RS-232 console, Telnet or web browser, with 802.1Q VLAN, 802.1p QoS, port trunking and port mirroring
- Modbus/TCP, Modbus/RTU and OPC support for SCADA monitoring of Ethernet and fibre port status
595,00 € pro Stück
| 1–9 Stück | 595,00 € | |
|---|---|---|
| 10–30 Stück | 577,00 € | −3 % |
| ab 31 Stück | 565,00 € | −5 % |
Produktinformationen "MSM-508FC-T 8-port Layer 2 Managed Ethernet Switch, 2-Fiber SC Multi-mode"
The MSM-508FC-T CR is an 8-port Layer 2 managed industrial Ethernet switch with six RJ-45 10/100Base-TX ports and two multi-mode 100Base-FX fibre ports fitted with SC connectors. Routing data over fibre keeps the transmission path immune to EMI and RFI and isolated from electrical exposure, surges, lightning and chemical corrosion, which makes it suited to links that must stay protected.
The switch can be configured through an RS-232 console port or remotely over Telnet or a web browser. Its managed feature set includes 802.1Q tag-based and port-based VLANs, 802.1p QoS, port trunking, Spanning Tree, cable testing and port mirroring. The built-in Cyber-Ring technique lets several switches form a redundant ring that recovers from a fibre or copper link failure in approximately 20 ms.
Two DC power inputs from +12 VDC to +48 VDC can be connected at the same time, so the second source takes over if the first fails. A relay alarm output signals power or network link failures, and Modbus/TCP, Modbus/RTU and OPC support allow a SCADA system to monitor the status of the Ethernet and fibre ports.
Applications
- Ethernet links that must be protected from electrical exposure, surges and lightning
- Redundant ring networks with automatic link failure recovery
- SCADA and remote monitoring of Ethernet and fibre port status via Modbus or OPC
- Industrial automation networks requiring managed Layer 2 switching with fibre backbone links
| Product type: | Managed Switch |
|---|---|
| Interface: | 10/100Base-TX, 100Base-FX |
| Protocol: | Modbus TCP |
| Digital inputs: | 3 |
| Digital outputs: | 3 |
| Relay outputs: | 1 |
| Ports: | 8 |
| Isolation: | 1500 Vrms |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -30 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Technische Daten
| LED Indicators | |
|---|---|
| Status | 10/100M, Link/Act, Full duplex/Half duplex (Fiber Port) |
| Ethernet | |
| Ports | 6 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u and 802.3x |
| Processing Type | Store & forward, wire speed switching |
| MAC Table | 2048 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Protocol | VLAN, QoS, Port Trunk, SMTP, TELNET |
| Redundant Strategy | STP, Ring (ICP DAS) |
| Isolation | 1500 Vrms 1 minute |
| DIP Switch | Yes, Normal Run / Repair Mode |
| Fiber | |
| Ports | 2-port 100 Base-FX SC connector |
| Mode | Multi-Mode |
| Fiber Cable | 50/125, 62.5/125 or 100/140 μm |
| Distance | 2 km, (62.5/125 μm recommended) for full duplex |
| Wavelength | 1300 or 1310 nm |
| TX Output | -20 dBm Min. -14 dBm Max. |
| RX Sensitivity | -34 ~ -31 dBm |
| Digital Input | |
| Channels | 3 |
| Type | Wet Contact |
| ON Voltage Level | +19 VDC ~ +30 VDC |
| OFF Voltage Level | +11 VDC Max. |
| Digital Output | |
| Channels | 3 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Current | 30V/100 mA Max. |
| COM Ports | |
| Ports | 1 x RS-232 (Console) 1 x RS-485 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC Redundant Dual Inputs (Non-isolated) |
| Redundant Power Inputs | Yes |
| Consumption | 0.3 A @ 24 VDC |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 47 x 175 x 142 (W x L x H) Wall mounting: 51 x 190 x 142 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
