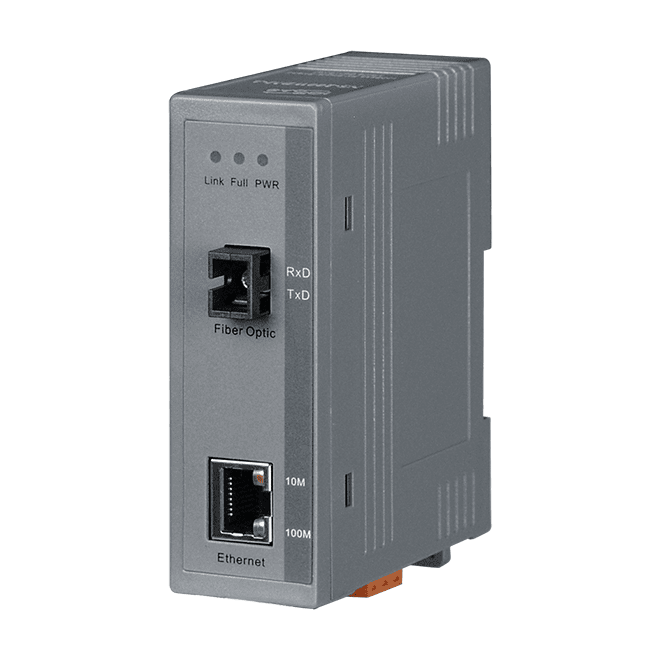

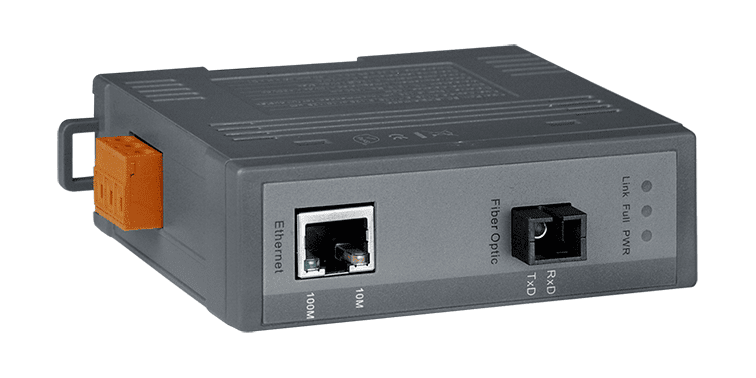

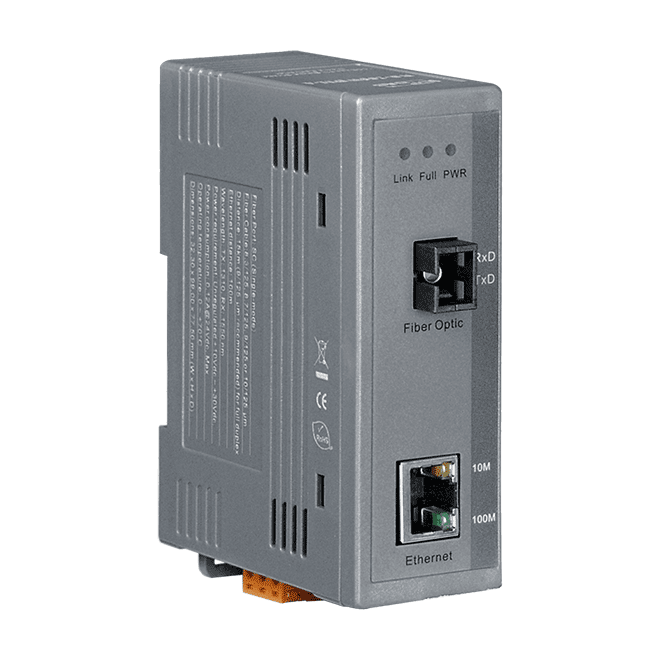

NS-200WDM-A Single-Strand Media Converter, 100Base-FX SC, TX 1310 nm
Single-strand WDM media converter linking one 10/100Base-TX RJ-45 port to 100Base-FX over single-mode fibre, with TX 1310 nm and RX 1550 nm. Sold as a pair with NS-200WDM-B.
- Single-strand WDM operation: TX 1310 nm and RX 1550 nm over one single-mode fibre
- Rated for up to 15 km (9/125 μm fibre recommended for full duplex)
- 1 x RJ-45 10/100Base-TX port with automatic MDI/MDI-X crossover
- Supports 10/100 Mbps auto negotiation and IEEE802.3, 802.3u, 802.3x
- Store-and-forward switching with 1024-entry MAC table
- 1500 Vrms isolation, reverse polarity protection and ESD (IEC 61000-4-2)
223,00 € pro Stück
| 1–9 Stück | 223,00 € | |
|---|---|---|
| 10–30 Stück | 217,00 € | −3 % |
| ab 31 Stück | 212,00 € | −5 % |
Produktinformationen "NS-200WDM-A Single-Strand Media Converter, 100Base-FX SC, TX 1310 nm"
NS-200WDM-A is the local-end unit of a single-strand fibre media converter pair. It bridges a 10/100Base-TX RJ-45 Ethernet port to a 100Base-FX SC fibre link, carrying both transmit and receive traffic over one single-mode fibre using wavelength division multiplexing (TX 1310 nm, RX 1550 nm). This halves the number of fibres needed for a link, which is useful where long-distance fibre is costly to install.
The unit is designed for plug-and-play use, with automatic MDI/MDI-X crossover and 10/100 Mbps auto negotiation. It uses store-and-forward switching and provides 1500 Vrms isolation. Overload protection, soft start, high/low voltage protection and reverse polarity protection are included. Its 32.3 mm width suits compact DIN-rail installations.
Important: this unit works as a pair. You must order NS-200WDM-A together with NS-200WDM-B at the other end of the link.
Applications
- Extending 100 Mbps Ethernet over long-distance single-mode fibre
- Reducing fibre infrastructure cost by reusing a single strand
- Space-constrained control cabinets and DIN-rail installations
| Product type: | Media Converter |
|---|---|
| Interface: | RJ-45 / SC |
| Ports: | 1 x RJ-45, 1 x SC |
| Isolation: | 1500 Vrms |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | 0 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | PWR, 10M, 100M, Link/Act, Full duplex/Half duplex(Fiber Port) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-TX |
| Standards | IEEE802.3, 802.3u, 802.3x |
| Processing Type | Store & forward wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 1.4 Gbps |
| Isolation | 1500 Vrms 1 minute |
| Fiber | |
| Ports | 1 x 100 Base-FX, SC connector |
| Mode | Single-Mode |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Distance | 15 km, (9/125 μm mrecommended) for full duplex |
| Wavelength | TX: 1310 nm , RX: 1550 nm |
| TX Output | -14 dBm Min. -8 dBm Max. |
| RX Sensitivity | -31 dBm |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +48 VDC (Non-isolation) |
| Consumption | 0.12 A @ 24 VDC, +/- 5% arrowed with 100M Full duplex |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 32.3 x 107 x 85 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | 0 °C ~ +70 °C |
| Storage Temperature | -20 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
