NS-205AFCS-T Unmanaged Ethernet Switch, 4x RJ-45 + 1x Single-Mode SC Fibre
Unmanaged industrial Ethernet switch with four 10/100Base-TX ports and one single-mode 100Base-FX SC fibre port, rated up to 30 km. Redundant +12 to +48 VDC inputs.
- Unmanaged switch with 4 x 10/100Base-TX RJ-45 ports and 1 x 100Base-FX fibre port
- Single-mode fibre with SC connector, up to 30 km (9/125 μm recommended for full duplex)
- Redundant dual +12 to +48 VDC power inputs with reverse polarity protection
- Store and forward processing, 2048-entry MAC table and IEEE 802.3x flow control
- Broadcast storm protection
- Relay alarm output, 2 A @ 30 VDC, with PWR1, PWR2, PWR_Fault and link LEDs
230,00 € pro Stück
| 1–9 Stück | 230,00 € | |
|---|---|---|
| 10–30 Stück | 223,00 € | −3 % |
| ab 31 Stück | 219,00 € | −5 % |
Produktinformationen "NS-205AFCS-T Unmanaged Ethernet Switch, 4x RJ-45 + 1x Single-Mode SC Fibre"

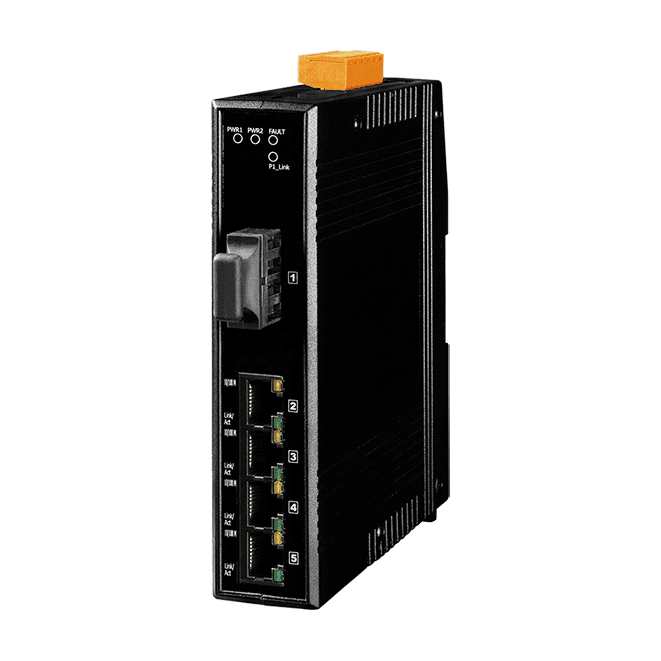

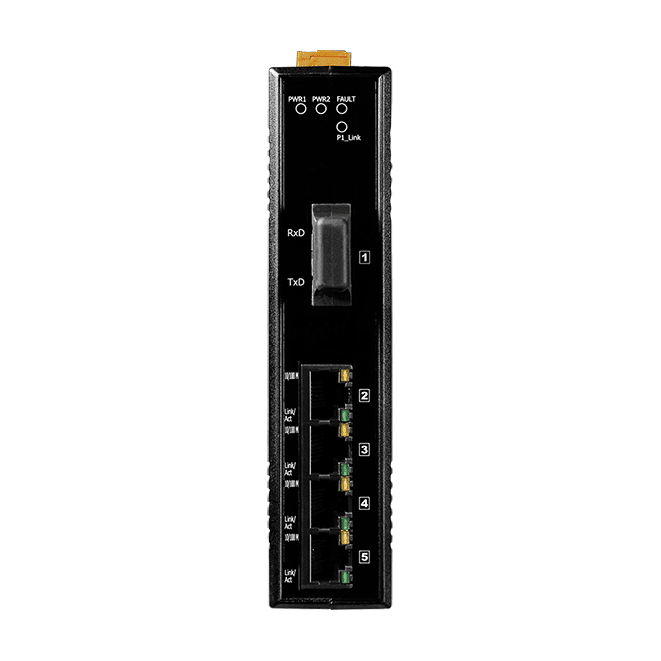

The NS-205AFCS-T CR is an unmanaged Ethernet switch that connects four RJ-45 copper ports (10/100Base-TX) to one single-mode fibre port (100Base-FX, SC connector). Fibre keeps electrical noise out of the link and supports distances up to 30 km, with 9/125 μm fibre recommended for full duplex operation.

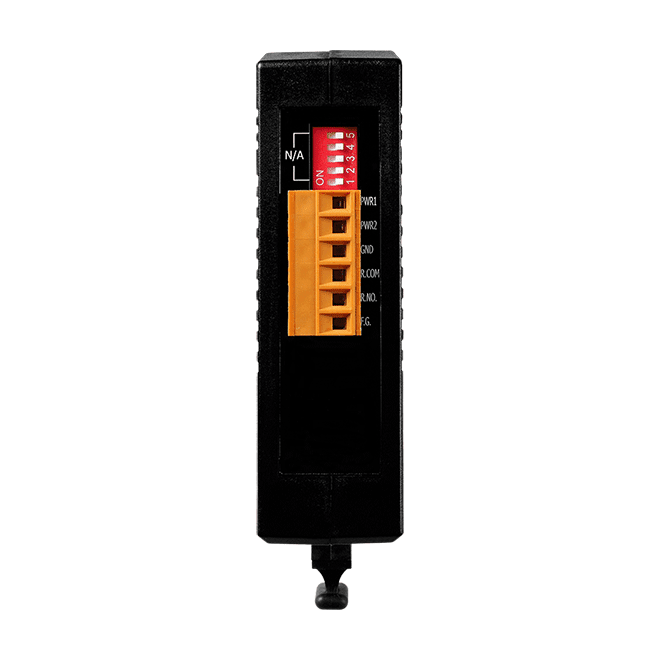

Power is supplied through redundant dual +12 to +48 VDC inputs with reverse polarity protection, so the switch can run from common industrial supply voltages without an external converter. A relay alarm output (2 A @ 30 VDC) and status LEDs help with monitoring.
The plastic casing mounts on a DIN rail and is rated for an operating range of -30 °C to +75 °C. This ordering code is the single-mode 30 km SC variant of the NS-205 series.
Applications
- Industrial automation networks
- Long-distance Ethernet links over single-mode fibre
- Electrically noisy environments
| Product type: | Ethernet switch |
|---|---|
| Interface: | RJ-45 / SC fibre |
| Protocol: | IEEE 802.3 |
| Ports: | 4 RJ-45 + 1 SC |
| Isolation: | 1500 Vrms |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -30 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact |
| LED Indicators | |
| Status | PWR1, PWR2, PWR_Fault, Link/Act, 10/100M |
| Ethernet | |
| Ports | 4 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x |
| Processing Type | Store & forward |
| MAC Table | 2048 |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control |
| Isolation | 1500 Vrms 1 minute |
| Fiber | |
| Ports | 1 x 100 Base-FX, SC connector |
| Mode | Single-Mode |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Distance | 30 km, (9/125 μm recommended) for full duplex |
| Wavelength | 1300 or 1310nm |
| TX Output | -15 dBm Min. -8 dBm Max. |
| RX Sensitivity | -34 dBm |
| RX Overload | -5 dBm |
| Budget | 19 dBm |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +48 VDC (Redundant input) |
| Redundant Power Inputs | Yes |
| Consumption | 0.2 A @ 24 VDC |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 123 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
