NS-205PFCS-60-24V PoE Switch, 4-port PSE + 1 SC Single-Mode 60 km Fiber
Unmanaged 4-port 10/100 Mbps PoE (PSE) Ethernet switch with one 100Base-FX single-mode SC fibre port for links up to 60 km, powered from 24 VDC.
- 1 x 100Base-FX single-mode SC fibre port plus 4 x 10/100Base-TX RJ-45 ports
- Four PSE PoE ports supplying up to 15.4 W per channel to IEEE 802.3af powered devices
- Automatic detection of powered devices and per-port power management
- Fibre link distance up to 60 km (9/125 μm recommended for full duplex)
- Input range +18 ~ +32 VDC with reverse polarity protection
- Store and forward switching with IEEE 802.3x flow control
293,00 € pro Stück
| 1–9 Stück | 293,00 € | |
|---|---|---|
| 10–30 Stück | 284,00 € | −3 % |
| ab 31 Stück | 278,00 € | −5 % |
Produktinformationen "NS-205PFCS-60-24V PoE Switch, 4-port PSE + 1 SC Single-Mode 60 km Fiber"

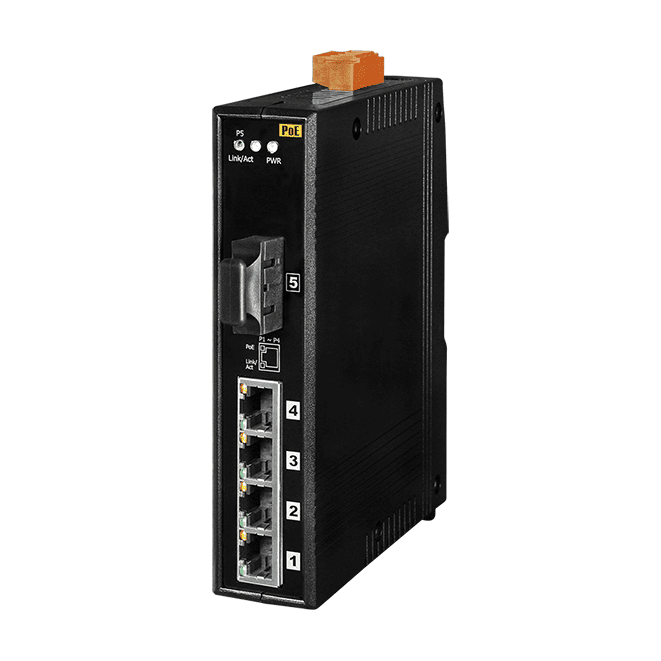

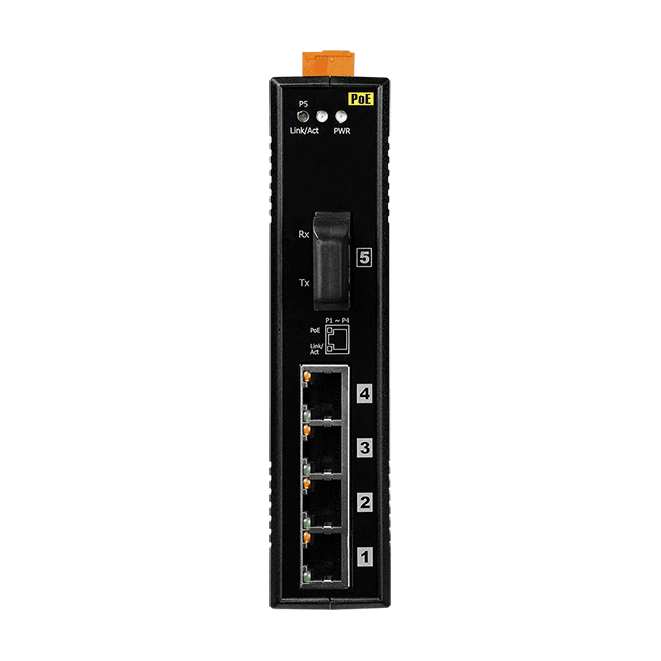

The NS-205PFCS-60-24V is an unmanaged industrial Ethernet switch that pairs four 10/100Base-TX copper ports, each acting as a Power Sourcing Equipment (PSE) port, with a single 100Base-FX single-mode SC fibre uplink. It is intended for engineers who need to power remote IEEE 802.3af devices from one central location while carrying data over a long fibre run.
Each PoE port supplies up to 15.4 W and detects connected powered devices automatically, with power managed per port. The fibre link is rated for up to 60 km, and 9/125 μm fibre is recommended for full duplex operation. Because the link is optical, it is less exposed to electrical noise than a copper segment of the same length.

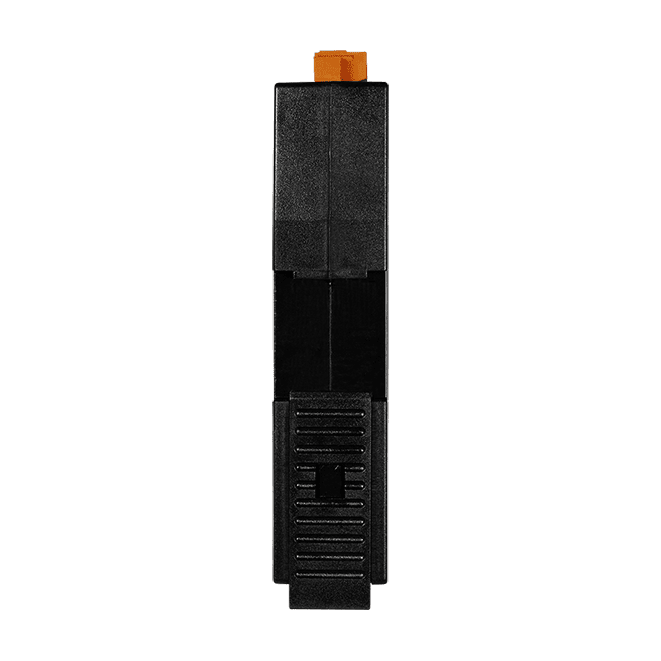

The unit accepts a 24 VDC input from +18 to +32 VDC with reverse polarity protection, and an internal boost stage allows PoE to be delivered where a 48 VDC supply is not available. The plastic DIN-rail housing is rated for -30 °C to +75 °C operation.
Applications
- Powering IEEE 802.3af powered devices at a remote site from a central switch
- Long-distance single-mode fibre links between Ethernet network segments
- Locations where a 48 VDC supply is unavailable and 24 VDC must be boosted for PoE
| Product type: | Ethernet switch |
|---|---|
| Interface: | RJ-45, SC fibre |
| Protocol: | IEEE 802.3af (PoE) |
| Ports: | 4 x RJ-45 + 1 x SC |
| PoE: | PSE, 15.4 W per port |
| Isolation: | 1500 Vrms |
| Power input: | +18 ~ +32 VDC |
| Operating temperature: | -30 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact |
| LED Indicators | |
| Status | Power, Link/Act, Power Device is detected |
| Ethernet | |
| Ports | 4 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet) |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 watts per channel |
| PoE Operation | Automatic detection and power management |
| PoE Pin Assignments | V+ (Pin 1,2), V- (Pin 3,6) |
| PoE Disconnect Mode | DC disconnect |
| Fiber | |
| Ports | 1 x 100 Base-FX, SC connector |
| Mode | Single-Mode |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Distance | 60 km, (9/125 μm recommended) for full duplex |
| Wavelength | 1300 or 1310nm |
| TX Output | -5 dBm Min. 0 dBm Max. |
| RX Sensitivity | -34 dBm |
| RX Overload | -5 dBm |
| Budget | 30 dBm |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +18 ~ +32 VDC |
| Consumption | 0.24 A @ 24 VDC without PD loading; 3.2 A @ 24 VDC with PD full loading; 4.6 A @ 18 VDC with PD full loading |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 113 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
