NS-205PSE-24V Unmanaged 5-port PoE PSE Ethernet Switch, 10/100 Mbps
Unmanaged 5-port 10/100 Mbps Ethernet switch with 4 PSE PoE ports to IEEE 802.3af/at, +12 VDC to +32 VDC input and DIN-rail mounting for centralised power distribution.
- Four PoE/PoE+ PSE ports, fully compliant with IEEE 802.3af/at
- Up to 15.4 W per PSE channel
- Five 10/100Base-TX RJ-45 ports
- Wide +12 VDC to +32 VDC input with reverse polarity protection
- Store-and-forward switching with 2K MAC table and 1 Mbit frame buffer
- IEEE 802.3x flow control and back pressure flow control
249,00 € pro Stück
| 1–9 Stück | 249,00 € | |
|---|---|---|
| 10–30 Stück | 241,00 € | −3 % |
| ab 31 Stück | 236,00 € | −5 % |
Produktinformationen "NS-205PSE-24V Unmanaged 5-port PoE PSE Ethernet Switch, 10/100 Mbps"

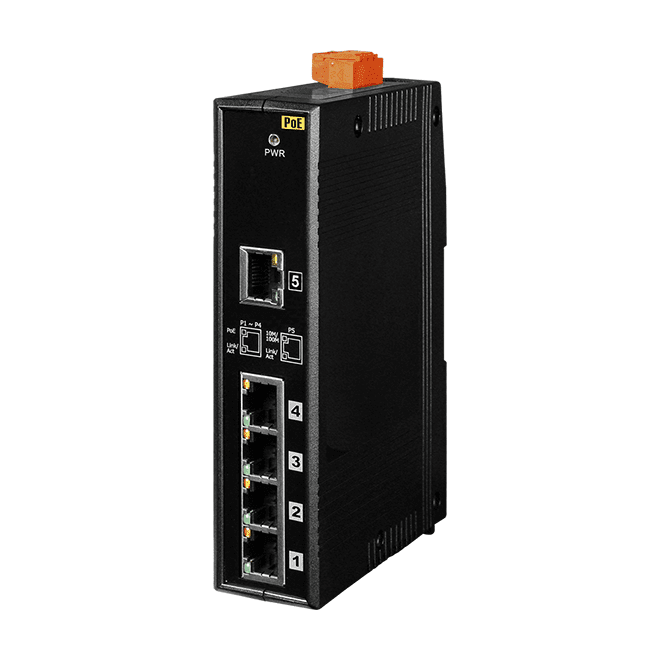

Centralised PoE power for an unmanaged industrial Ethernet segment. The NS-205PSE-24V CR switches traffic between five 10/100Base-TX ports, and four of those ports act as power sourcing equipment (PSE) to feed IEEE 802.3af/at powered devices. Each PSE port supplies up to 15.4 W, so a single DC supply within the +12 VDC to +32 VDC range can power remote endpoints without a separate local supply at each device.
The switch suits sites where a +48 VDC PoE supply is not available. Store-and-forward processing, a 2K MAC table, a 1 Mbit frame buffer and IEEE 802.3x and back pressure flow control support reliable forwarding. Reverse polarity protection and an operating range of -40 °C to +75 °C add robustness for cabinet installations.

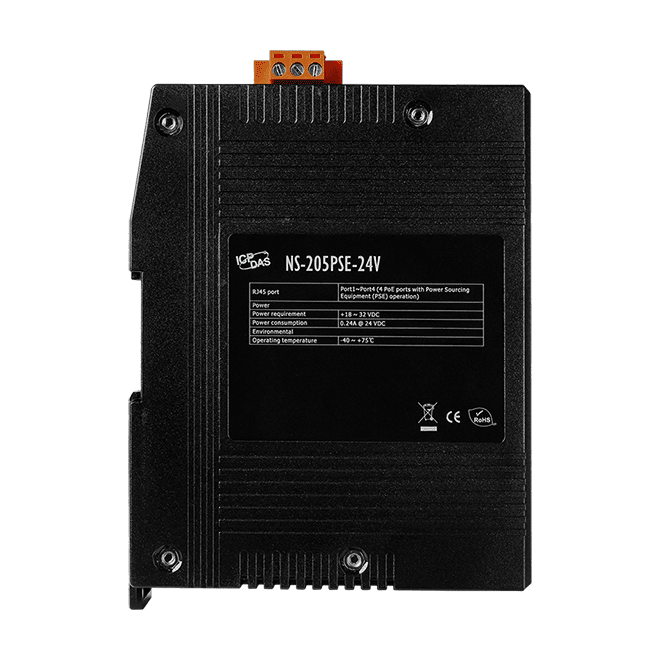

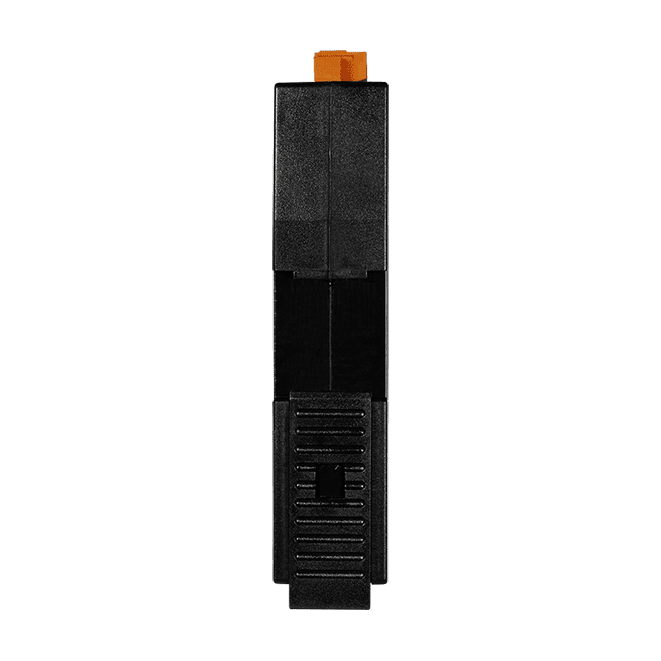

Status LEDs show power, link and activity, 10/100M speed and PD detection, which simplifies commissioning and fault finding. The plastic casing mounts on a DIN-rail and measures 31 x 157 x 113 mm (W x L x H). The unit carries CE, UKCA, FCC, RoHS and WEEE marks.
Applications
- Powering PoE devices at remote points in industrial Ethernet networks from a 24 VDC supply
- Centralised PoE power distribution where a +48 VDC PoE supply is not available
| Product type: | Ethernet switch |
|---|---|
| Interface: | 10/100Base-TX |
| Ports: | 5 |
| PoE: | 4 PSE ports, IEEE 802.3af/at |
| Isolation: | 1500 Vrms |
| Power input: | +12 VDC ~ +32 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten

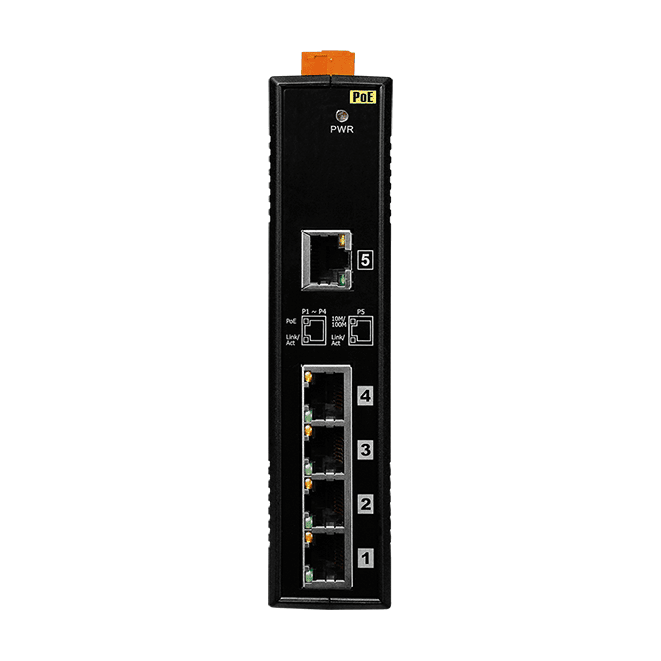

| LED Indicators | |
|---|---|
| Status | Power, Link/Act, 10/100M, Power Device is detected |
| Ethernet | |
| Ports | 5 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet) |
| Processing Type | Store & forward |
| MAC Table | 2K |
| Frame Buffer Memory | 1Mbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 watts per channel |
| PoE Pin Assignments | V+ (Pin 1, 2), V- (Pin 3, 6) |
| PoE Voltage | +48 VDC |

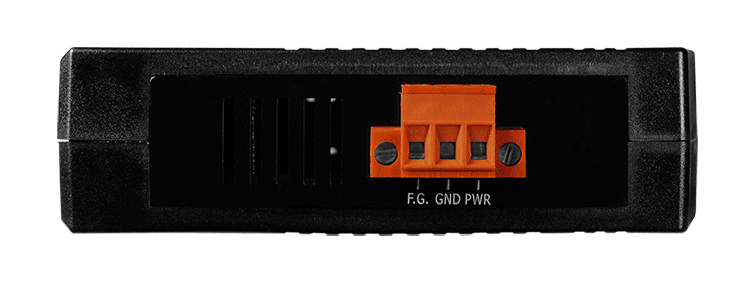

| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +32 VDC |
| Consumption | 0.24 A @ 24 VDC without PD loading 3.2 A @ 24 VDC with PD full loading |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 113 (W x L x H) |
| Installation | DIN-rail mounting |
| Environment | |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
