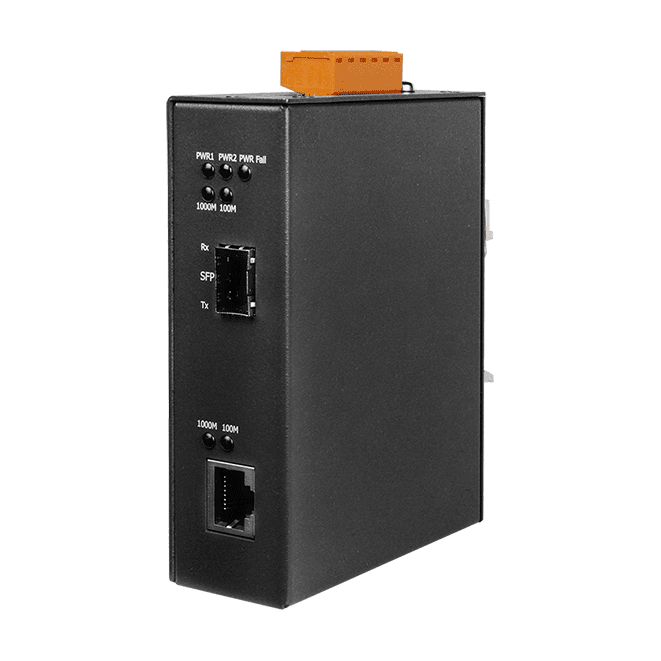

NSM-200G-SFP 1000 Base-T to 1000 Base-X Media Converter, SFP Slot
Industrial copper-to-fibre media converter with one RJ-45 port and one SFP slot for 1000 Base-LX devices, rated for -30 °C ~ +75 °C operation with redundant DC power input.
- One 1000 Mbps fibre port via SFP slot for a 1000 Base-LX device
- RJ-45 copper port supporting 10/100/1000Base-T(X) with IEEE 802.3ab, 802.3u and 802.3x flow control
- Wide operating temperature range of -30 °C ~ +75 °C
- Transparent to jumbo packets up to 10 KB
- Link Fault Pass-through (LFP), enabled via DIP switch
- Redundant +12 VDC ~ +48 VDC power input with reverse polarity protection
249,00 € pro Stück
| 1–9 Stück | 249,00 € | |
|---|---|---|
| 10–30 Stück | 241,00 € | −3 % |
| ab 31 Stück | 236,00 € | −5 % |
Produktinformationen "NSM-200G-SFP 1000 Base-T to 1000 Base-X Media Converter, SFP Slot"
The NSM-200G-SFP links a 10/100/1000Base-T copper Ethernet segment to a 1000 Mbps fibre link through a single SFP slot. It suits engineers who need to extend an existing network, bring non-fibre equipment onto a fibre backbone, or stretch the distance between two devices without changing the rest of the installation.
The SFP slot accepts a 1000 Base-LX device, and the converter is transparent to jumbo packets up to 10 KB. Link Fault Pass-through (LFP) is available and is enabled through the DIP switch, so a fault on one side of the link can be relayed to the other side. Store-and-forward processing and 512 Kbit of frame buffer memory are provided.

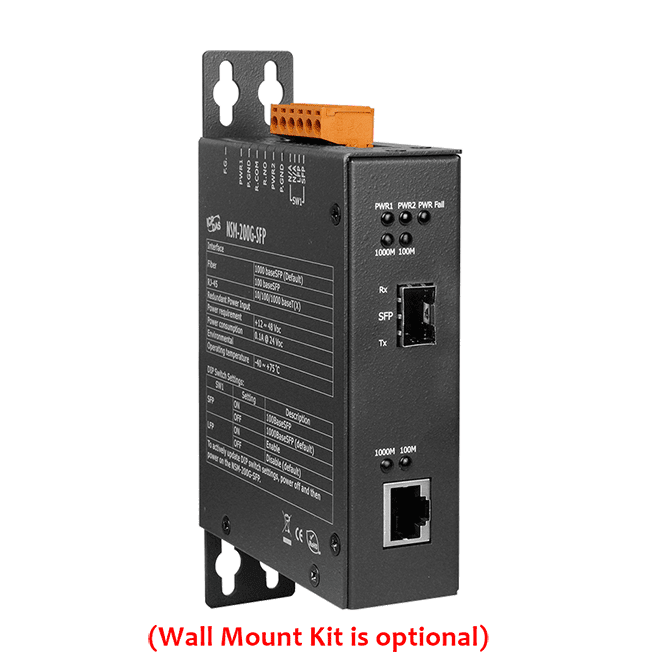

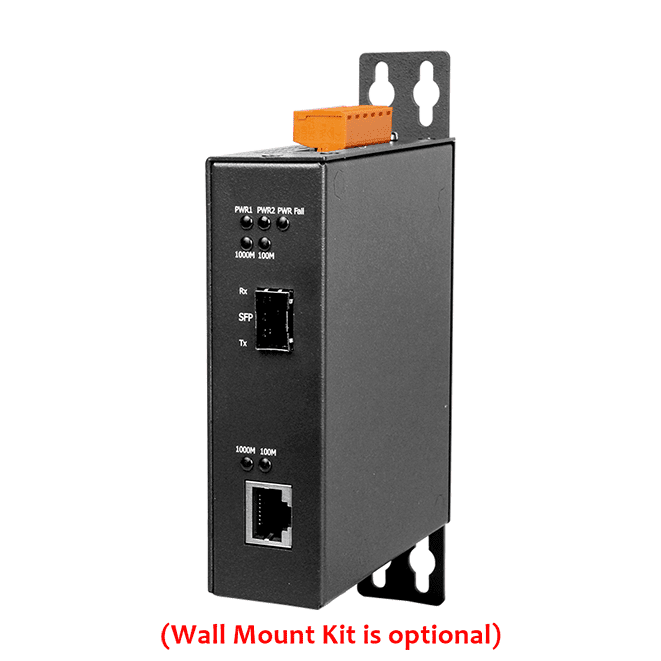

The metal housing is designed for DIN-rail or optional wall mounting. The unit accepts redundant +12 VDC ~ +48 VDC power input with reverse polarity protection, and includes a relay alarm output rated 1 A @ 30 VDC. Operating range is -30 °C ~ +75 °C.
Applications
- Extending the distance of an existing Ethernet network
- Connecting non-fibre equipment to a fibre link
- Extending the distance between two devices
- Industrial Ethernet installations requiring link fault pass-through
| Product type: | Media Converter |
|---|---|
| Interface: | 1000Base-T / 1000Base-X |
| Relay outputs: | 1 (1 A @ 30 VDC) |
| Ports: | 1 x RJ-45, 1 x SFP |
| Power input: | +12 VDC ~ +48 VDC, redundant |
| Operating temperature: | -30 °C ~ +75 °C |
| Mounting: | DIN-rail, wall (optional) |
| Housing: | Metal |
Technische Daten

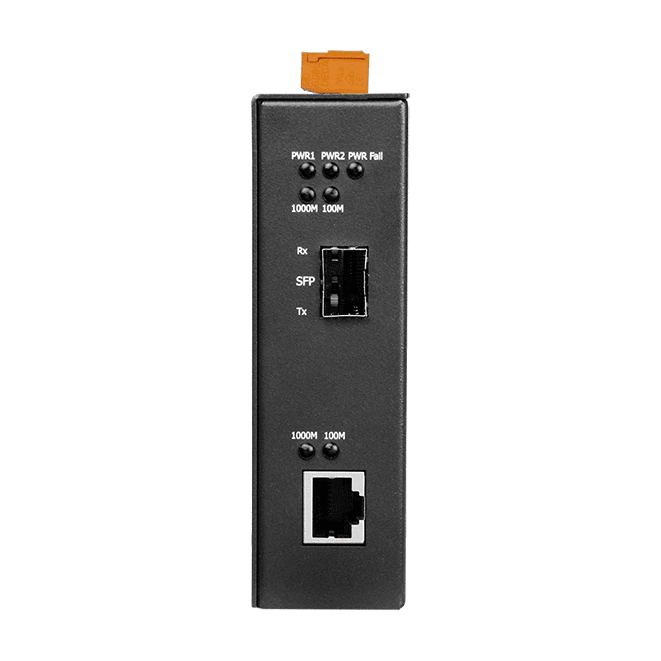

| LED Indicators | |
|---|---|
| Status | PWR1, PWR2, P-Fail, Link/Act, 100M, 1000M |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000Base-T(X) |
| Standards | IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX; IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity |
| Processing Type | Store & forward |
| Frame Buffer Memory | 512 Kbit |
| Jumbo Frames | 16K |

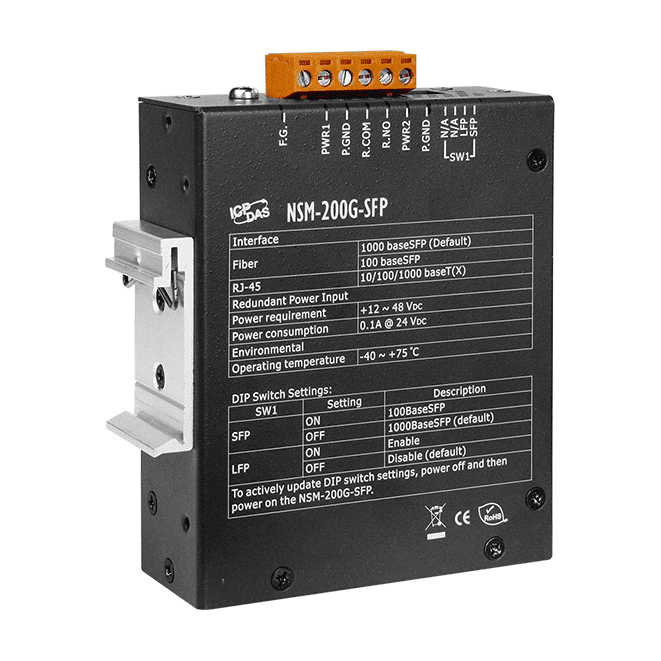

| DIP Switch | 1 x SFP Speed, LFP Enable |
| Fiber | |
| Ports | 1 x 100/1000 Mbps SFP Fiber Module slots |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC Redundant dual Input(Non-isolated) |
| Redundant Power Inputs | Yes |
| Consumption | 0.1 A @ 24 VDC |
| Alarm Output | Yes,Relay 1 A @ 30 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 33 x 120 x 99 (W x L x H) Wall mounting: 33 x 159 x 93 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting (optional) |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
