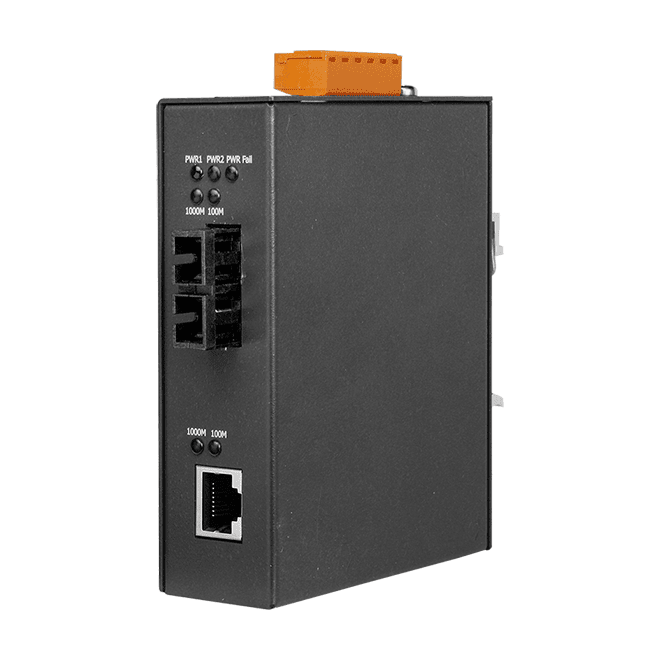

NSM-200SX Industrial 1000Base-T to 1000Base-SX Fiber Media Converter
Industrial Gigabit media converter linking one RJ-45 copper port to one multi-mode SC fibre port at 850 nm, rated for 0.55 km and operation from -30 °C to +75 °C.
- One 10/100/1000Base-T(X) RJ-45 port and one 1000Base-FX SC fibre port
- Multi-mode 50/125 μm fibre operation at 850 nm over up to 0.55 km
- Link Fault Pass-through (LFP) selectable via DIP switch
- Redundant +12 VDC ~ +48 VDC dual power inputs with reverse polarity protection
- Store & forward processing with IEEE 802.3ab, 802.3u and 802.3x support
- Operating temperature -30 °C ~ +75 °C in a metal casing
283,00 € pro Stück
| 1–9 Stück | 283,00 € | |
|---|---|---|
| 10–30 Stück | 274,00 € | −3 % |
| ab 31 Stück | 269,00 € | −5 % |
Produktinformationen "NSM-200SX Industrial 1000Base-T to 1000Base-SX Fiber Media Converter"
The NSM-200SX CR converts 1000Base-T copper Ethernet into 1000Base-SX multi-mode fibre, letting engineers extend a network segment or bridge a copper device onto a fibre backbone without changing the surrounding equipment. It offers a single RJ-45 port and a single SC fibre port, with Store & forward processing and IEEE 802.3 Ethernet, flow control and energy-efficient operation support.
Link Fault Pass-through (LFP) can be enabled with a DIP switch, so a fault on one side of the link is reflected to the other side. This helps the connected devices detect link loss quickly. The alarm relay output and dual redundant +12 VDC ~ +48 VDC power inputs with reverse polarity protection add resilience to panel installations.
The metal housing is suited to DIN-rail mounting, with wall mounting as an option, and the unit is rated for an operating range of -30 °C ~ +75 °C. Choose this variant when you need a multi-mode 850 nm link of up to 0.55 km with SC connectors.
Applications
- Extending the distance of an existing Ethernet network
- Connecting copper-only equipment to a fibre network
- Extending the distance between two devices over multi-mode fibre
| Product type: | Media Converter |
|---|---|
| Interface: | 1 x RJ-45, 1 x SC |
| Protocol: | IEEE 802.3 |
| Relay outputs: | Yes, 1 A @ 30 VDC |
| Power input: | +12 VDC ~ +48 VDC redundant |
| Operating temperature: | -30 ~ +75 °C |
| Mounting: | DIN-rail / wall |
| Housing: | Metal |
Technische Daten

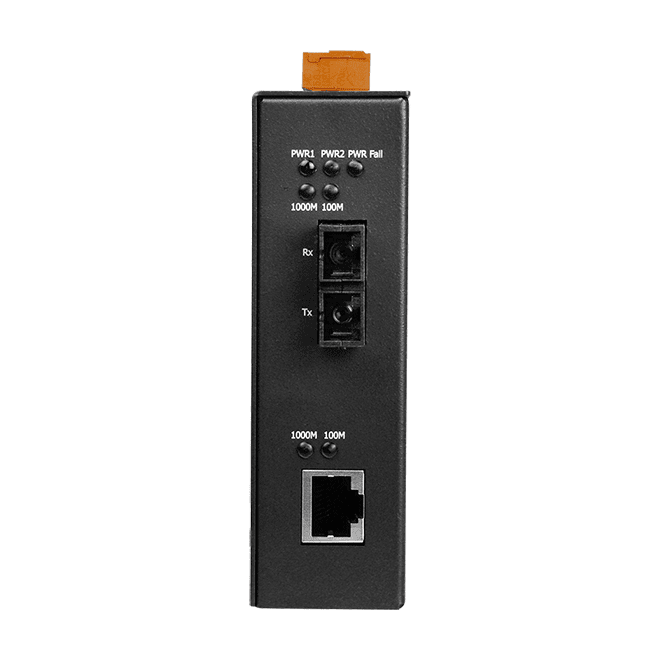

| LED Indicators | |
|---|---|
| Status | PWR1, PWR2, P-Fail, Link/Act, 100M, 1000M |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000Base-T(X) |
| Standards | IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX; IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity |
| Processing Type | Store & forward |
| Frame Buffer Memory | 512 Kbit |
| Jumbo Frames | 16K |
| DIP Switch | 1 x LFP Enable |
| Fiber | |
| Ports | 1 x 1000Base-FX, SC connector |
| Mode | Multi-Mode |
| Fiber Cable | 50/125 μm |
| Distance | 0.55 km |
| Wavelength | 850 nm |
| TX Output | -9.5 dBm Min. -4 dBm Max. |
| RX Sensitivity | -17 dBm |
| RX Overload | -3 dBm |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC Redundant dual Input(Non-isolated) |
| Redundant Power Inputs | Yes |
| Consumption | 0.1 A @ 24 VDC |
| Alarm Output | Yes,Relay 1 A @ 30 VDC |
| Mechanical | |
| Casing | Metal |

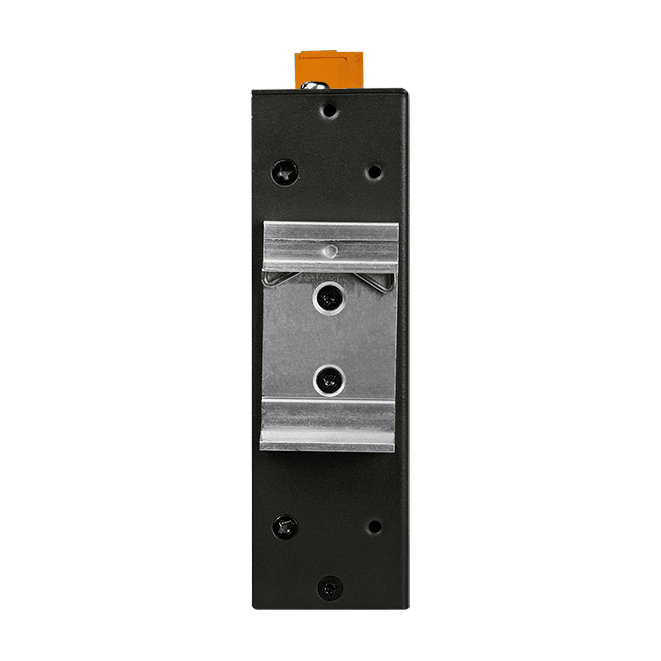

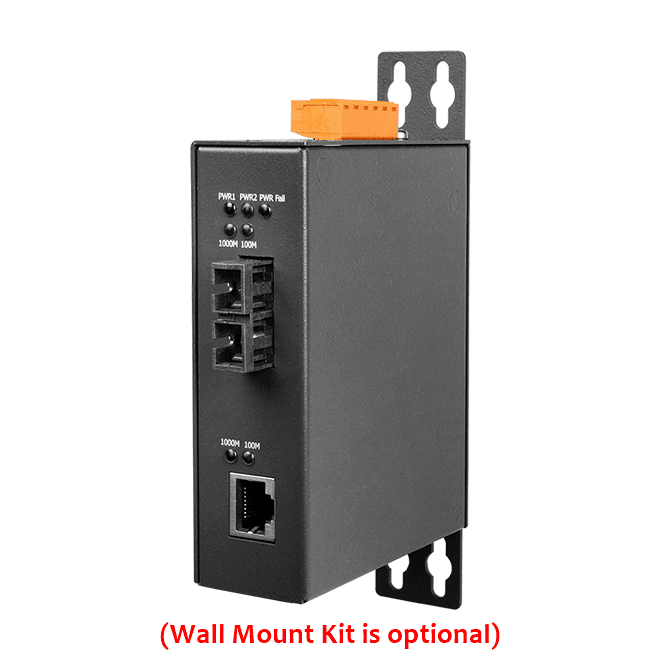

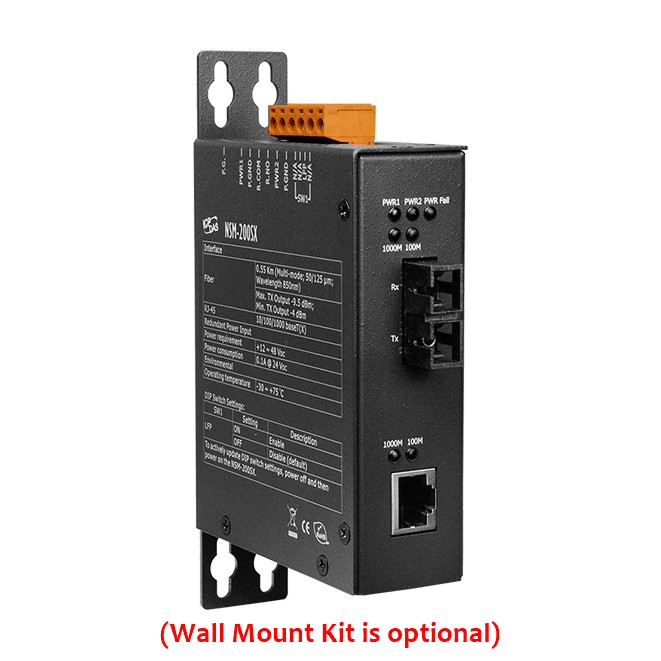

| Dimensions (mm) | DIN-rail mounting: 33 x 120 x 109 (W x L x H) Wall mounting: 33 x 159 x 103 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting (optional) |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
