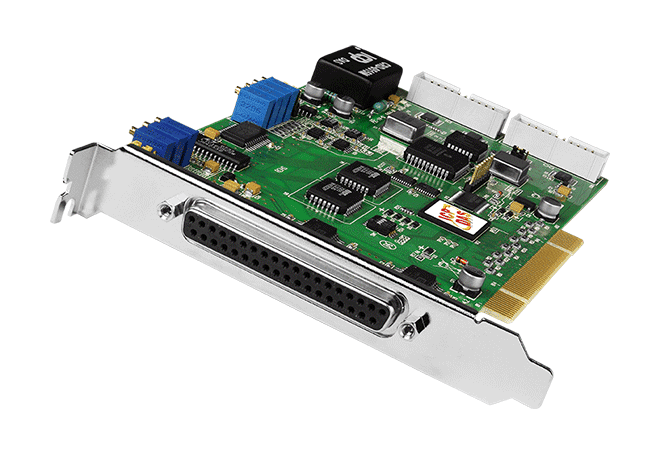

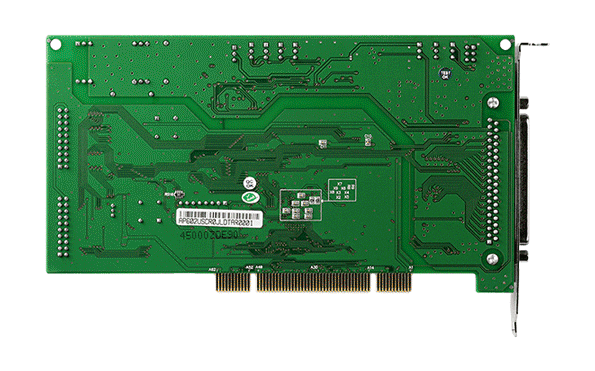

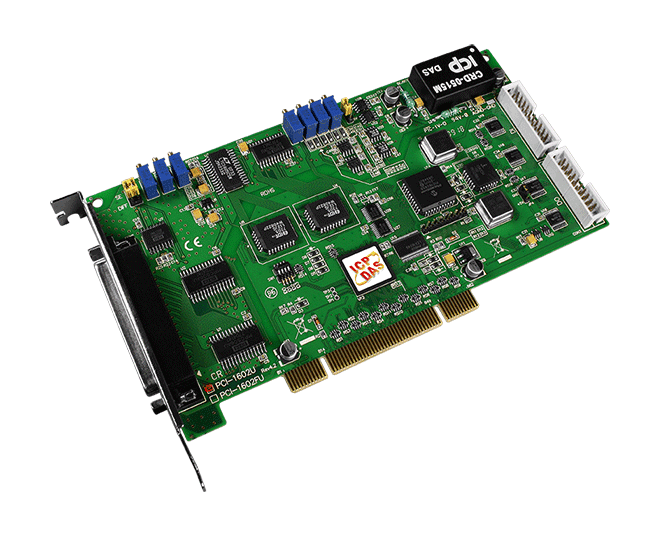

PCI-1602U/S Universal PCI Multifunction DAQ Board, 32-ch 16-bit AI, 100 kS/s
16-bit multifunction PCI board with 32 single-ended or 16 differential analogue inputs at 100 kS/s, plus 2-channel analogue output and 16-channel digital I/O. Includes CA-3710 D-Sub cable.
- 100 kS/s 16-bit AD converter with 32 single-ended or 16 differential analogue inputs
- Universal PCI interface supporting both 3.3 V and 5 V PCI bus
- 8192-sample hardware FIFO and MagicScan controller for multi-channel scanning
- Software, internal pacer and external (5 V/TTL) trigger modes
- 2-channel 12-bit analogue output and 16-channel 5 V/TTL digital input and output
- Pull-high and pull-low resistors on DI channels to define status when inputs are disconnected
866,00 € pro Stück
| 1–9 Stück | 866,00 € | |
|---|---|---|
| 10–30 Stück | 840,00 € | −3 % |
| ab 31 Stück | 822,00 € | −5 % |
Produktinformationen "PCI-1602U/S Universal PCI Multifunction DAQ Board, 32-ch 16-bit AI, 100 kS/s"
The PCI-1602U/S CR is the 100 kS/s version of the PCI-1602U multifunction board. It combines a 16-bit analogue input section, a 2-channel 12-bit analogue output and 16 channels each of 5 V/TTL digital input and output on one Universal PCI card. The board supports both the 3.3 V and 5 V PCI bus, so it can be fitted in either slot type.
The analogue inputs are jumper selectable between 32 single-ended and 16 differential channels, with a programmable gain of 1, 2, 4 or 8. An 8192-sample hardware FIFO and a MagicScan controller for multi-channel scanning support high-speed acquisition. The onboard Card ID switch lets software identify each board when two or more cards are installed in the same computer.
This board is fully compatible with the PCI-1602/F and can be used as a direct replacement without changes to software or driver. A DLL, an ActiveX control and sample programs for several languages are provided, and the card supports Linux, DOS and Windows. The order includes one CA-3710 D-Sub cable.
Applications
- High speed data acquisition systems
- Process monitoring and control
- Vibration analysis
- Digital pattern generation from digital I/O port
| Product type: | PCI multifunction DAQ board |
|---|---|
| Interface: | Universal PCI |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog inputs: | 32 single-ended/16 differential |
| Analog outputs: | 2 |
| Power input: | 300 mA @ +5 V |
| Operating temperature: | 0 ~ +60 °C |
Technische Daten
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 Male 20-bit ribbon x 2 |
| Card ID | Yes (4-bit) |
| Analog Input | |
| Channels | 32 single-ended/16 differential |
| Range | Gain: 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V |
| Resolution | 16-bit |
| Accuracy | 0.01 % of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate | PCI-1602U：100 kS/s. Max. PCI-1602FU：200 kS/s. Max. |
| Input Impedance | 10 MΩ/6 pF |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Zero Drift | ±4 ppm/°C of FSR |
| FIFO Size | 8192 samples |
| Trigger Mode | Software, Internal programmable pacer, External (5 V/TTL) |
| Data Transfer | Polling |
| Analog Output | |
| Channels | 2 |
| Range | Bipolar:±5 V, ±10 V |
| Resolution | 12-bit |
| Accuracy | 0.06% of FSR ±1 LSB @ 25 °C, ±10 V |
| Response Time | 1.0 MHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 8.33 V/μs |
| Operation Mode | Static Update |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 (Independent x 1/Internal pacer x 1/External pacer x 1) |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Input Frequency | 10 MHz Max. |
| Reference Clock | Internal: 8 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 16-bit |
| Power | |
| Consumption | 300 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 188 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
