PCIe-S118 PCI Express Serial Board, 8-Port RS-232
PCI Express x1 serial card adding eight RS-232 ports to a PC, with a 256-byte hardware FIFO per port and speeds up to 921600 bps for full-duplex serial devices.
- PCI Express x1 interface with a short card design
- Eight RS-232 ports with TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND signals
- 256-byte hardware FIFO for each port
- Baud rates from 2400 to 921600 bps with full-duplex communication
- Data bits 5, 6, 7 or 8; stop bits 1, 1.5 or 2; parity none, even, odd, mark or space
- Automatic COM port number assignment or software-controlled selection
177,00 € pro Stück
| 1–9 Stück | 177,00 € | |
|---|---|---|
| 10–30 Stück | 172,00 € | −3 % |
| ab 31 Stück | 168,00 € | −5 % |
Produktinformationen "PCIe-S118 PCI Express Serial Board, 8-Port RS-232"

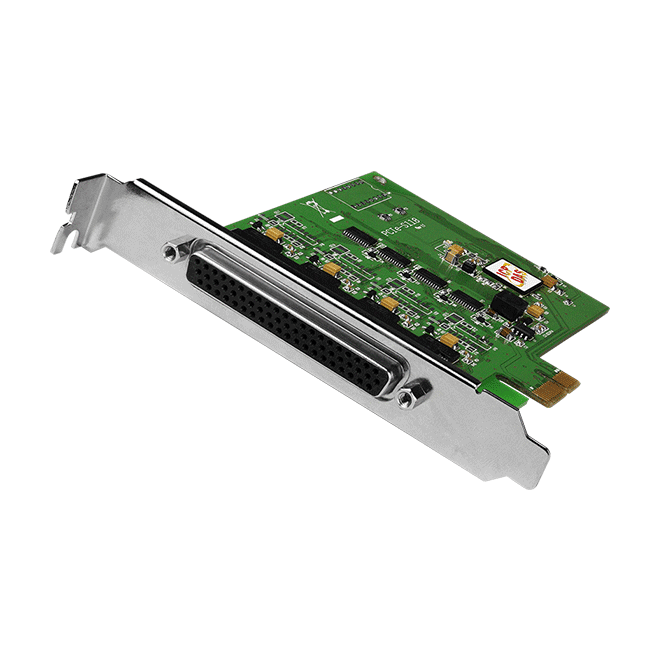

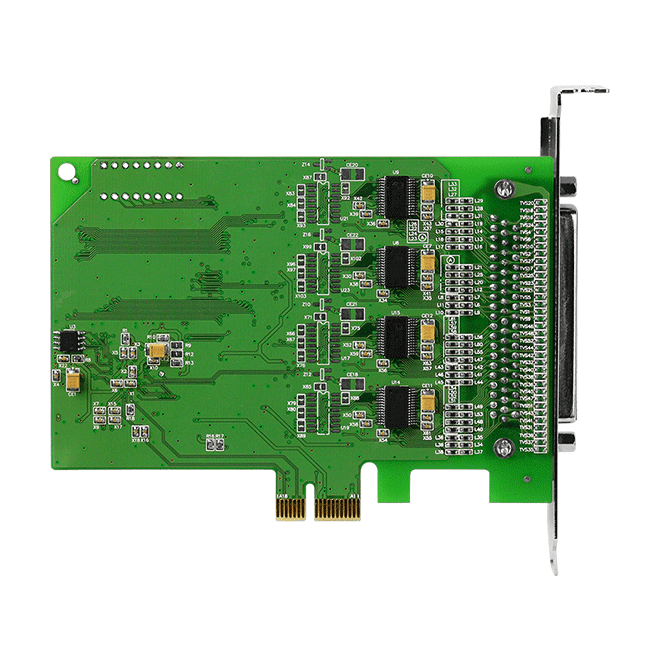

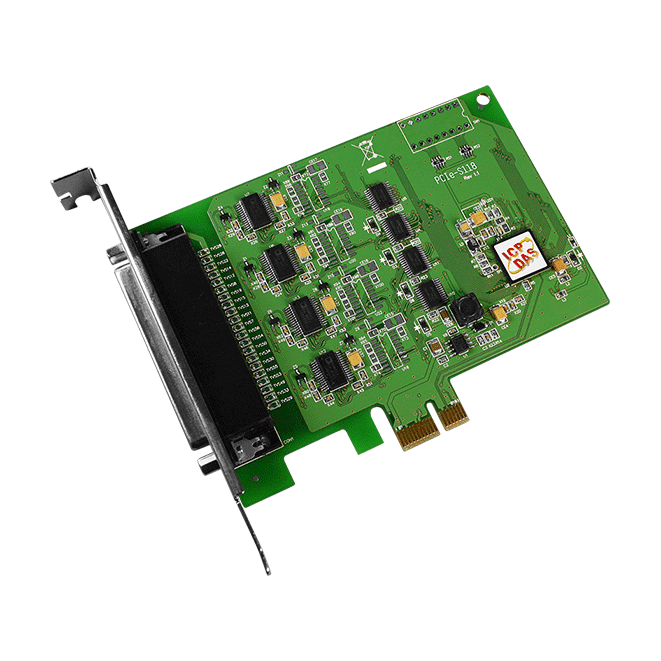

PCIe-S118 CR is a PCI Express x1 serial communication card that adds eight RS-232 ports to a host PC. Each port has its own 256-byte hardware FIFO and runs at rates from 2400 to 921600 bps, with full-duplex operation, so it suits serial devices that need steady throughput alongside other peripherals.
The card can be assigned an available COM port number automatically by the driver, or the COM port number can be chosen under software control. This makes it practical for engineers who need predictable port mapping when integrating several serial instruments into one system.

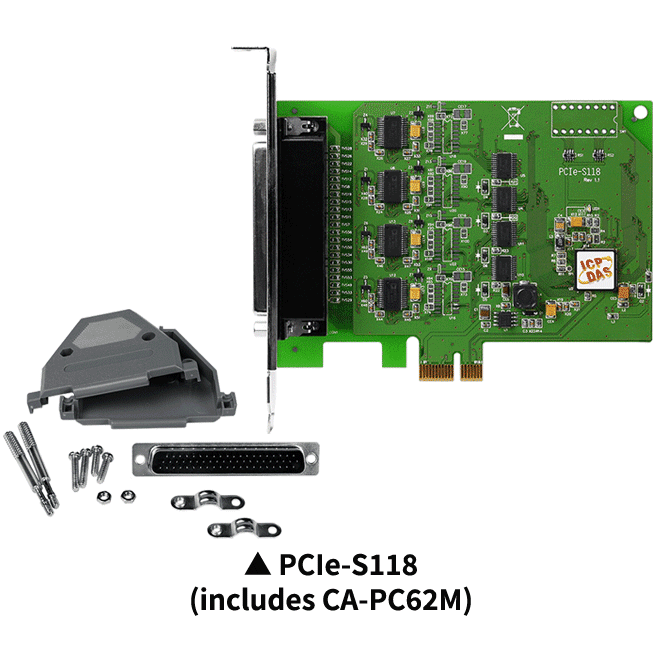

This ordering code includes one CA-PC62M D-Sub connector. It is intended for connecting bar code readers, serial printers, intelligent sensors, instrumentation and other equipment with an RS-232 port. Its short card design fits compact PC chassis.
Applications
- Industrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
| Product type: | PCI Express serial board |
|---|---|
| Interface: | PCI Express x1 |
| Ports: | 8 x RS-232 |
| Operating temperature: | 0 ~ +60 °C |
Technische Daten
| Hardware | |
|---|---|
| Connector | Female DB-62 |
| COM Ports | |
| Ports | 8 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND) |
| Baud Rate | 2400 - 921600 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 256 bytes |
| Power | |
| Consumption | 120 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 121 x 131 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
