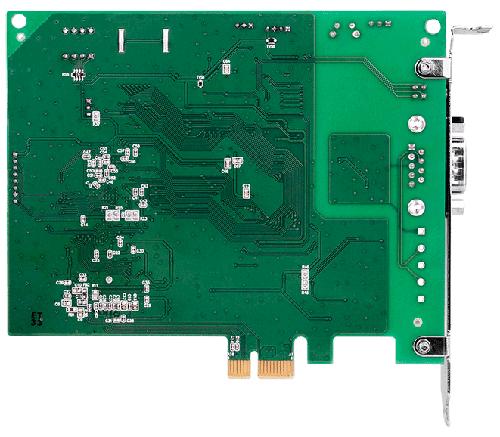

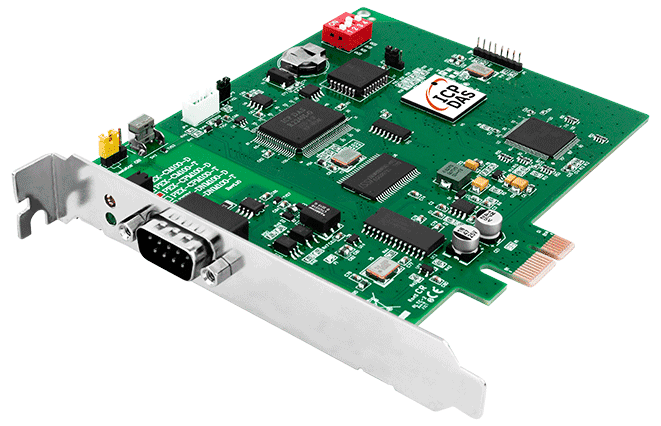

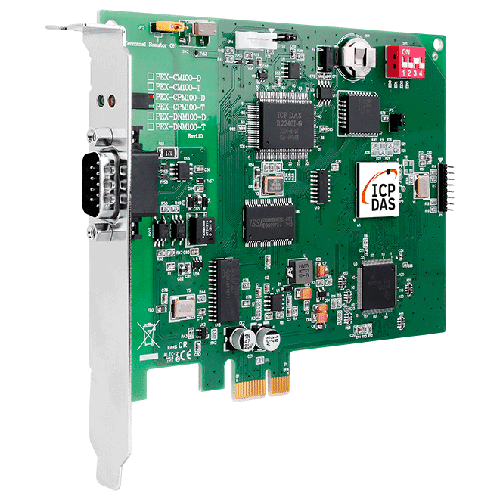

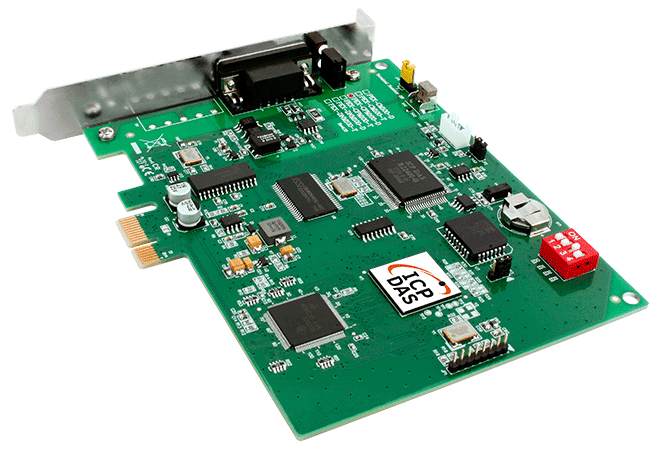

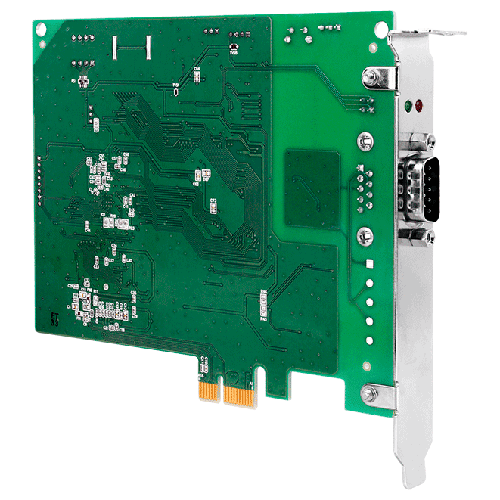

PEX-CPM100-D 1-Port CANopen Master PCI Express Board, 9-pin D-sub
1-port intelligent CANopen master PCI Express board with 9-pin D-sub connector. Complies with CiA 301 v4.02, supports up to 127 slaves, and runs CANopen master tasks in on-board firmware.
- CiA 301 v4.02 CANopen master supporting up to 127 slaves
- Network scan function and master listen mode
- Node Guarding and Heartbeat Consumer protocols with event-triggered EMCY, Node Guarding and Heartbeat
- PDO support with event-triggered, remote-requested, cyclic and acyclic SYNC modes and dynamic mapping
- EDS file support and automatic node addition at boot
- Built-in 120Ω terminal resistor, baud rate 10 k ~ 1 M
460,00 € pro Stück
| 1–9 Stück | 460,00 € | |
|---|---|---|
| 10–30 Stück | 446,00 € | −3 % |
| ab 31 Stück | 437,00 € | −5 % |
Produktinformationen "PEX-CPM100-D 1-Port CANopen Master PCI Express Board, 9-pin D-sub"
The PEX-CPM100-D is an active CANopen master card for PCI Express systems, providing a single CAN channel. An NXP SJA1000T controller and 82C250 transceiver handle bus arbitration, error detection with automatic correction and retransmission. A 16-bit microcontroller running the MiniOS7 real-time operating system manages message transmission, reception, filtering and storage, so the card can keep up with CAN traffic even on a PCI bus under heavy load.
Because the CANopen master logic runs in the card's own firmware, time-critical network tasks do not depend on the host PC. Application developers can use the CANopen library on the host, with data exchanged with the firmware through memory mapping while the card is active.
The board also works with the CANopen Motion Library, which follows the CiA-402 specification and covers position, velocity and torque control as well as synchronised control. Refer to the manufacturer's CANopen Motion Library documentation for details.
Applications
- CANopen network mastering in PC-based automation systems
- Motion control on CANopen networks using the CiA-402 motion library
| Product type: | PCI Express CANopen master board |
|---|---|
| Interface: | PCI Express |
| Protocol: | CANopen |
| Ports: | 1 |
| Isolation: | 3000 VDC (DC-to-DC), 2500 Vrms (photo-coupler) |
| Operating temperature: | 0 ~ +60 °C |
Technische Daten
| Software | |
|---|---|
| Driver | Windows XP/7/8/10 (32-bit/64-bit OS) |
| SDK | VB 6.0, BCB 6.0, VC++, C#.net, VB.net |
| CPU Module | |
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
| Status | 1 x Power and Communication |
| PC Bus | |
| Type | PCI Express bus |
| Board No. | By DIP switch |
| CANopen | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02 |
| NMT | Master |
| Power | |
| Consumption | 300 mA @ 5 |
| Mechanical | |
| Dimensions (mm) | 133 x 22 x 98 (W x L x H) |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
