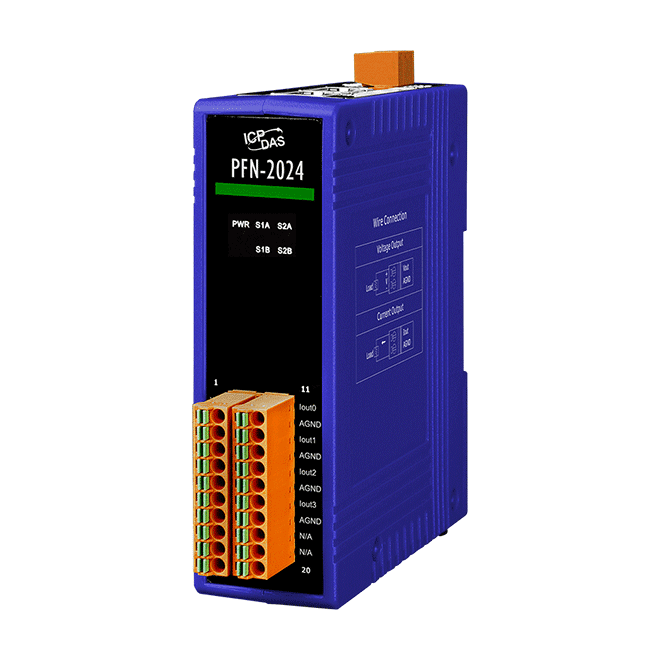

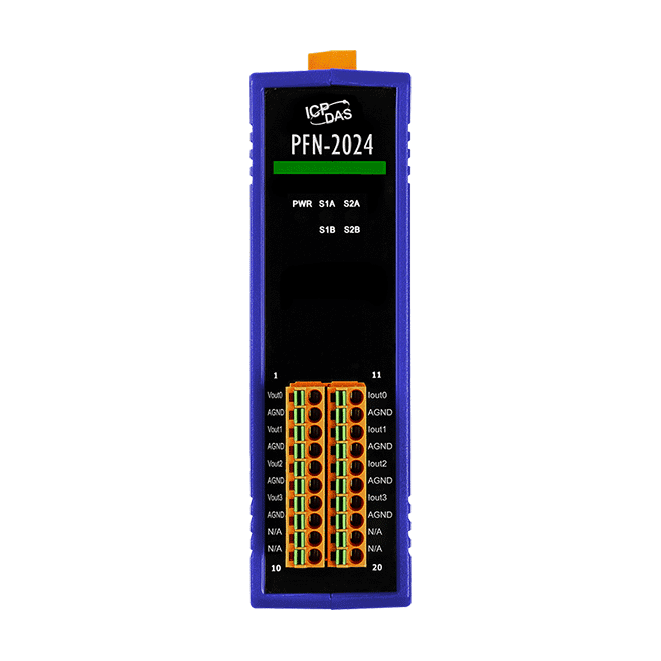

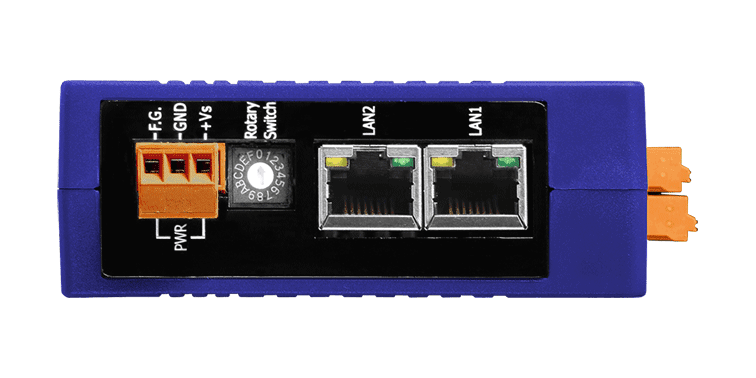

PFN-2024 PROFINET I/O Module, 4-channel Isolated Analog Output
PROFINET IO Device module with four isolated 16-bit analog outputs, supporting current (0~20mA, 4~20mA) and voltage (0~10V, +/-10V, 0~5V, +/-5V) ranges. Configured via GSDML file.
- PROFINET IO Device with Conformance Class B and RT Class 1
- Minimum cyclic time of 1 ms
- Four isolated analogue output channels, 1500 VDC isolation
- 16-bit DAC resolution with accuracy of +/- 0.1% of FSR
- Selectable ranges: 0~20mA, 4~20mA, 0~10V, +/-10V, 0~5V, +/-5V
- Generic GSDML file (Version 2.25) for any PROFINET engineering tool
446,00 € pro Stück
| 1–9 Stück | 446,00 € | |
|---|---|---|
| 10–30 Stück | 433,00 € | −3 % |
| ab 31 Stück | 424,00 € | −5 % |
Produktinformationen "PFN-2024 PROFINET I/O Module, 4-channel Isolated Analog Output"
The PFN-2024 CR adds four isolated analogue outputs to a PROFINET network as an IO Device. Each channel is isolated at 1500 VDC and can be set to a current or voltage range to suit the connected field device, from 0~20mA and 4~20mA through to 0~10V, +/-10V, 0~5V and +/-5V.
Engineers can integrate the module using the generic GSDML file (Version 2.25) in any PROFINET engineering tool. It supports Conformance Class B and RT Class 1, with a minimum cyclic time of 1 ms, and includes common Ethernet and PROFINET services such as DCP, LLDP and I&M.
With a 16-bit DAC, accuracy of +/- 0.1% of FSR and 4 kV contact ESD protection on all terminals, the PFN-2024 CR suits analogue output control in factory and process automation. It mounts on DIN-rail and operates from -25 ~ +75 ℃.
Applications
- Industrial Automation
- Factory Automation
- Process Automation
| Product type: | PROFINET I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | PROFINET |
| Analog outputs: | 4 |
| Isolation: | 1500 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 32-bit CPU Core |
| EEPROM | 8 KB |
| Flash | 4 MB |
| SRAM | 32 MB |
| Watchdog Timer | CPU built-in |
| LED Indicators | |
| Status | PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
| Analog Output | |
| Channels | 4 |
| Range | 0~20mA, 4~20mA (current sourcing) 0~10V, +/-10V, 0~5V, +/-5V |
| Resolution | 16 bit |
| Accuracy | +/- 0.1% of FSR |
| Isolation | 1500 VDC |
| Ethernet | |
| Services | ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| PROFINET | |
| Conformance Classes | Class B |
| Services | RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time | 1 ms (min) |
| Protocol | PROFINET IO Device |
| Power | |
| Consumption | 7 W |
| Mechanical | |
| Dimensions (mm) | 33 x 107 x 126 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
