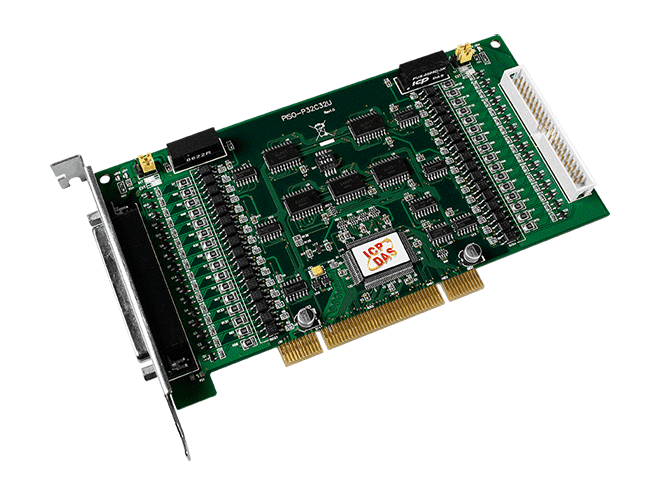

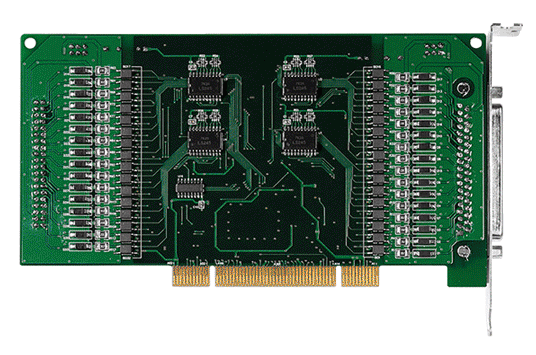

PISO-P32C32U Universal PCI Card, 32-ch Isolated DI and 32-ch NPN Sink DO
32-channel isolated digital input and 32-channel open collector NPN sink digital output PCI board for 3.3 V/5 V PCI slots, with a Card ID switch.
- Universal PCI interface supporting the 3.3 V and 5 V bus, 32-bit, 33 MHz
- 32 optically isolated digital inputs, wet contact or photocoupler, sink/source
- 32 open collector sink (NPN) outputs, 100 mA/+30 V per channel at 100% duty
- 3750 Vrms photo-isolation in four isolated banks
- Built-in DC/DC converter with 3000 VDC isolation for the input port
- Digital output status readback at register level
295,00 € pro Stück
| 1–9 Stück | 295,00 € | |
|---|---|---|
| 10–30 Stück | 286,00 € | −3 % |
| ab 31 Stück | 280,00 € | −5 % |
Produktinformationen "PISO-P32C32U Universal PCI Card, 32-ch Isolated DI and 32-ch NPN Sink DO"
The PISO-P32C32U is a universal PCI card that adds 32 optically isolated digital inputs and 32 open collector sink (NPN) digital outputs to a host PC. The channels are arranged in four isolated banks, so the board suits designs where field wiring must be kept apart from the computer.
Each input uses a photocoupler and can be powered either from an internal isolated supply or from an external source, selected by jumper. The input port can alternatively draw power from the PC side through the onboard DC/DC converter. The output port requires external power, and each output is a Darlington transistor rated at 100 mA/+30 V per channel at 100% duty.
Where two or more cards are installed in one computer, the Card ID switch lets software identify each board. Drivers are provided as a DLL and ActiveX control, with sample programs for Visual C++, Visual Basic, C#.NET and LabVIEW among other environments, for Linux, DOS and Windows. The ordering code includes one CA-4037B cable and two CA-4002 D-Sub connectors.
Applications
- Factory automation
- Product test
- Laboratory automation
| Product type: | PCI DAQ board |
|---|---|
| Interface: | PCI |
| Digital inputs: | 32 |
| Digital outputs: | 32 |
| Isolation: | 3750 Vrms |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | PCI slot |
Technische Daten
| Hardware | |
|---|---|

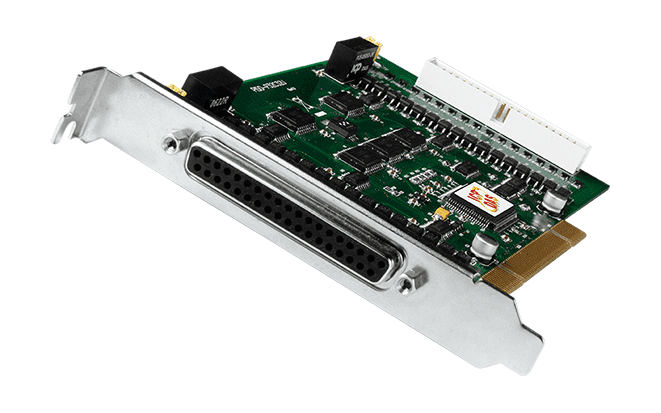

| Connector | Female DB37 x 1 40-pin box header x 1 |
| Card ID | Yes (4-bit) for Version 1.1 or above |
| Digital Input | |
| Channels | 32 |
| Type | Wet Contact Photocoupler |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: 9 ~ 24 V(Min. 7 V; Max. 30 V) |
| OFF Voltage Level | Dry: Open Wet: 0 ~ 1 V |
| Response Speed | 4 kHz (Typical) |
| Trigger Mode | Static Update |
| Isolation | 3750 Vrms (Using external power) |
| Digital Output | |
| Channels | 32 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Operation Mode | Static Update |
| Load Current | 100 mA/+30 V for each channel @ 100% duty |
| Response Speed | 4 kHz (Typical) |
| Isolation | 3750 Vrms |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | 600 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 180 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
