PMC-5231M-4GC Power Meter Concentrator, 4G IIoT, China Band
Metal-cased IIoT power meter concentrator with 4G communication for the China frequency band. Collects data from Modbus power meters and I/O modules and publishes it over Modbus TCP, MQTT and SNMP.
- Browser-based web configuration, no programming required
- Supports up to 24 ICP DAS Modbus power meter modules plus 8 Modbus I/O modules, with a maximum of 16 Modbus TCP modules
- Built-in IF-THEN-ELSE logic engine and schedule functions for power demand management
- Power data logging to microSD card with automatic send-back after network recovery
- Alarm notifications via LINE, Telegram, Email or SMS
- Modbus TCP/RTU, SNMP, FTP and MQTT protocols for back-end integration
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "PMC-5231M-4GC Power Meter Concentrator, 4G IIoT, China Band"

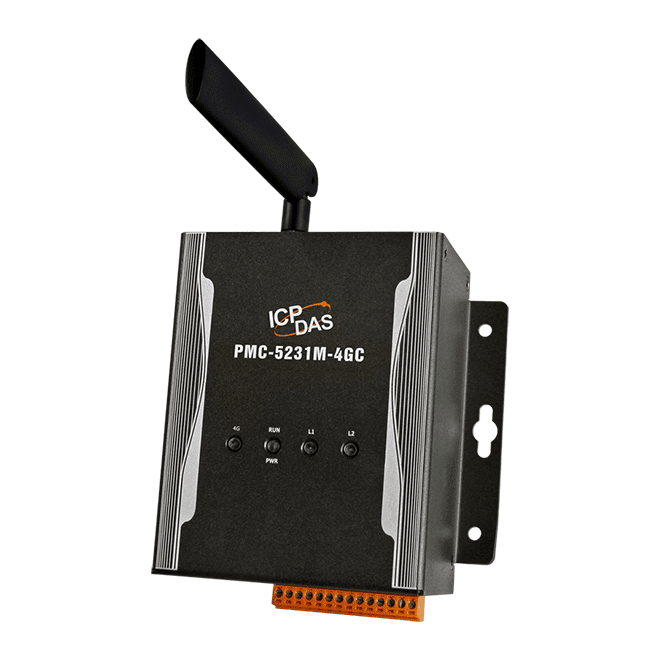

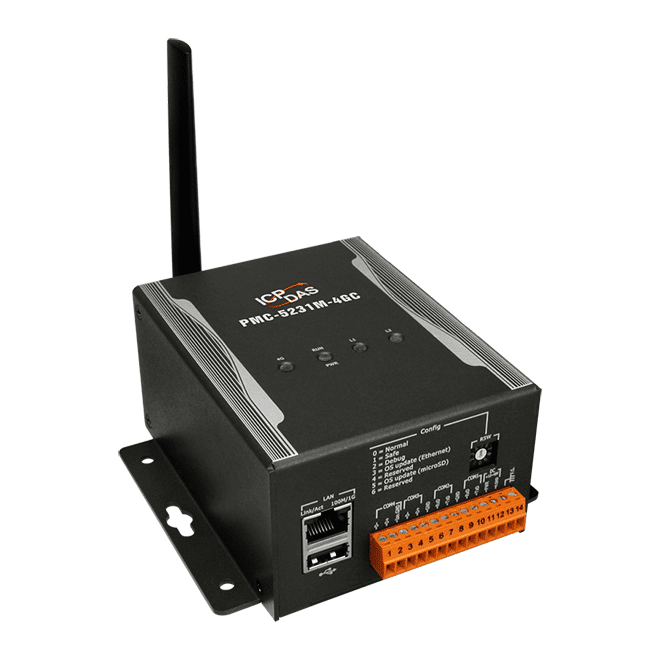

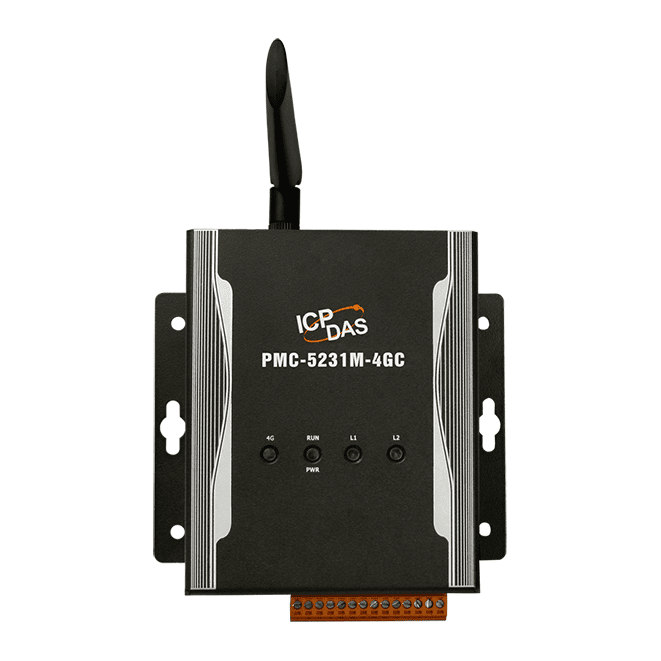

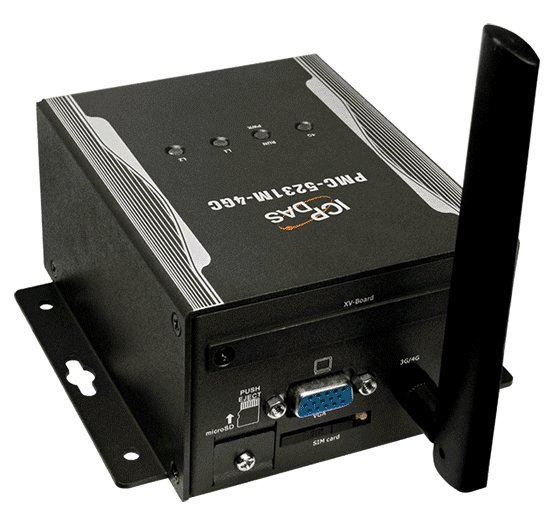

PMC-5231M-4GC CR is a metal-cased power meter concentrator for energy monitoring and management projects. It gathers readings from ICP DAS PM Series Modbus power meters over RS-485 or Ethernet, and can also bring in M-7000 series and standard Modbus I/O modules, so that consumption data and device control sit in one unit. The 4G variant supports the China frequency band.
Configuration is done entirely through a browser-based web interface, so no programming is needed. Power data can be viewed in real time or as history, and statistics reports are generated from the same pages. A built-in IF-THEN-ELSE logic engine and schedule functions support power demand management, with alarm messages sent via LINE, Telegram, Email or SMS.
Power data is written to a microSD card and automatically sent back to the back-end system when a dropped network connection is restored. Integration with SCADA, MES and IoT platforms is provided through Modbus TCP/RTU, SNMP, FTP and MQTT, and connection to Microsoft Azure, IBM Bluemix and ICP DAS IoTstar Cloud is supported.
Applications
- Energy measurement, monitoring and management
- Power demand management
- Power consumption monitoring of devices with load shedding control
| Product type: | Power Meter Concentrator |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | FTP, Modbus RTU, Modbus TCP, MQTT, SNMP |
| Ports: | 1 x RJ-45, 4 x COM |
| Isolation: | COM4 2500 VDC |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| Protocol | • Modbus TCP/RTU for SCADA software • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • DDNS |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • Power meters & I/O modules monitoring and control • Data Logger operation • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Internal Register operation (70 set supported) • Instant message sending function (LINE, Telegram) • non-SSL & SSL Email sending function. • SMS message sending function. • SNTP Time Synchronization |
| Power Management | • Power Data Display • Historical Power Data Report • Power Demand Management • PUE Setting and Display |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | 32-bit ARM CPU (1 GHz) |
| Storage Expansion | microSD socket with 32 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators | |
| Status | 1 x Power/Running 1 x Modem Status 1 x Mobile Network Status |
| 2G System | |
| Frequency Band | GSM: 850/900/1800/1900 MHz |
| GPRS Connectivity | GPRS class 12/10; GPRS station class B |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps; Upload: Max 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2 Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4 Mbps |
| Frequency Band | WCDMA 900/2100 MHz; TD-SCDMA 1900/2100 MHz; CDMA2000 (BC0) 800 MHz |
| 4G System | |
| Data Transmission Rate | Download Max 100 Mbps; Upload Max 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B8 MHz TDD LTE: B38/B39/B40/B41 MHz |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | M-7000/DL/IR Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| Power Meter | PM Series Modbus meter |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), non-isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 6.5 W |
| Mechanical | |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail Mounting/Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
