PPDS-742-IP67 Programmable Serial-to-Ethernet Device Server, 2x RS-232/RS-485
Programmable serial-to-Ethernet device server with 2x RS-232 and 2x RS-485 ports, PoE and an IP67 plastic casing for harsh environments.
- Connects RS-232 and RS-485 serial devices to an Ethernet network
- Supports Modbus TCP to RTU/ASCII gateway operation
- VxComm Utility provides standard COM ports on 32/64-bit Windows 7 SP1, 10, 2012 and 2016
- Programmable via Xserver structure on built-in MiniOS7, which boots in one second
- Power over Ethernet (IEEE 802.3af, Class 1) or +12 ~ 48 VDC terminal block input
- IP67 plastic casing with rugged RJ-45 connector
460,00 € pro Stück
| 1–9 Stück | 460,00 € | |
|---|---|---|
| 10–30 Stück | 446,00 € | −3 % |
| ab 31 Stück | 437,00 € | −5 % |
Produktinformationen "PPDS-742-IP67 Programmable Serial-to-Ethernet Device Server, 2x RS-232/RS-485"

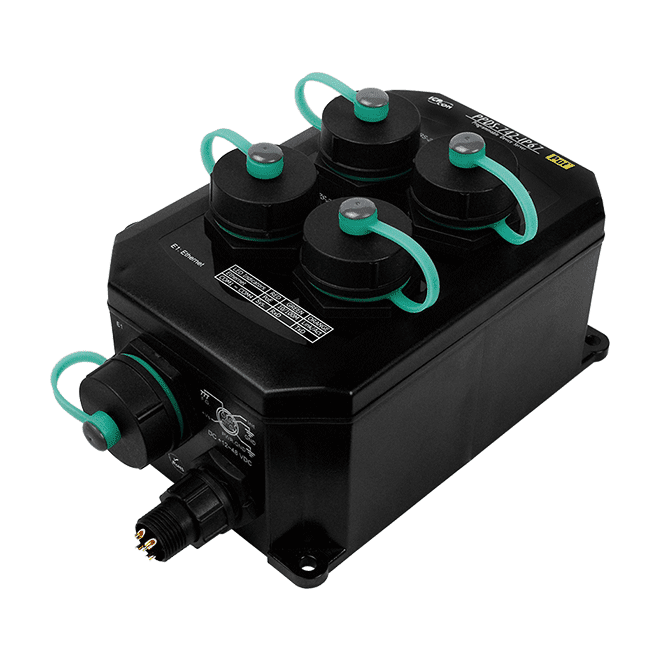

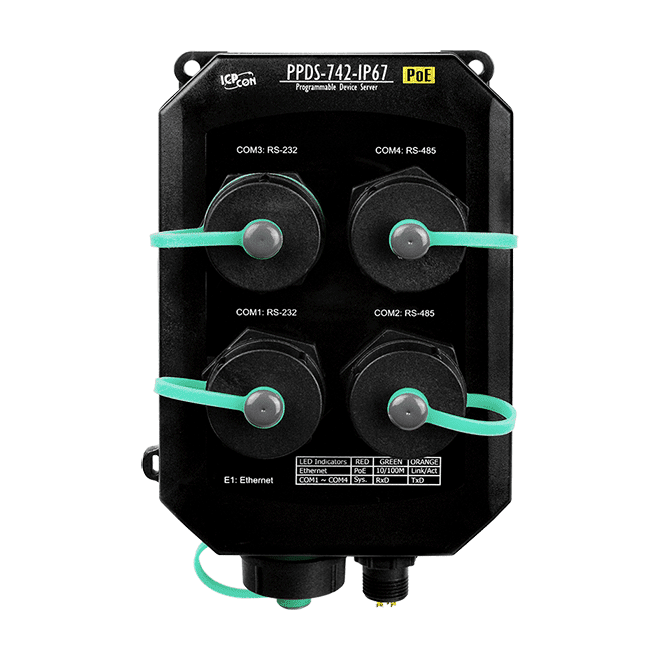

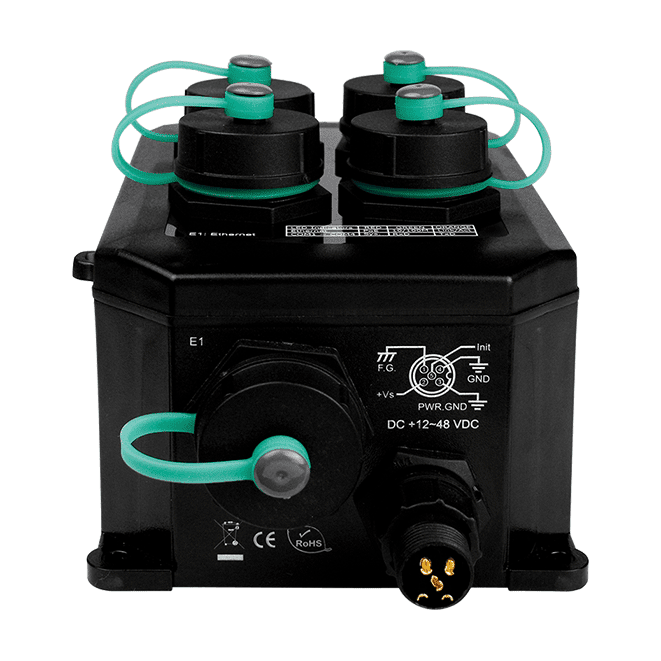

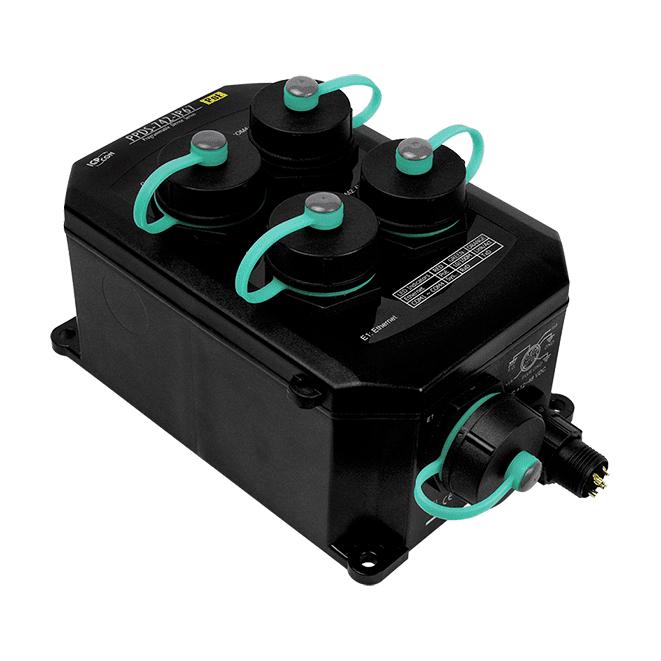

PPDS-742-IP67 CR links RS-232 and RS-485 serial equipment to an Ethernet network. The built-in COM ports can be presented as standard COM ports on a Windows PC using the VxComm Utility, and the unit can operate as a Modbus TCP to RTU/ASCII gateway.
Applications are developed on the Xserver programming structure running on the built-in MiniOS7 firmware, which the manufacturer states boots in one second. The serial ports carry +/-4 kV ESD protection, the RS-485 port uses a self-tuner ASIC controller, and a watchdog timer is fitted for unattended operation.
The plastic IP67 casing and rugged RJ-45 connector suit demanding sites exposed to water, oil, dust and vibration. The unit is powered either by PoE (IEEE 802.3af, Class 1) or from a +12 ~ 48 VDC supply, and this ordering code includes a 5-pin waterproof power plug (4SIO1K0000013). It is wall mounted; DIN-rail mounting applies to /DIN versions only.
Applications
- Factory automation
- Transportation automation
- Chemical industry automation
- Marine automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 4 serial, 1 Ethernet |
| PoE: | Yes (IEEE 802.3af, Class 1) |
| Power input: | +12 ~ 48 VDC, PoE |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Wall |
| Housing: | Plastic, IP67 |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power 1 x PoE 2 x Ethernet 8 x Communication |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, Auto MDI/MDI-X, LED indicators), PoE (IEEE 802.3af, Class 1) |
| COM Ports | |
| Ports | 2 x 5-wire RS-232 2 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 ~ COM4 |
| Stop Bit | 1, 2: for COM1 ~ COM4 |
| Node Address | 254 (max.) |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 2.2 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 88 mm x 82 mm x 149 mm (W x L x H) |
| Installation | Wall mounting (DIN-Rail mounting for /DIN versions) |
| Environment | |
| Operating Temperature | -10 °C ~ +60 °C |
| Storage Temperature | -10 °C ~ +60 °C |
| Humidity | 100% RH for operating temperature -10 °C ~ +60 °C |
Technische Daten laut Hersteller. Änderungen vorbehalten.
