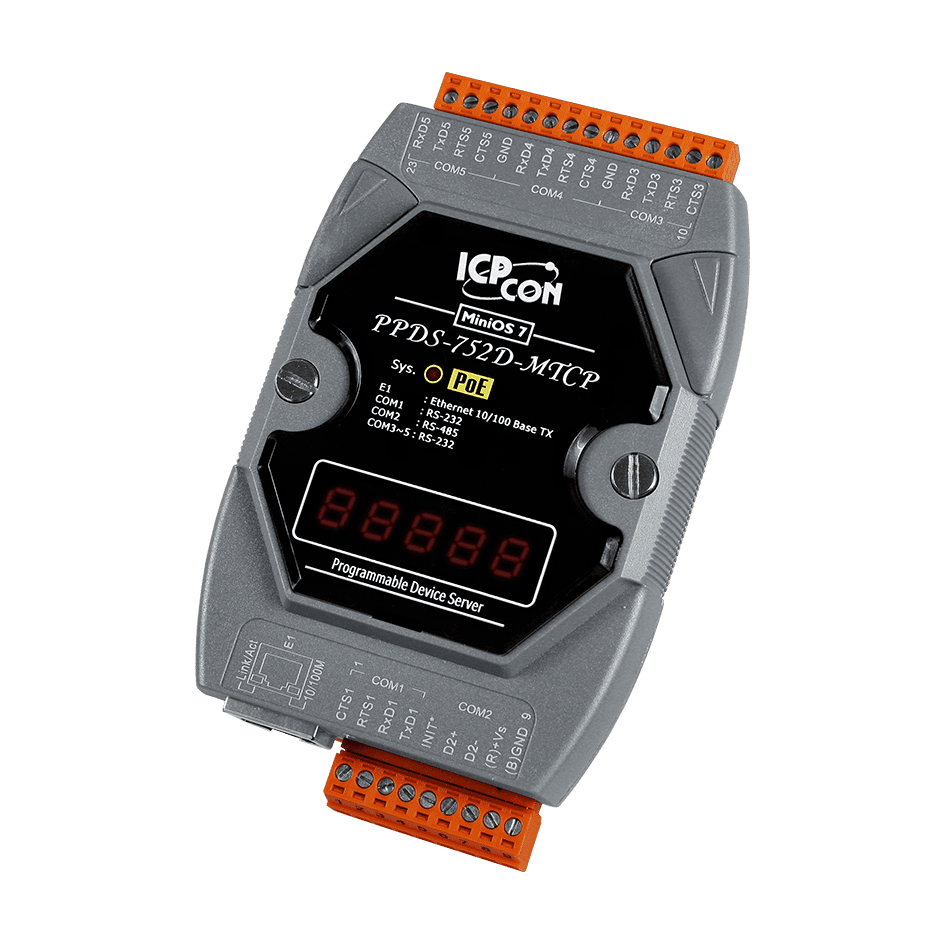

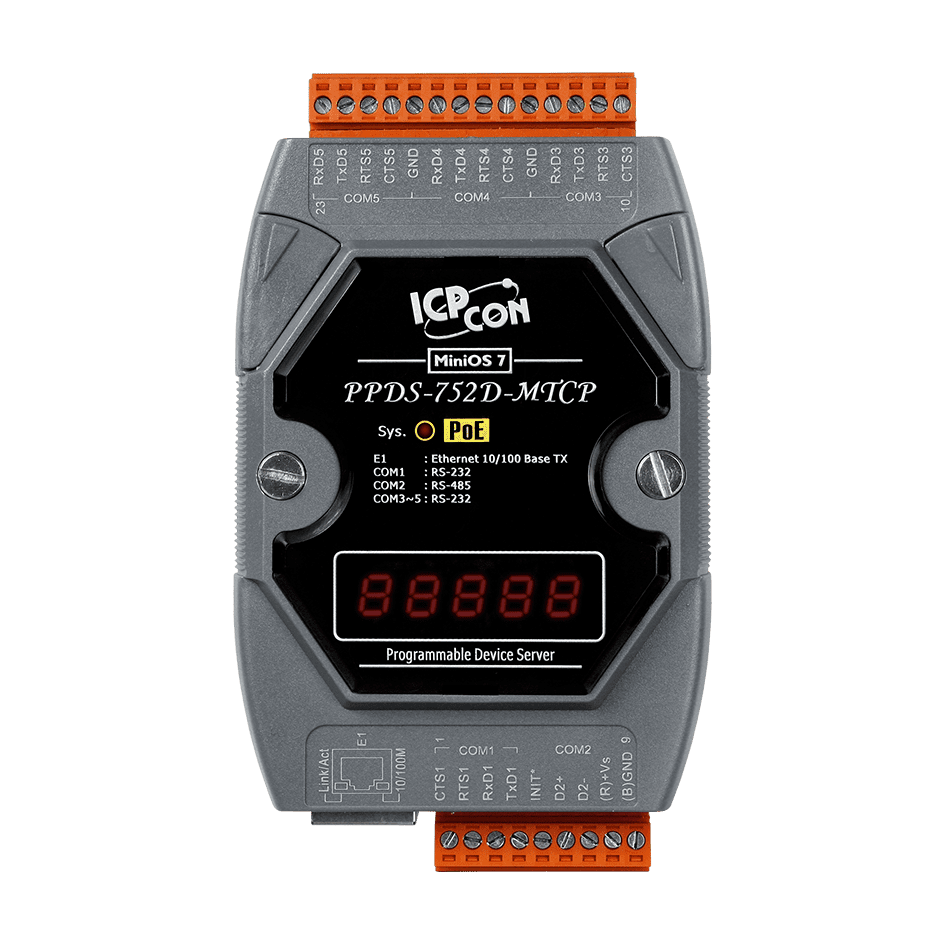

PPDS-752D-MTCP PoE Serial-to-Ethernet Device Server, 4x RS-232 and 1x RS-485
Programmable PoE device server with four RS-232 ports and one RS-485 port, bridging serial devices to Ethernet and acting as a Modbus TCP to RTU/ASCII gateway.
- Four RS-232 ports and one RS-485 port for linking serial devices to Ethernet
- Modbus TCP to RTU/ASCII gateway for SCADA and HMI clients
- Virtual COM support via VxComm utility for Windows 7 SP1/10/2012/2016
- Power over Ethernet, IEEE 802.3af Class 1, or +12 ~ 48 VDC terminal block power
- Programmable device server on built-in MiniOS7 with Xserver programming structure
- Watchdog Timer and +/-4 kV ESD protection on serial ports
354,00 € pro Stück
| 1–9 Stück | 354,00 € | |
|---|---|---|
| 10–30 Stück | 344,00 € | −3 % |
| ab 31 Stück | 337,00 € | −5 % |
Produktinformationen "PPDS-752D-MTCP PoE Serial-to-Ethernet Device Server, 4x RS-232 and 1x RS-485"
PPDS-752D-MTCP connects legacy serial equipment to an Ethernet network. Four RS-232 ports and one RS-485 port give engineers a compact way to bring several serial devices online without rewriting their firmware. Virtual COM drivers let Windows applications address the device server's serial ports as if they were local COM ports.
The unit runs a programmable device server environment on a built-in MiniOS7 kernel, so custom Ethernet logic can be developed on the device itself. It also operates as a Modbus TCP to RTU/ASCII gateway, allowing Modbus TCP SCADA or HMI clients to poll RTU or ASCII slaves on the serial side. Power can be supplied over a standard Ethernet cable from an IEEE 802.3af Class 1 PoE switch, or from a +12 ~ 48 VDC terminal block.
For field installation, the unit offers a Watchdog Timer, ESD protection of +/-4 kV on the serial ports and a removable terminal block for wiring. It mounts on DIN-rail or wall and is supplied with a CA-0910 cable. The model is listed with CE, UKCA, FCC, RoHS and WEEE certification in the source data.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | 1x RS-485, 4x RS-232 |
| Protocol: | Modbus TCP |
| Ports: | 4 RS-232, 1 RS-485, 1 Ethernet |
| PoE: | IEEE 802.3af Class 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power/PoE 5 x digit 7 Segment |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 4 x 5-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 ~ COM5 |
| Stop Bit | 1, 2: for COM1 ~ COM5 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.9 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
