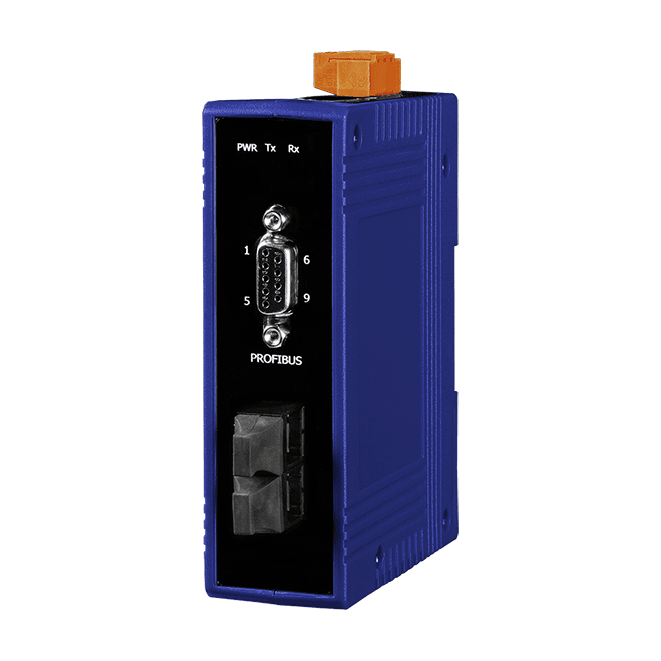

PROFI-2541-SC PROFIBUS DP to Multi-mode Fibre Converter, SC Connector
PROFIBUS DP to multi-mode fibre converter with SC connectors, detecting baud rates up to 3 Mbps and linking two units over fibre runs of up to 1.4 km.
- Converts PROFIBUS DP to multi-mode fibre optic transmission with SC-type connectors
- Automatic transmission rate detection up to 3 Mbps, with transparency on both sides
- Supports up to 32 stations per PROFIBUS segment
- Fibre link of up to 1.4 km (4593 ft) between two units, 850 nm wavelength, 62.5/125 μm cable
- 3000VDC isolation protection on the PROFIBUS side and network isolation protection
- 4KV ESD protection on all terminals
302,00 € pro Stück
| 1–9 Stück | 302,00 € | |
|---|---|---|
| 10–30 Stück | 293,00 € | −3 % |
| ab 31 Stück | 287,00 € | −5 % |
Produktinformationen "PROFI-2541-SC PROFIBUS DP to Multi-mode Fibre Converter, SC Connector"
PROFI-2541-SC CR converts PROFIBUS DP signals to multi-mode fibre optic cable, so a PROFIBUS segment can be extended over distance while the data path stays protected from electrical interference, surges and lightning. It suits plants where copper cabling is exposed to harsh conditions.
The converter detects the PROFIBUS transmission rate automatically, up to 3 Mbps, and passes traffic transparently in both directions. Up to 32 stations per PROFIBUS segment are supported. The fibre link uses 62.5/125 μm multi-mode cable at 850 nm, with a maximum length of 1.4 km (4593 ft) between two PROFI-2541 units.

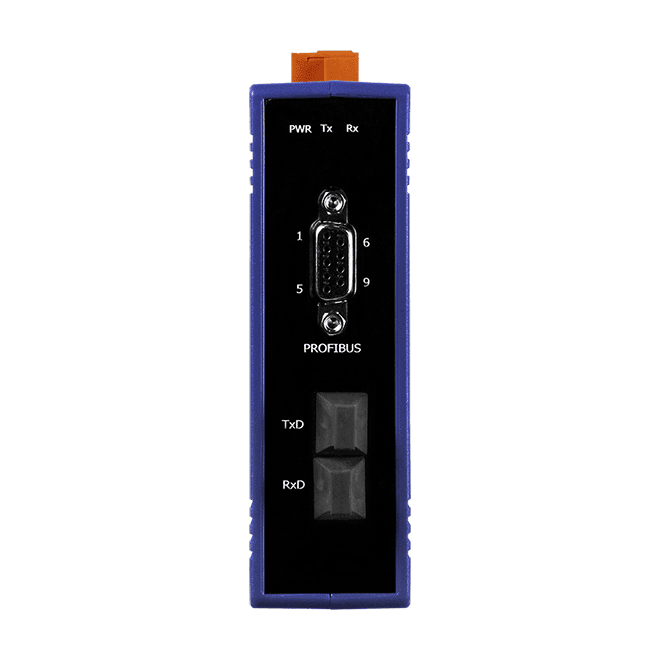

Network isolation protection is included, and the PROFIBUS side is rated at 3000 VDC isolation protection. Status is shown by PWR, TxD and RxD LEDs. The unit mounts on a DIN-rail, operates from -25 ~ +75℃, and has a 1 W power consumption.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Fibre converter |
|---|---|
| Interface: | PROFIBUS DP / Multi-mode fibre (SC) |
| Protocol: | PROFIBUS DP |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +75℃ |

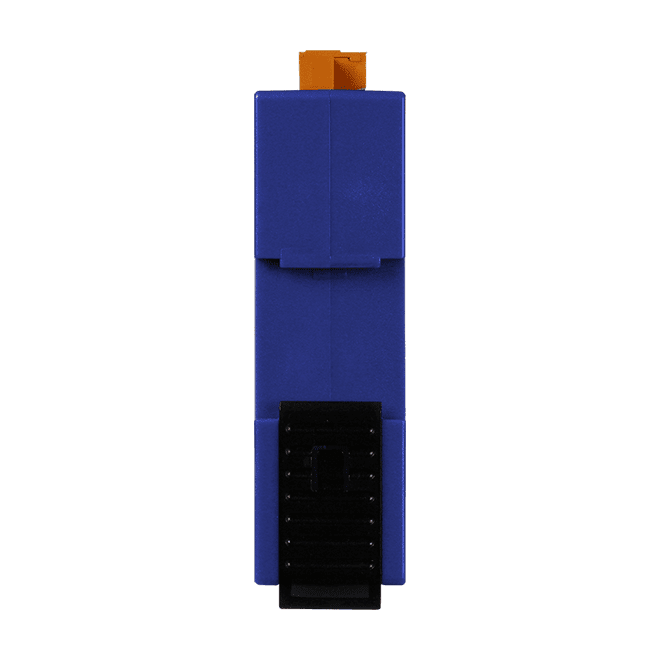

| Mounting: | DIN-rail |
Technische Daten
| LED Indicators | |
|---|---|
| Status | PWR LED, TxD LED, RxD LED |
| Fiber | |
| Fiber Cable | 62.5 / 125 μm |
| Wavelength | 850 nm |
| PROFIBUS | |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |

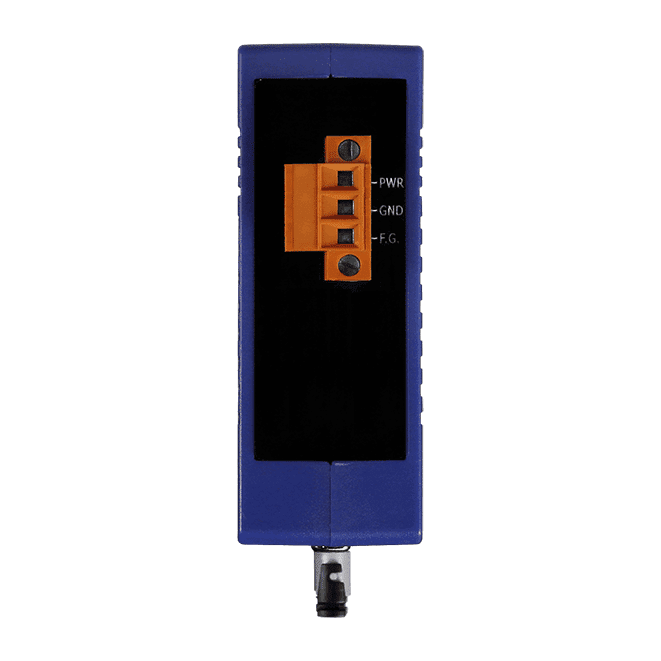

| Power | |
| Consumption | 1 W |
| Mechanical | |
| Dimensions (mm) | 33.0 x 126.8 x 104.5 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +85 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
