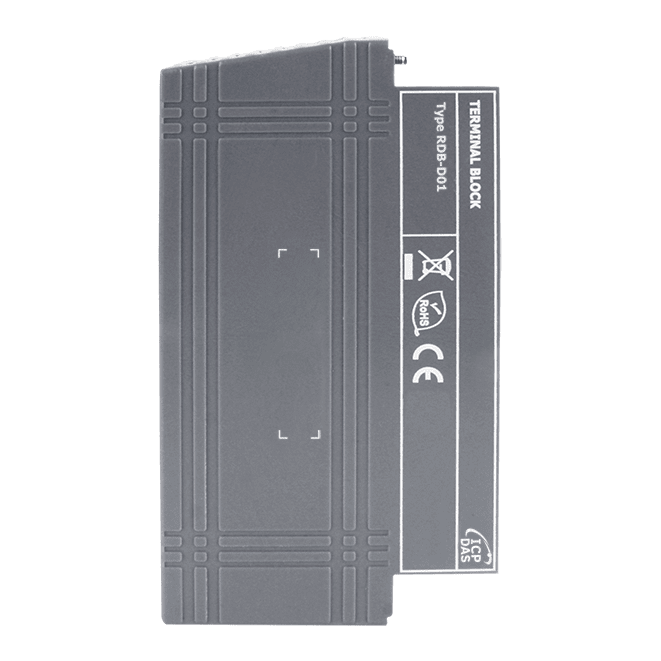

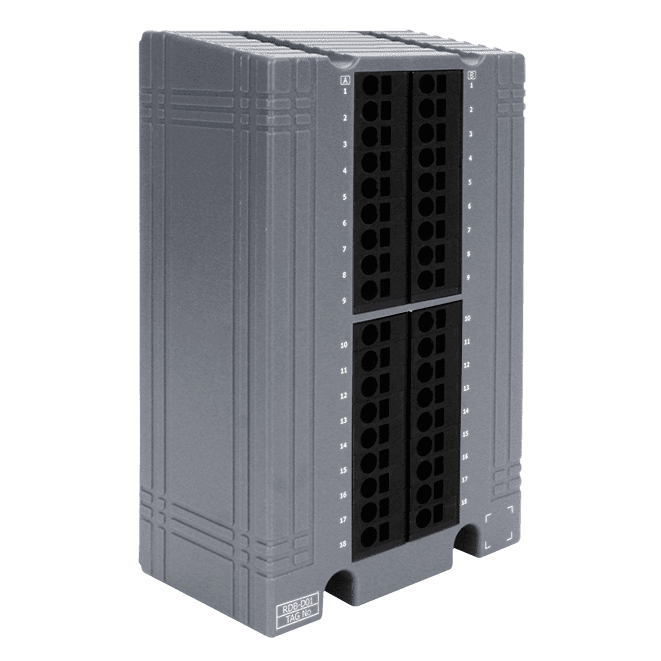

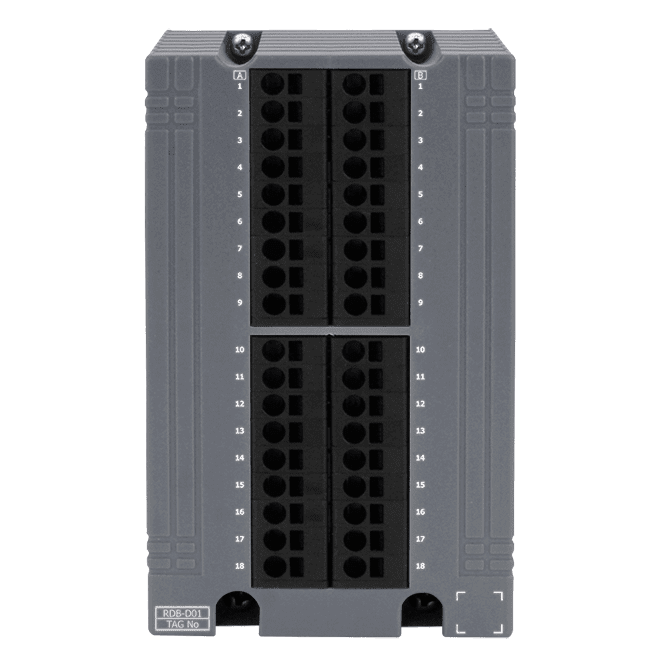

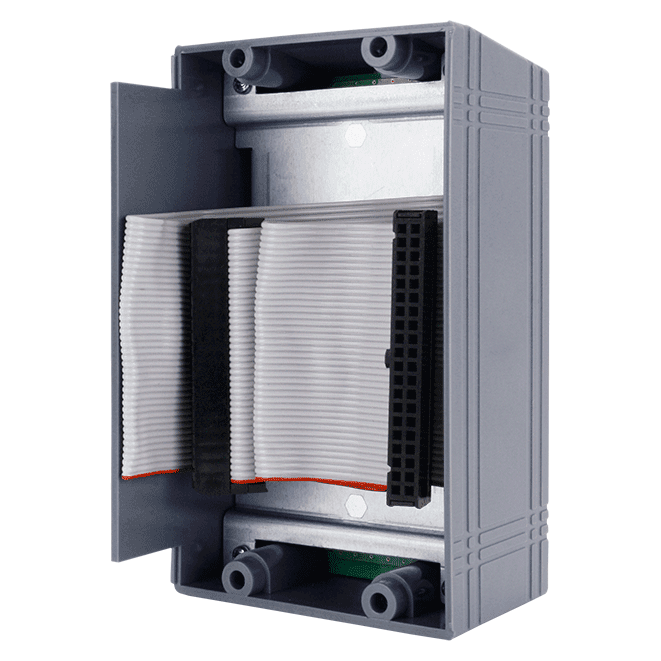

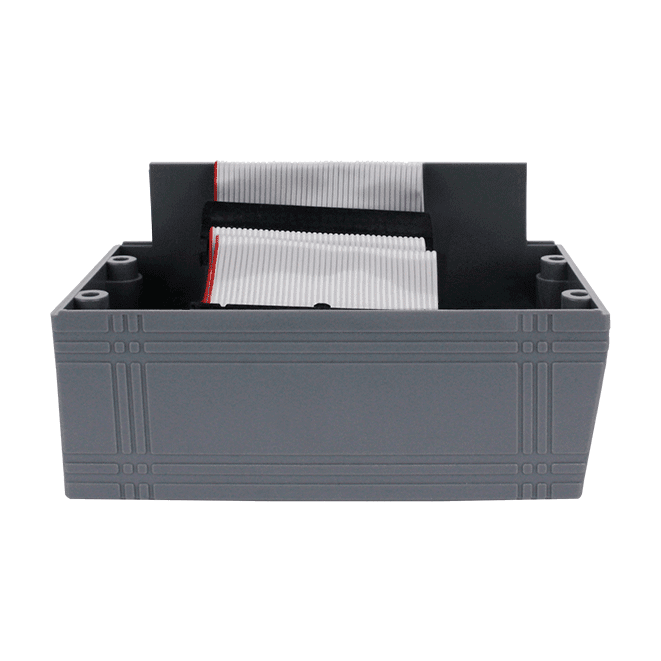

RDB-D01 Duplex I/O Termination Board, Spring Clamp for R-9017C2H
Spring clamp termination board for the duplex non-isolated analog current/voltage module of the R-9017C2H, with disconnection detection to raise alarms promptly if wiring comes loose.
- Spring clamp terminals for faster, simpler field wiring
- Termination board disconnection detection with timely alarm on separation from the I/O module
- Designed for the R-9017C2H duplex non-isolated analog current/voltage module
- 16 analog input channels
- Compact 65 x 115 x 60 mm dimensions
- Operating temperature -25 °C ~ +70 °C, humidity 5 ~ 95% RH non-condensing
162,00 € pro Stück
| 1–9 Stück | 162,00 € | |
|---|---|---|
| 10–30 Stück | 157,00 € | −3 % |
| ab 31 Stück | 154,00 € | −5 % |
Produktinformationen "RDB-D01 Duplex I/O Termination Board, Spring Clamp for R-9017C2H"
RDB-D01 CR is a duplex I/O termination board for the R-9017C2H. It terminates field wiring for the duplex non-isolated analog current/voltage module and uses spring clamp terminals, which speed up wiring and shorten system installation time.
The board includes termination board disconnection detection. If the board becomes disconnected from the I/O module, an alarm is triggered in good time, helping to reduce the risk of undetected faults in the signal path.
Suited to industrial environments where reliability and stability of wiring are critical, the board covers 16 analog input channels in a compact 65 x 115 x 60 mm housing, rated for -25 °C to +70 °C operation.
Applications
- Redundant analog current/voltage signal wiring in industrial automation systems
- Industrial environments requiring high reliability and stability of signal wiring
| Product type: | Termination board |
|---|---|
| Analog inputs: | 16 |
| Operating temperature: | -25 ~ +70 °C |
Technische Daten
| Analog Input | |
|---|---|
| Channels | 16 |
| Mechanical | |
| Dimensions (mm) | 65 x 115 x 60 |
| Environment | |
| Operating Temperature | -25 °C ~ +70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
