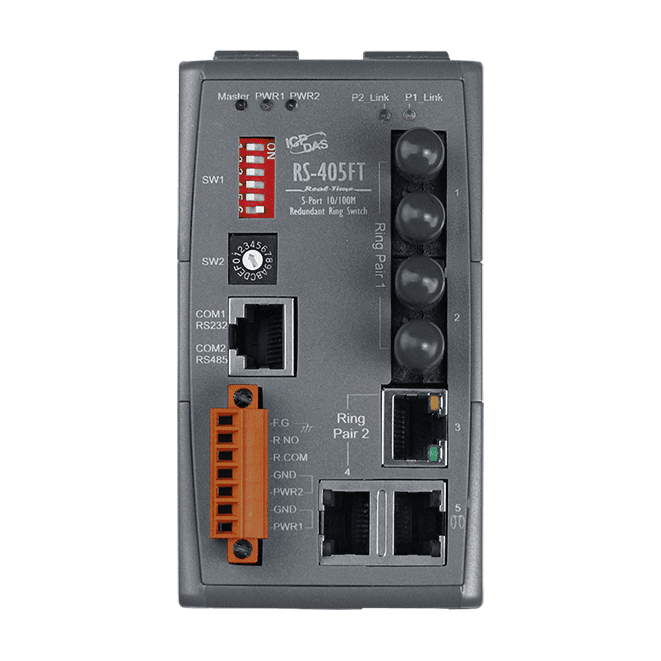

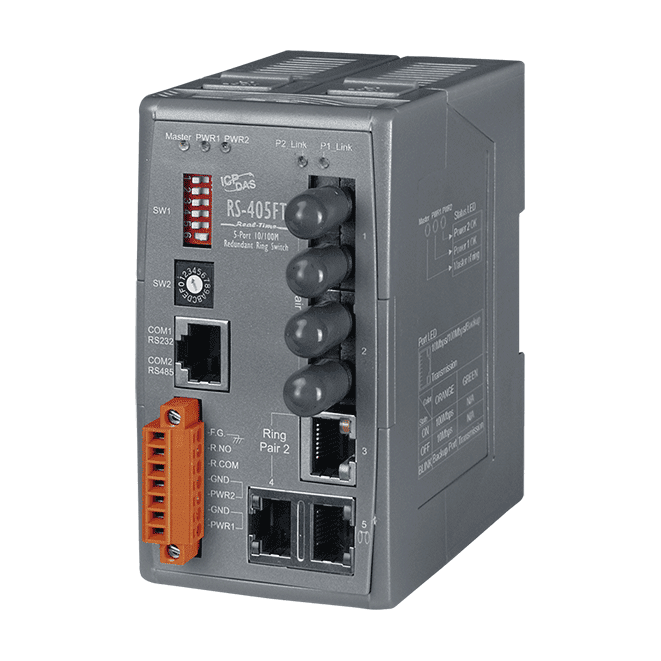

RS-405FT 5-Port Redundant Ring Switch, 3 x RJ-45, 2 x Multi-Mode ST Fibre
A 5-port industrial Ethernet redundant ring switch with three 10/100Base-TX RJ-45 ports and two 100Base-FX multi-mode ST fibre ports, for DIN-rail installation with dual DC power inputs.
- Built-in Cyber-Ring redundancy with STP support, for use in redundant ring topologies
- Recovers from a copper link failure in approximately 20 ms according to the source data
- Three 10/100Base-TX RJ-45 ports with auto-negotiation and automatic MDI/MDI-X crossover
- Two 100Base-FX ports with ST connectors for multi-mode fibre (50/125, 62.5/125 or 100/140 gm)
- Redundant +10 VDC to +30 VDC power inputs with reverse polarity protection and relay alarm output
- Modbus/RTU and Modbus/TCP remote monitoring, with Modbus OPC Server support
441,00 € pro Stück
| 1–9 Stück | 441,00 € | |
|---|---|---|
| 10–30 Stück | 428,00 € | −3 % |
| ab 31 Stück | 419,00 € | −5 % |
Produktinformationen "RS-405FT 5-Port Redundant Ring Switch, 3 x RJ-45, 2 x Multi-Mode ST Fibre"
The RS-405FT CR is a DIN-rail mounted industrial Ethernet switch that joins copper and fibre segments in a redundant ring. It combines three 10/100Base-TX RJ-45 ports with two 100Base-FX multi-mode ST fibre ports, and uses the built-in Cyber-Ring technique alongside STP to form a redundant ring topology.
Choose this model when a ring needs multi-mode fibre links and fast recovery from a copper link failure, which the source gives as approximately 20 ms. Redundant +10 VDC to +30 VDC power inputs and a relay alarm output help with monitoring power and network faults. Modbus/RTU and Modbus/TCP remote monitoring is supported, and the unit is configured via DIP switches rather than software.
The switch is rated for operation from 0 °C to +70 °C and is housed in a plastic casing with IP30 protection. Its 1500 Vrms isolation rating and CE, UKCA, FCC, RoHS and WEEE certifications are listed in the source data.
Applications
- Industrial control and automation networks
- Redundant Ethernet ring networks requiring multi-mode fibre links
| Product type: | Redundant ring switch |
|---|---|
| Interface: | RJ-45, RS-232/RS-485, ST multi-mode fibre |
| Protocol: | Modbus RTU, Modbus TCP |
| Relay outputs: | 1 |
| Ports: | 5 |
| Isolation: | 1500 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | 0 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| LED Indicators | |
|---|---|
| Status | 10/100M, Link/Act/Backup, Full duplex/Half duplex (Fiber Port) |
| Ethernet | |
| Ports | 3 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE802.3x |
| Processing Type | Store & forward wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Protocol | Modbus/RTU, Modbus/TCP |
| Redundant Strategy | STP, Ring (ICP DAS) |
| Isolation | 1500 Vrms 1 minute |
| DIP Switch | Yes, 1x Redundancy mode confi guration 1x Max. Recovery time selection |
| Fiber | |
| Ports | 2-port 100 Base-FX ST connector |
| Mode | Multi Mode |
| Fiber Cable | 50/125, 62.5/125 or 100/140 gm |
| Distance | 2 km, (62.5/125 gm recommended) for full duplex |
| Wavelength | 1300 or 1310 nm |
| TX Output | -20 dBm Min. -14 dBm Max. |
| RX Sensitivity | -32 dBm Max. |
| RX Overload | -8 dBm Max. |
| Budget | 12 dBm |
| COM Ports | |
| Ports | 1 x RS-232/RS-485 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Redundant Power Inputs | Yes |
| Consumption | 0.4 A @ 24 VDC |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 64 x 118 x 101 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | 0 °C ~ + 70 °C |
| Storage Temperature | -20 °C ~ + 85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
