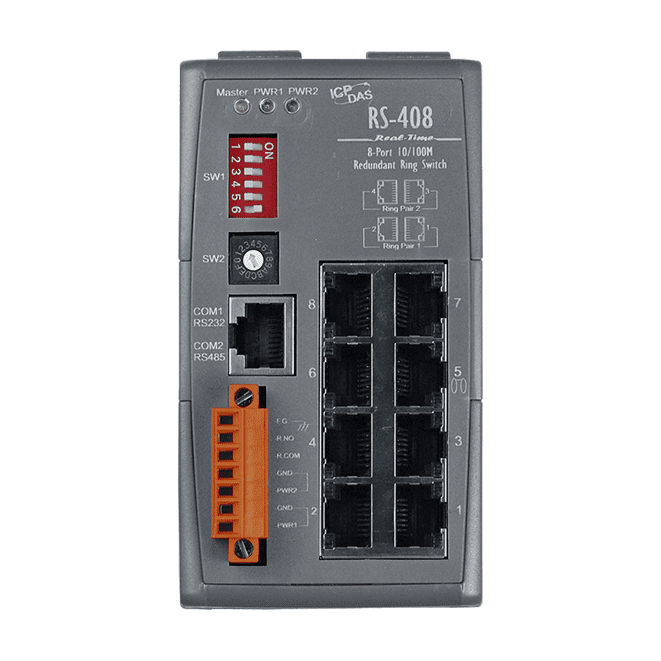

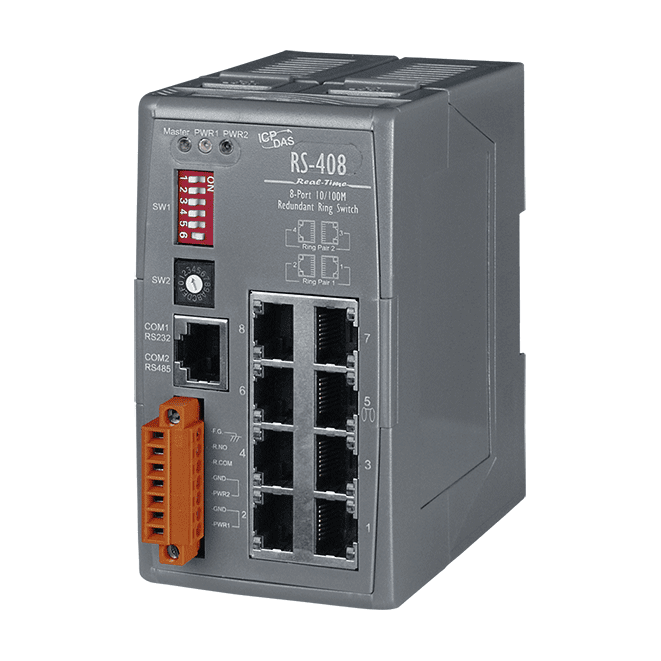

RS-408 Redundant Ring Ethernet Switch, 8-port 10/100Base-TX
8-port 10/100Base-TX Ethernet switch with Cyber-Ring redundant ring support, dual +10 VDC ~ +30 VDC power inputs, relay alarm output and a -40 °C ~ +75 °C operating range.
- Built-in Cyber-Ring redundant ring technique, with STP also listed as a redundancy strategy
- Redundant dual power inputs at +10 VDC ~ +30 VDC with reverse polarity protection
- Relay output raises a warning on power or network link failure, rated 2 A @ 30 VDC
- Auto MDI/MDI-X crossover and 10/100 Mbps auto negotiation on each port
- Store-and-forward switching with 2048 MAC addresses and 1 Mbit frame buffer memory
- Modbus/TCP and Modbus/RTU remote monitoring, with Modbus OPC Server support
397,00 € pro Stück
| 1–9 Stück | 397,00 € | |
|---|---|---|
| 10–30 Stück | 385,00 € | −3 % |
| ab 31 Stück | 377,00 € | −5 % |
Produktinformationen "RS-408 Redundant Ring Ethernet Switch, 8-port 10/100Base-TX"
The RS-408 CR is an 8-port Ethernet switch for building redundant ring networks on 10/100Base-TX copper. Its built-in Cyber-Ring technique allows several switches to be joined into one ring, with copper link failures typically detected and recovered in approximately 20 ms.
Setup is limited to DIP switch settings for redundancy mode and maximum recovery time, so no software configuration is needed. Two DC feeds can be connected to live +10 VDC ~ +30 VDC sources at the same time, and if one fails the other takes over. A relay output signals power or network link failures to the control system.
Remote status can be read over Modbus/TCP or Modbus/RTU, and the unit supports a Modbus OPC Server. Its -40 °C ~ +75 °C operating range and DIN-rail mounting suit cabinet installations in demanding environments.
Applications
- Redundant Ethernet ring networks in industrial automation
- Cabinet-mounted industrial Ethernet connectivity with Modbus monitoring
| Product type: | Redundant ring switch |
|---|---|
| Interface: | RJ-45 |
| Protocol: | Modbus/RTU, Modbus/TCP |
| Relay outputs: | 1 |
| Ports: | 8 |
| Isolation: | 1500 Vrms 1 minute |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -40 °C ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| LED Indicators | |
|---|---|
| Status | Power, 10/100M, Link/Act, Master |
| Ethernet | |
| Ports | 8 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u and 802.3x |
| Processing Type | Store & forward, wire speed switching |
| MAC Table | 2048 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Protocol | Modbus/RTU, Modbus/TCP |
| Redundant Strategy | STP, Ring (ICP DAS) |
| Isolation | 1500 Vrms 1 minute |
| DIP Switch | Yes, 1x Redundancy mode confi guration 1x Max. Recovery time selection |
| COM Ports | |
| Ports | 1 x RS-232/RS-485 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC |
| Redundant Power Inputs | Yes |
| Consumption | 0.3 A @ 24 VDC |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 64 x 118 x 98 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -40 °C ~ + 75 °C |
| Storage Temperature | -40 °C ~ + 85 °C |
| Humidity | 10 ~ 95% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
