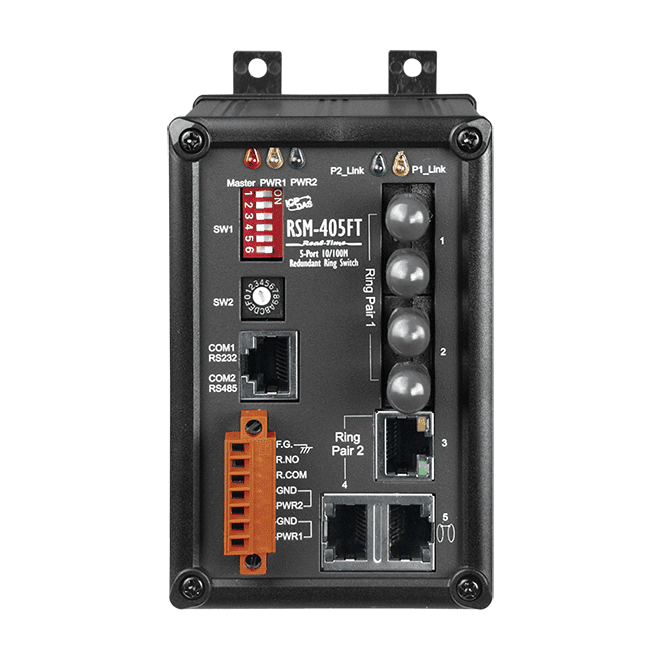

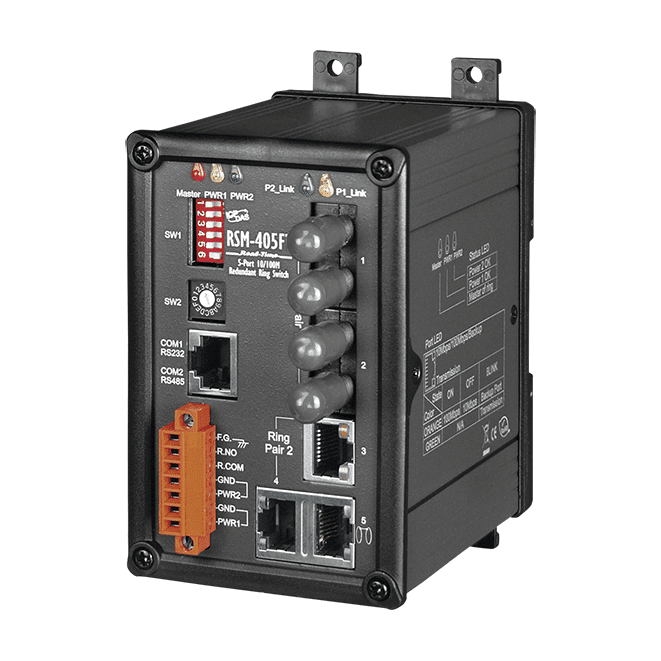

RSM-405FT Real-Time Redundant Ring Switch, 5-Port with 2-Fiber ST
Five-port industrial Ethernet ring switch with Cyber-Ring redundancy, two multi-mode ST fibre ports and redundant +10 ~ +30 VDC power inputs. Supplied with wall mount kit 4SNPNA010021G.
- Five ports: three shielded RJ-45 10/100Base-TX and two 100Base-FX multi-mode ST fibre ports
- Built-in Cyber-Ring redundancy; copper link failure recovery in approximately 20 ms
- Redundant +10 ~ +30 VDC power inputs with reverse polarity protection
- Relay output for power failure and link failure alarms
- Modbus/TCP and Modbus/RTU remote monitoring, plus Modbus OPC server support
- Store-and-forward switching with 1024 MAC addresses and 512 Kbit frame buffer memory
475,00 € pro Stück
| 1–9 Stück | 475,00 € | |
|---|---|---|
| 10–30 Stück | 461,00 € | −3 % |
| ab 31 Stück | 452,00 € | −5 % |
Produktinformationen "RSM-405FT Real-Time Redundant Ring Switch, 5-Port with 2-Fiber ST"
The RSM-405FT CR is a five-port industrial Ethernet switch built for redundant ring topologies. Three shielded RJ-45 copper ports (10/100Base-TX) sit alongside two 100Base-FX multi-mode ports with ST connectors, so the unit can join copper and fibre segments in the same ring. Its built-in Cyber-Ring technique lets several switches form a redundant ring, and a copper link failure is typically detected and recovered within approximately 20 ms.
Configuration is kept simple, with redundancy mode and maximum recovery time set through DIP switches rather than software. Two DC power inputs can be connected at the same time, and a relay output signals a power or network link failure. Modbus remote monitoring and a Modbus OPC server are supported for integration with supervisory systems.
The metal housing is rated IP30 and mounts on DIN-rail or wall. The ordering code includes the 4SNPNA010021G wall mount kit. The operating temperature range is 0 ~ +70 °C, which suits environments within that range.
Applications
- Industrial control and automation networks
- Redundant Ethernet ring topologies with copper and fibre segments
| Product type: | Redundant ring switch |
|---|---|
| Interface: | RJ-45, ST fibre |
| Protocol: | Modbus TCP |
| Ports: | 5 |
| Isolation: | 1500 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | 0 ~ +70 °C |
| Mounting: | DIN-rail / wall |
| Housing: | Metal |
Technische Daten
| LED Indicators | |
|---|---|
| Status | 10/100M, Link/Act/Backup, Full duplex/Half duplex (Fiber Port) |
| Ethernet | |
| Ports | 3 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE802.3x |
| Processing Type | Store & forward wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Protocol | Modbus/RTU, Modbus/TCP |
| Redundant Strategy | STP, Ring (ICP DAS) |
| Isolation | 1500 Vrms 1 minute |
| DIP Switch | Yes, 1x Redundancy mode confi guration 1x Max. Recovery time selection |
| Fiber | |
| Ports | 2-port 100 Base-FX ST connector |
| Mode | Multi Mode |
| Fiber Cable | 50/125, 62.5/125 or 100/140 gm |
| Distance | 2 km, (62.5/125 gm recommended) for full duplex |
| Wavelength | 1300 or 1310 nm |
| TX Output | -20 dBm Min. -14 dBm Max. |
| RX Sensitivity | -32 dBm Max. |
| RX Overload | -8 dBm Max. |
| Budget | 12 dBm |
| COM Ports | |
| Ports | 1 x RS-232/RS-485 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Redundant Power Inputs | Yes |
| Consumption | 0.4 A @ 24 VDC |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 73 x 118 x 105 (W x L x H) Wall mounting: 73 x 132 x 105 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | 0 °C ~ + 70 °C |
| Storage Temperature | -20 °C ~ + 85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
