RSM-408 Redundant Ring Switch, 8-port 10/100Base-TX, Dual DC Power Input
8-port 10/100Base-TX redundant ring switch with built-in Cyber-Ring recovery, dual +10 to +30 VDC power inputs and -40 to +75 °C operating range for DIN-rail or wall mounting.
- Eight RJ-45 10/100Base-TX ports with auto negotiation and automatic MDI/MDI-X crossover
- Built-in Cyber-Ring redundancy, with typical copper link failure recovery in approximately 20 ms
- Redundant dual DC power inputs, +10 VDC ~ +30 VDC, with reverse polarity protection and relay power failure alarm
- Store-and-forward switching with 2048 MAC addresses, 1 Mbit frame buffer memory and 3.2 Gbps memory bandwidth
- Modbus/RTU and Modbus/TCP remote monitoring with Modbus OPC Server support
- Configured with DIP switches, with no software setting required
431,00 € pro Stück
| 1–9 Stück | 431,00 € | |
|---|---|---|
| 10–30 Stück | 418,00 € | −3 % |
| ab 31 Stück | 410,00 € | −5 % |
Produktinformationen "RSM-408 Redundant Ring Switch, 8-port 10/100Base-TX, Dual DC Power Input"

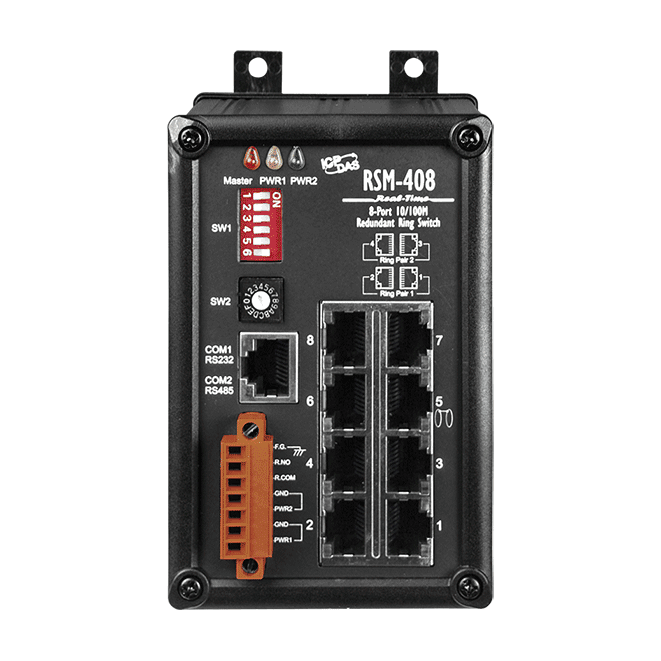

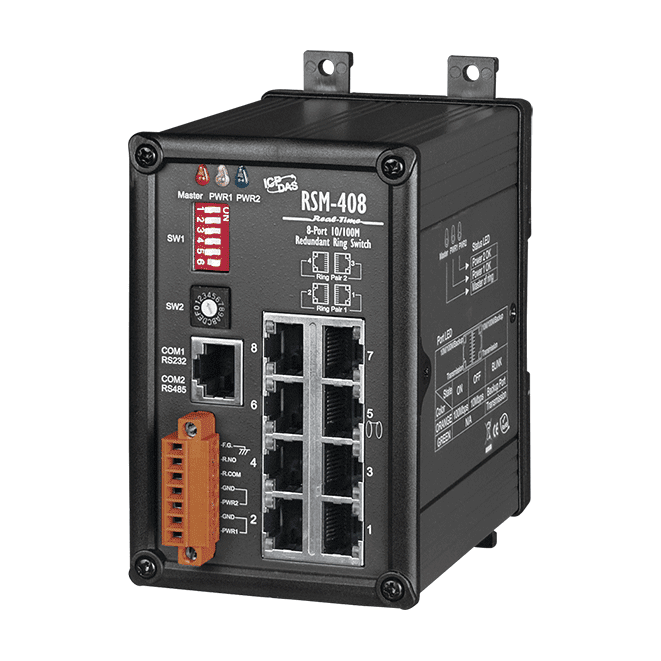

The RSM-408 CR is an 8-port Industrial Ethernet redundant ring switch for 10/100Base-TX networks. Each RJ-45 port negotiates between 10 and 100 Mbps and adapts automatically between MDI and MDI-X wiring, so cabling is simple. Its built-in Cyber-Ring technique allows several switches to form a redundant ring, and a copper link failure is typically detected and recovered within approximately 20 ms.
Set-up requires no software. Redundancy mode and maximum recovery time are chosen with DIP switches, and the unit is supplied ready for use once the DIP settings are made. Two DC inputs can be connected to live sources at the same time, so if one fails the other keeps the switch running. A relay output raises a warning when power or network link fails. Modbus/RTU and Modbus/TCP support allows remote monitoring, including through the Modbus OPC Server.
The metal housing carries an IP30 rating and is rated for operation from -40 °C to +75 °C. The RSM-408 CR is supplied with the 4SNPNA010021G wall mount kit, and it can also be installed on a DIN rail.
Applications
- Redundant industrial Ethernet ring networks
- Remote monitoring of switch status over Modbus
| Product type: | Redundant ring switch |
|---|---|
| Interface: | RJ-45 |
| Protocol: | Modbus RTU, Modbus TCP |
| Ports: | 8 |
| Isolation: | 1500 Vrms |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Technische Daten
| LED Indicators | |
|---|---|
| Status | Power, 10/100M, Link/Act, Master |
| Ethernet | |
| Ports | 8 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u and 802.3x |
| Processing Type | Store & forward, wire speed switching |
| MAC Table | 2048 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Protocol | Modbus/RTU, Modbus/TCP |
| Redundant Strategy | STP, Ring (ICP DAS) |
| Isolation | 1500 Vrms 1 minute |
| DIP Switch | Yes, 1x Redundancy mode confi guration 1x Max. Recovery time selection |
| COM Ports | |
| Ports | 1 x RS-232/RS-485 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC |
| Redundant Power Inputs | Yes |
| Consumption | 0.3 A @ 24 VDC |
| Alarm Output | Yes, Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 73 x 118 x 103 (W x L x H) Wall mounting: 73 x 132 x 103 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | -40 °C ~ + 75 °C |
| Storage Temperature | -40 °C ~ + 85 °C |
| Humidity | 10 ~ 95% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
