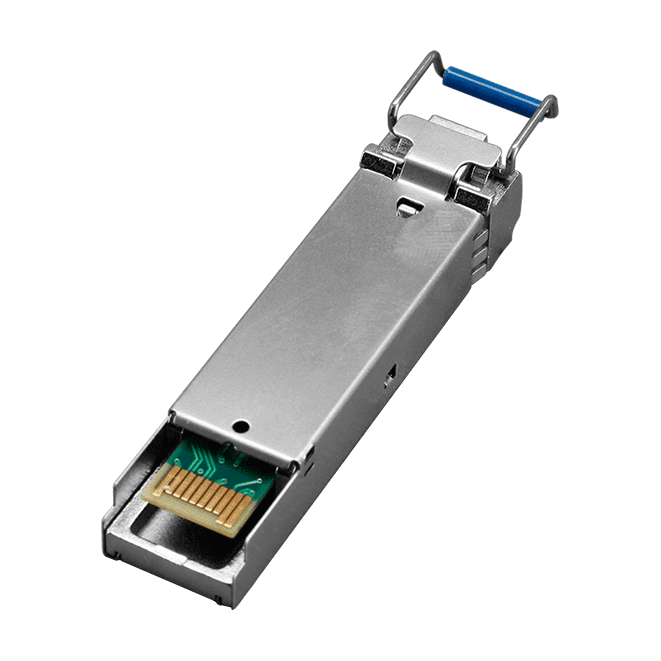

SFP-1G13S-LX SFP Module, 1000Base-LX Single-mode 1310 nm 10 km LC
1000Base-LX SFP module with an LC connector for single-mode fibre links up to 10 km at 1310 nm. Hot-pluggable for fibre switch expansion, rated -40 ~ +85 °C.
- 1000Base-LX, single-mode fibre at 1310 nm wavelength
- 10 km rated distance
- LC fibre connector
- Hot-pluggable SFP form factor for fibre switches
- Operating temperature -40 ~ +85 °C
- Listed with CE, UKCA, FCC, RoHS and WEEE certifications
55,00 € pro Stück
| 1–9 Stück | 55,00 € | |
|---|---|---|
| 10–30 Stück | 53,00 € | −4 % |
| ab 31 Stück | 52,00 € | −5 % |
Produktinformationen "SFP-1G13S-LX SFP Module, 1000Base-LX Single-mode 1310 nm 10 km LC"
The SFP-1G13S-LX is a 1000Base-LX small form-factor pluggable module for fibre switches. It uses a single-mode 1310 nm optical interface with an LC connector and is specified for a distance of 10 km, making it suitable for extending Ethernet links over fibre.
The module supports hot plugging, so it can be fitted or replaced in a live fibre switch without powering down the host. ICP DAS positions SFP modules as a way to extend Ethernet wiring while helping to reduce EMI and noise interference.
Order code SFP-1G13S-LX CR is listed with CE, UKCA, FCC, RoHS and WEEE certifications and an operating temperature range of -40 ~ +85 °C.
Applications
- Extending Ethernet links over single-mode fibre in fibre switch installations
- Fibre uplinks for industrial Ethernet switches with SFP slots
| Product type: | SFP module |
|---|---|
| Interface: | LC |
| Operating temperature: | -40 ~ +85 °C |
Technische Daten
| Fiber | |
|---|---|
| Connector | LC |
| Speed | 1000Base-LX |
| Mode | Single-mode |
| Distance | 10 km |
| Wavelength | 1310 nm |
| Environment | |
| Operating Temperature | -40 ~ +85 °C |
Technische Daten laut Hersteller. Änderungen vorbehalten.
