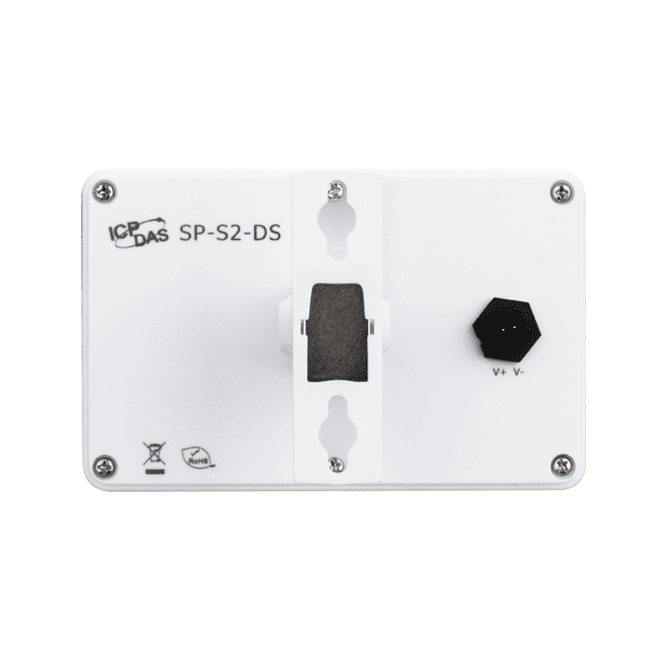

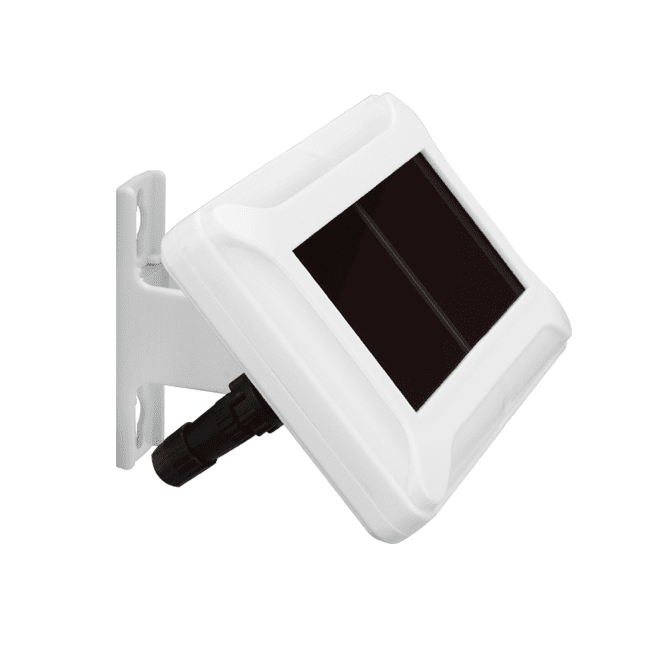

SP-S2-DS Dye-Sensitized Cell Charging Module, Low-Light Solar Power
Dye-sensitised cell charging module that generates power in dim indoor light, with an IP55 rating and wall or magnetic mounting for emergency SOS systems.
- Dye-sensitised cell technology that generates electricity in dim and indoor light
- Conversion efficiency less affected by the angle of light
- IP55 rated waterproof housing

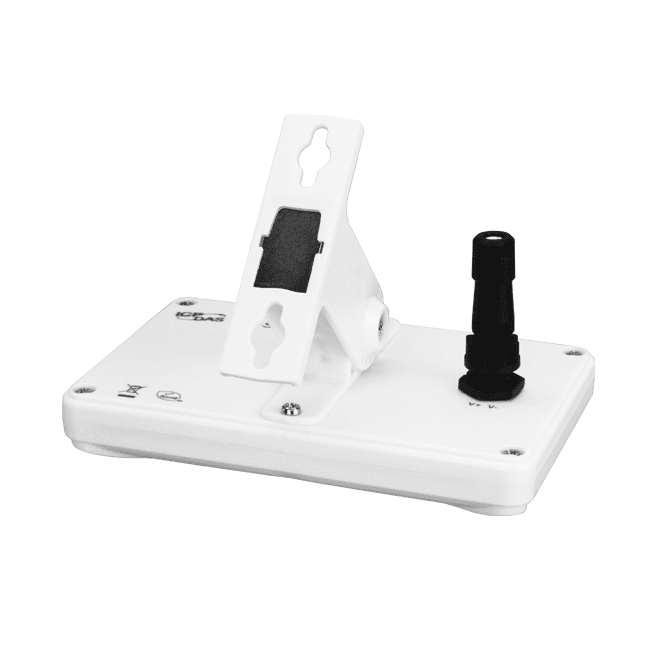

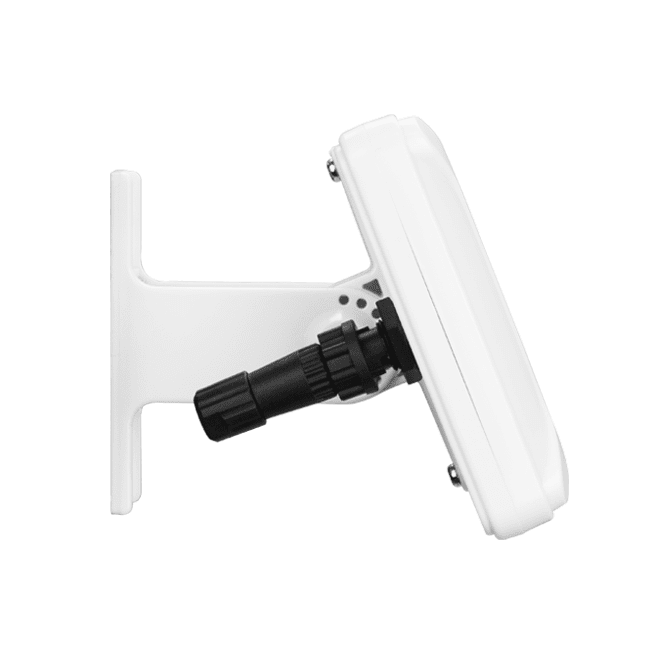

- Wall-mount or magnetic-mount installation options
- Compact 133 x 85 x 84 mm form factor
- Operating temperature range of -25 ~ +60 °C
124,00 € pro Stück
| 1–9 Stück | 124,00 € | |
|---|---|---|
| 10–30 Stück | 121,00 € | −2 % |
| ab 31 Stück | 118,00 € | −5 % |
Produktinformationen "SP-S2-DS Dye-Sensitized Cell Charging Module, Low-Light Solar Power"
The SP-S2-DS CR is a dye-sensitised cell charging module based on third-generation solar cell technology. Unlike conventional silicon cells, it keeps generating electricity in low-light conditions such as indoor lighting, and its conversion efficiency is less sensitive to the angle of incoming light.
Output is strongest indoors and near windows, so the module suits locations where ambient light is limited. Paired with emergency products, it harvests energy from everyday lighting to support wireless light-charged emergency SOS systems while helping to reduce general power consumption.
- Power ≥1.67 mW, Voc 0.55 ~ 0.65 V, Isc ≥3.51 mA
- Dimensions 133 x 85 x 84 mm (W x L x H)
- Operating temperature -25 ~ +60 °C, storage -20 ~ +45 °C
- Humidity 10 ~ 90% RH, non-condensing
- RoHS and WEEE compliant
Applications
- Wireless light-charged emergency SOS systems
| Product type: | Charging module |
|---|---|
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | Wall / Magnetic |
| Housing: | IP55 |
Technische Daten
| Power | |
|---|---|
| Power (mW) | ≥1.67 |
| Voc (V) | 0.55 ~ 0.65 |
| Isc (mA) | ≥3.51 |
| Mechanical | |
| Dimensions (mm) | 133 x 85 x 84(W x L x H) |
| Installation | Wall-mount / Magnet adsorption |
| Environment | |
| Operating Temperature | -25℃ ~ +60℃ |
| Storage Temperature | -20 ~ +45°C |
| Humidity | 10 ~ 90% RH(Non-condensing) |
Technische Daten laut Hersteller. Änderungen vorbehalten.
