SST-900B 900 MHz RF Wireless Modem, 1-port RS-232/485
900 MHz RF wireless modem with one RS-232/485 serial port for linking a host to remote sensors, with 16 selectable channels and DIN-rail mounting.
- Half-duplex operation up to 115200 bps over 900 MHz ISM band
- 16 RF channels, each selectable from 16 group IDs
- Typical line-of-sight range of 700 m
- Peer-to-peer and multi-point network structures
- 1 x RS-232 or RS-485 port with internal self-tuner ASIC on RS-485
- Configuration via external switch
353,00 € pro Stück
| 1–9 Stück | 353,00 € | |
|---|---|---|
| 10–30 Stück | 342,00 € | −3 % |
| ab 31 Stück | 335,00 € | −5 % |
Produktinformationen "SST-900B 900 MHz RF Wireless Modem, 1-port RS-232/485"

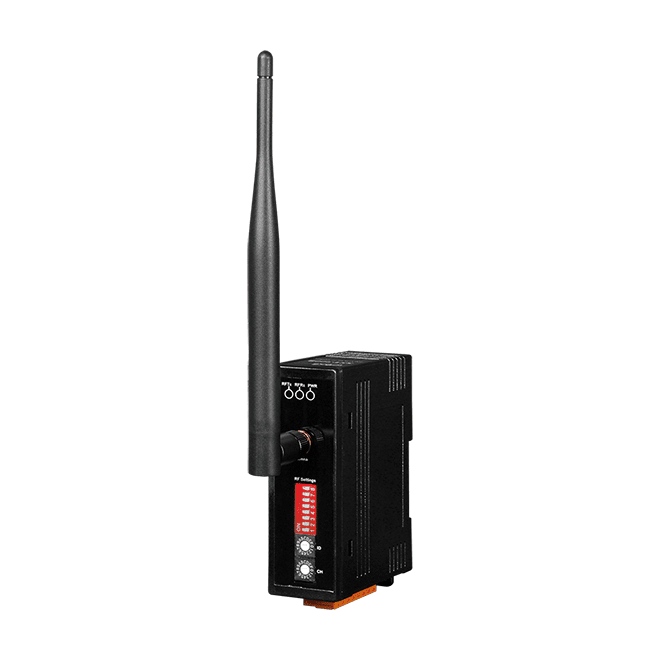

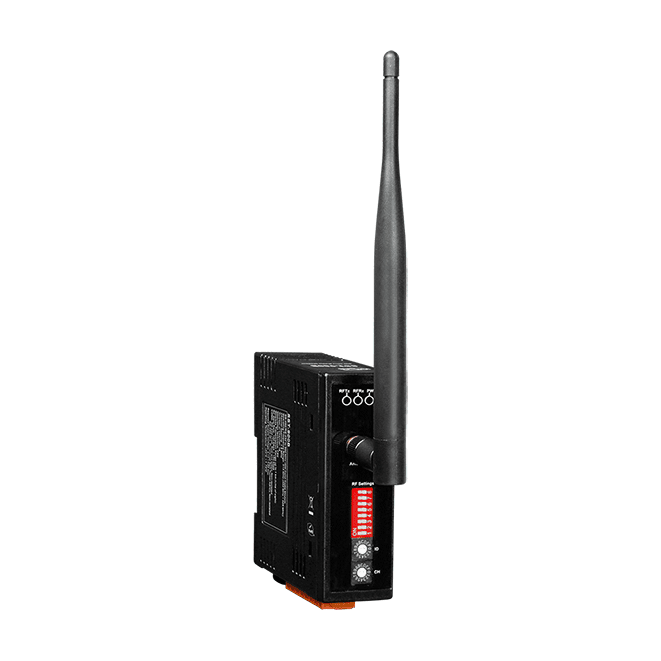

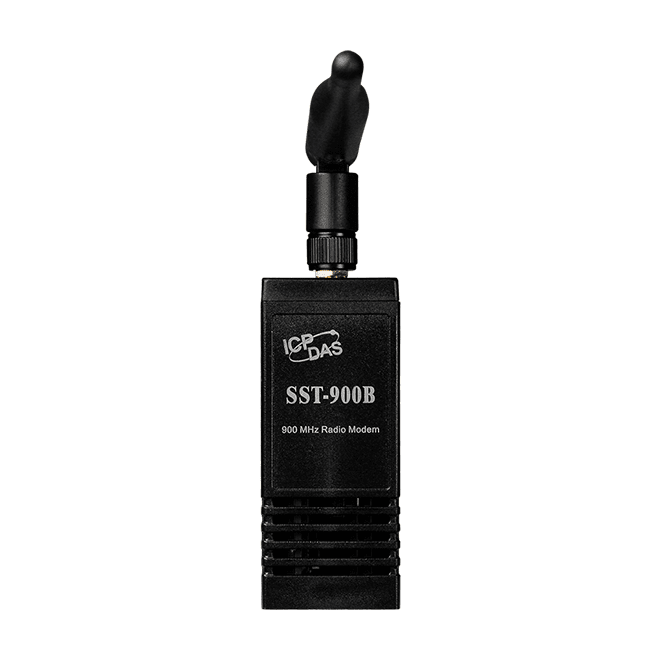

The SST-900B CR is a 900 MHz RF modem that extends a serial RS-232 or RS-485 link without cabling. It suits data acquisition and control schemes where a host must communicate with remote sensors, and where running cable is impractical or costly.
The modem operates across 902-928 MHz with 16 RF channels, and each channel can be assigned one of 16 group IDs, so several networks can share the same site. Half-duplex operation runs at up to 115200 bps, with a typical line-of-sight range of 700 m. Both peer-to-peer and multi-point topologies are supported.
An internal self-tuner ASIC on the RS-485 port and a configuration switch simplify setup. The unit accepts +10 VDC to +30 VDC, draws 0.48 W, and is designed for DIN-rail mounting in a plastic housing rated for -25 to +75 °C.
Applications
- Data acquisition between a host and remote sensors
- Remote control applications
- Installations where cable wiring is inconvenient
| Product type: | RF wireless modem |
|---|---|
| Interface: | RS-232/RS-485 |
| Ports: | 1 |
| Isolation: | Non-isolated (RS-485) |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 8-bit microprocessor |
| LED Indicators | |

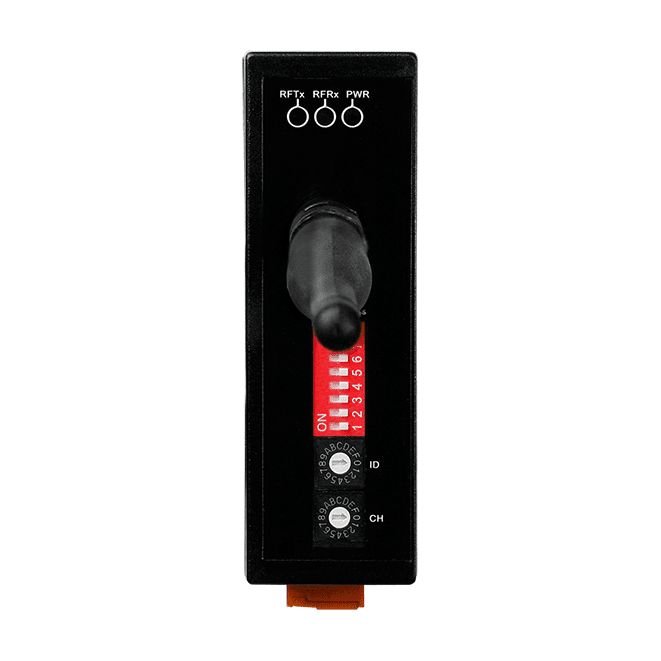

| Status | 1 x Power 1 x RF TxD 1 x RF RxD |
| RF | |
| Antenna | 2 dBi Omni-Directional antenna |
| Channels | 16 |
| Data Transmission Rate | 150 kbps |
| Transmission Power | Up to 20 dBm |
| Transmission Distance (LoS) | 700 m (Typical) |
| COM Ports | |

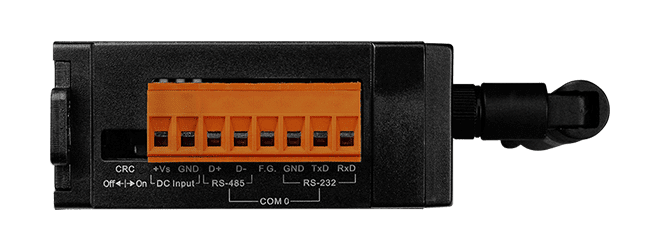

| Ports | 1 x RS-232 (TxD, RxD and GND) 1 x RS-485 (DATA+, DATA-; internal self-tuner ASIC; Non-isolated) |
| Baud Rate | 1200 ~ 115200 bps |
| Parity | None, Even, Odd |
| Data Bit | 8 |
| Stop Bit | 1 |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 0.48 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 84 x 108 x 33 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
